Citrix SD-WAN Platforms
Port Description
0/1, 0/2 10/100/1000 Base-T copper Ethernet
management ports (RJ45)
1/1, 1/2, 1/3, 1/4 1000 Base-TX Fail-To-Wire
10/1, 10/2, 10/3, 10/4 10G Base-SR Fail-To-Wire
10/5, 10/6, 10/7, 10/8 10G SFP+

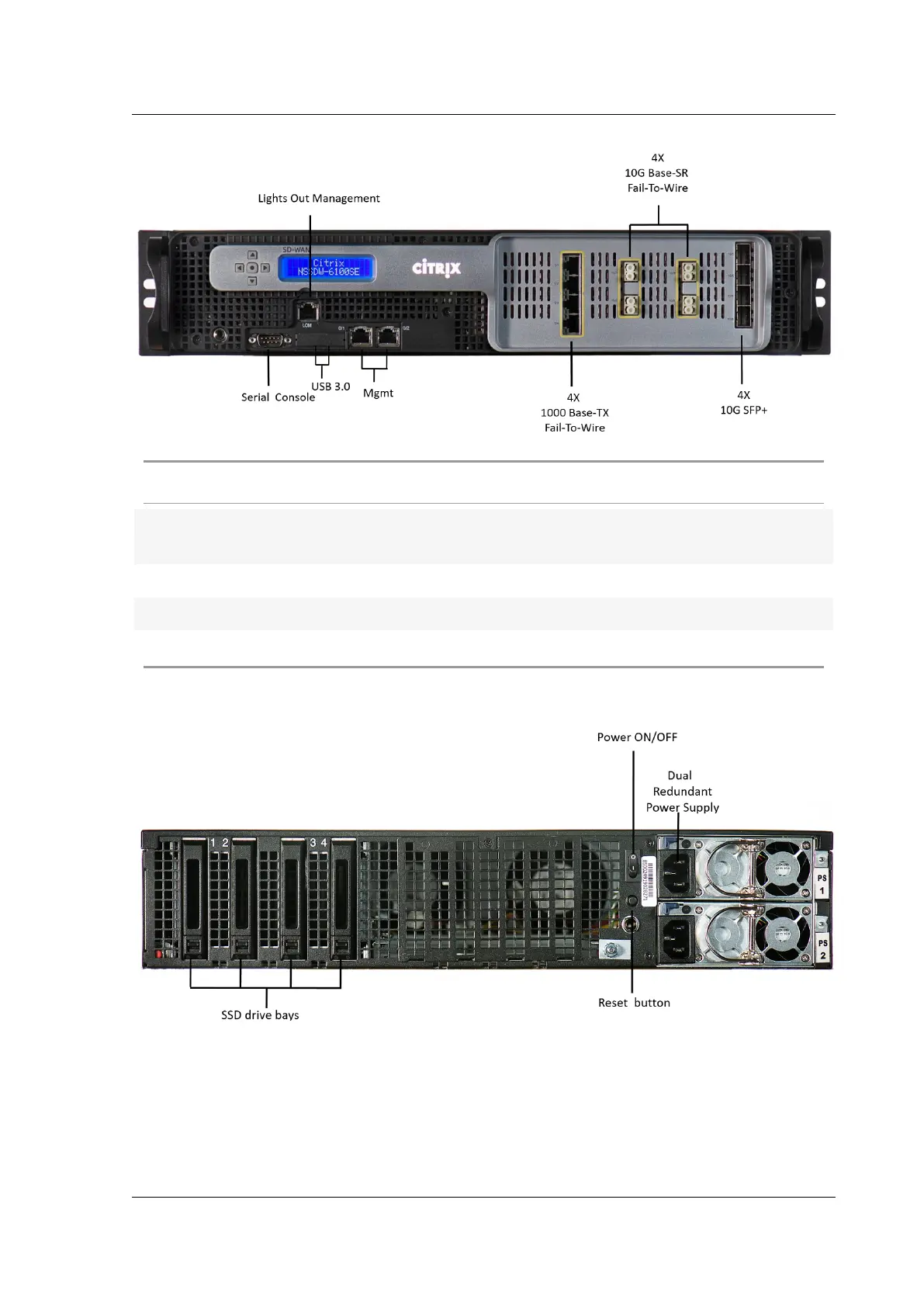

The following components are visible on the back panel of the Citrix SD-WAN 6100 SE/PE appliance:
For Citrix SD-WAN 6100 SE [SSD Configuration]
• Drive bay 3 - 2.5” Boot drive SSD with 480 GB capacity
• Drive bay 1, 2, 4 - 2.5” SSD Plastic Drive Tray “Fillers- Dummy”
For Citrix SD-WAN 6100 PE [SSD Configuration]
