Citrix SD-WAN Platforms
Note
Earlier, 128 virtual paths were supported in Azure. With 11.2 release onwards, 256 virtual parts
are supported with SD-WAN SE in Azure.

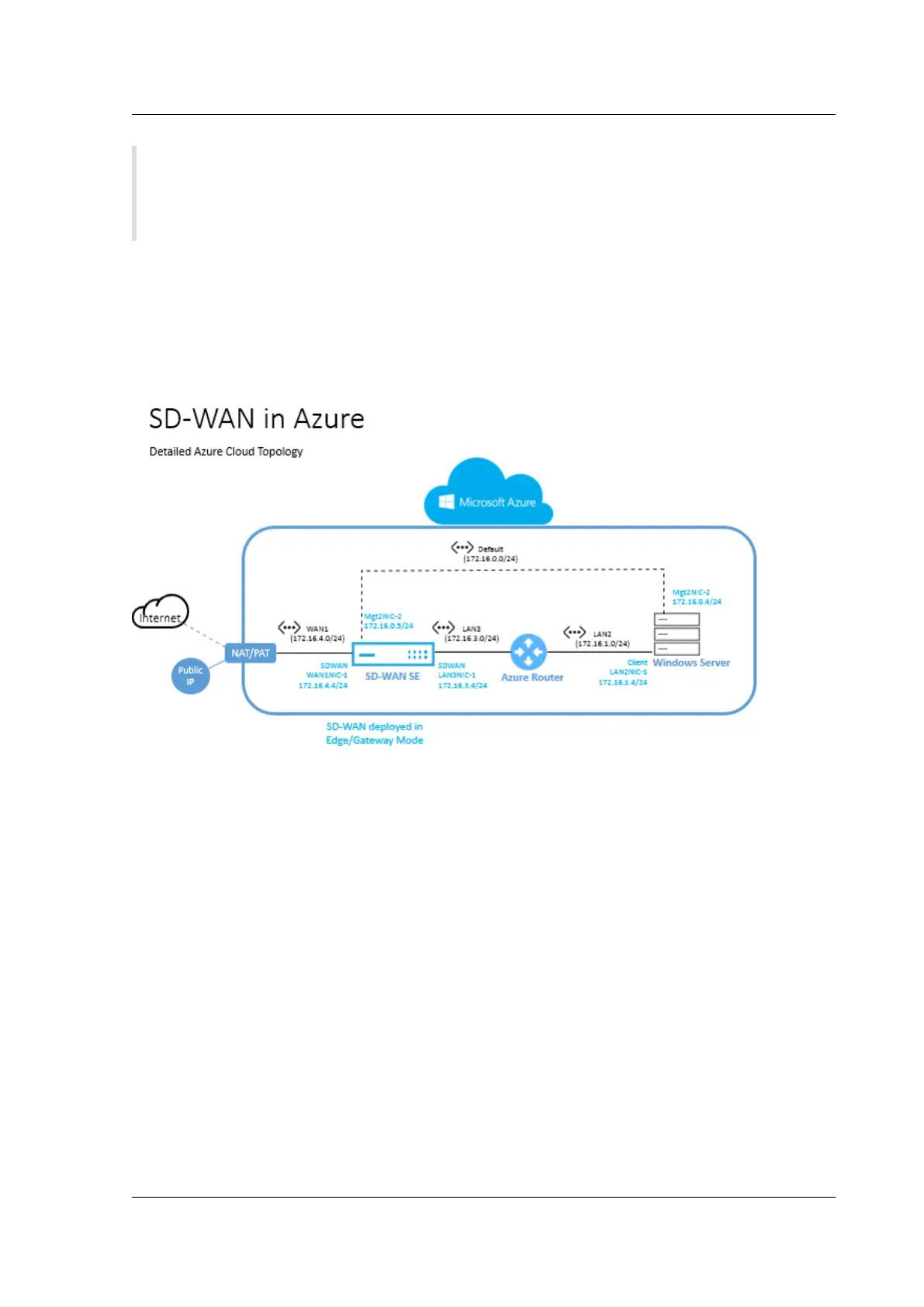

Topology - SD-WAN in Azure
Citrix SD-WAN Standard Edition can only be deployed in Gateway deployment mode in Azure. A Public
IP address (Static/Dynamic) is assigned to the WAN facing interface of SD-WAN and one public IP is
assigned to the management interface to access the management interface in Azure.
Use case
An Azure VM is deployed within a specified region and can be connected to multiple branch locations
through MPLS, Internet, or 4G/LTE. Within a Virtual Network (VNET) infrastructure, SD-WAN Standard
Edition VM is deployed in Gateway mode. The VNET has routes towards the Azure Gateway. The SD-
WAN instance has a route towards the Azure Gateway for internet connectivity.
Connectivity between Data Center, Branch, and Cloud is achieved by using dierent transports meth-
ods utilizing multiple WAN paths simultaneously.
