Verify FLOWS on the 210 Home Branch
On the Home Branch
LAN to WAN (From Branch towards MCN)
• Source IP – 192.168.5.160
• Dest IP – 192.168.100.5
• Proto/IPP – ICMP
WAN to LAN (From MCN towards Branch)
• Dest IP – 192.168.5.160
• Source IP – 192.168.100.5
• Proto/IPP – ICMP
• Verify that the service used is Virtual Path and the service name is that if between the MCN (Out-
post VM) to the Branch 210
• Also check the path will display the current best path that is taking the ICMP traic through the
Virtual Path (Which is WL1 on the 210 to the only existing link at the MCN side)
Note

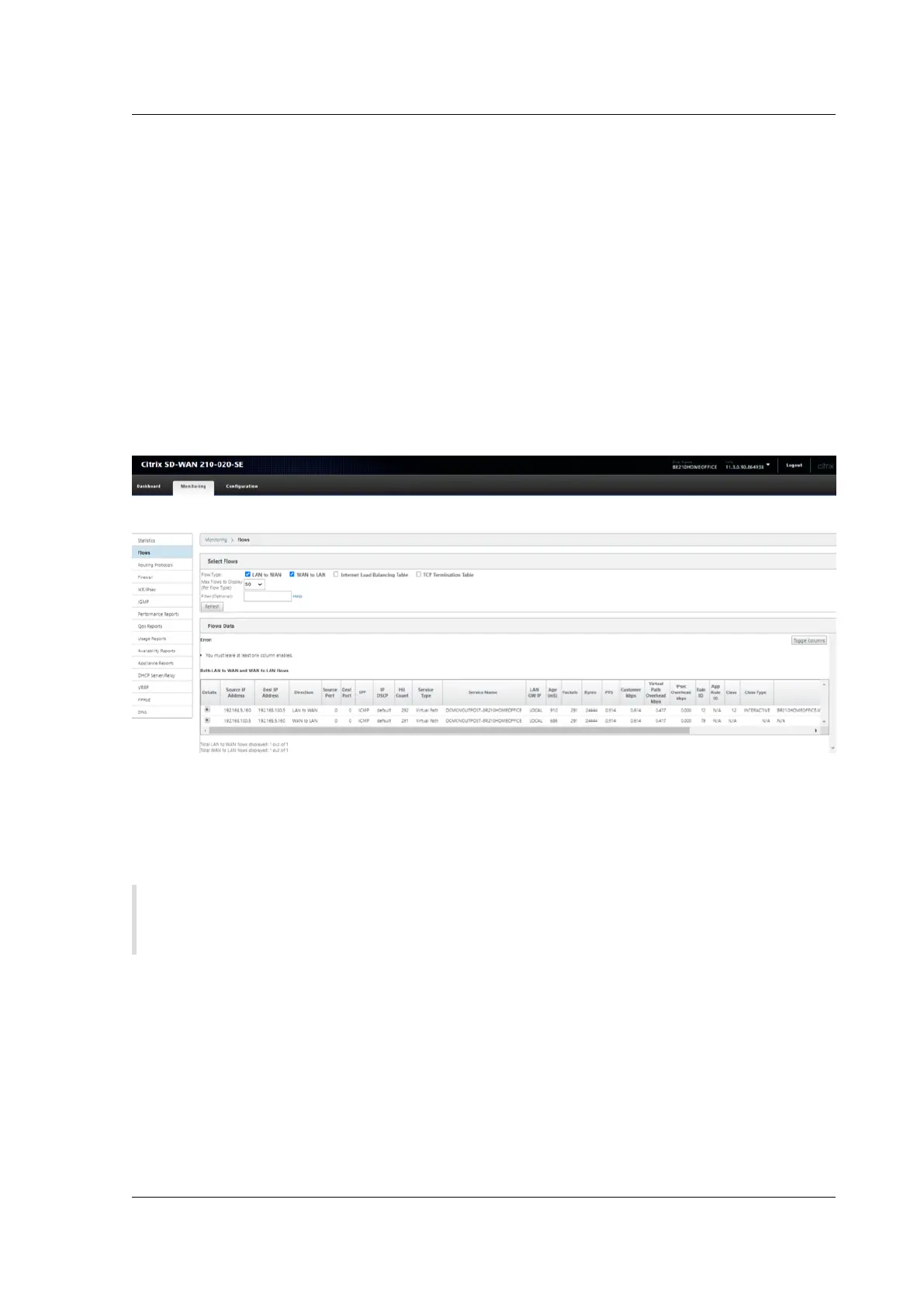

Check the current path in the “Path” Column in the below snapshot.
