Citrix SD-WAN Platforms
Warning: SD-WAN 4000/5000 appliances do not support 1G SFP transceivers from vendors
other than Citrix Systems. Attempting to install third-party 1G SFP transceivers on your
SD-WAN 4000/5000 appliance voids the warranty. Do not install the transceivers with the
cables attached. Doing so can damage the cable, the connector, or the optical interface of the
transceiver.
To install a 1G SFP transceiver
1. Remove the 1G SFP transceiver carefully from its box.
Danger: Do not look directly into fiber optic transceivers or cables. They emit laser beams that
can damage your eyes.

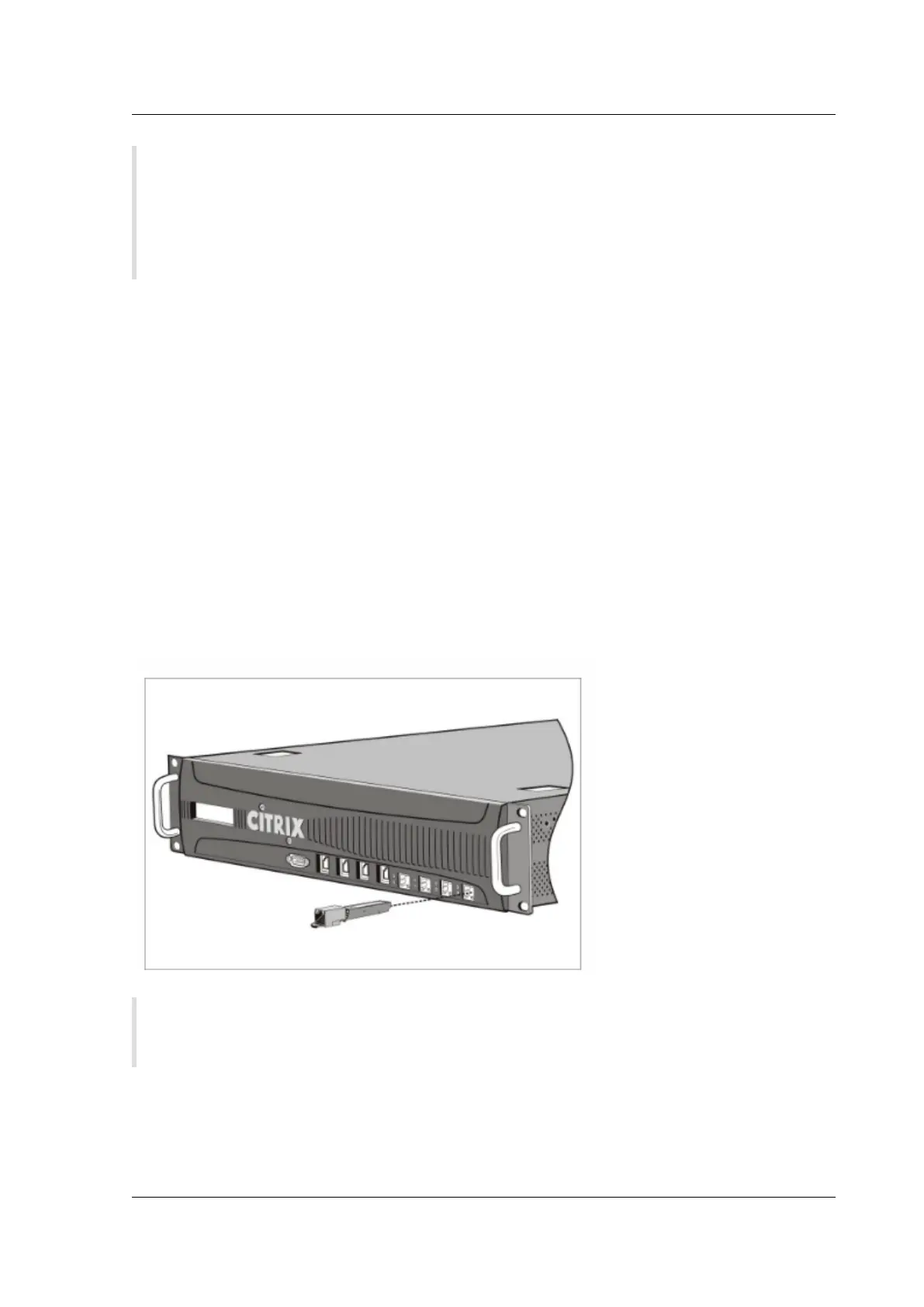

2. Align the 1G SFP transceiver to the front of the 1G SFP transceiver port on the front panel of the
appliance, as shown in the following figure.
3. Hold the 1G SFP transceiver between your thumb and index finger and insert it into the 1G SFP
transceiver port, pressing it in until you hear the transceiver snap into place.
4. Lock the transceiver.
5. Verify that the LED is green and blinks twice, which indicates that the transceiver is functioning
correctly.
6. If you are using a fiber 1G SFP transceiver, do not remove the dust caps attached to the
transceiver and the cable until you are ready to insert the cable.
Note
The illustration in the following figures might not represent your actual appliance.
