Citrix SD-WAN Platforms
LED Description
Factory Reset: Flashing blue and green
(alternatively)
Soware power cycle: Flashing green for ~15
seconds (shutdown time) and then flashing
blue for ~25 seconds and then solid green
Wi-Fi OFF: Not using Wi-Fi
Flashing green: Wi-Fi is configured but not in
use
Solid green: Wi-Fi is actively used
LTE OFF: No signal
1 bar: Poor
2 bar: Fair
3 bar: Good
4 bar: Excellent
SIM Card Slots Two Mini (2FF) size SIM slots. Use an adapter to
use Micro (3FF) and Nano (4FF) size SIMs. Snap
the smaller SIM into the adapter. Order the
adapter as an FRU.
Note: At any given time, only one SIM is active.
Power ON the appliance and then insert the
SIM card.
LTE LTE antenna male connector
Note

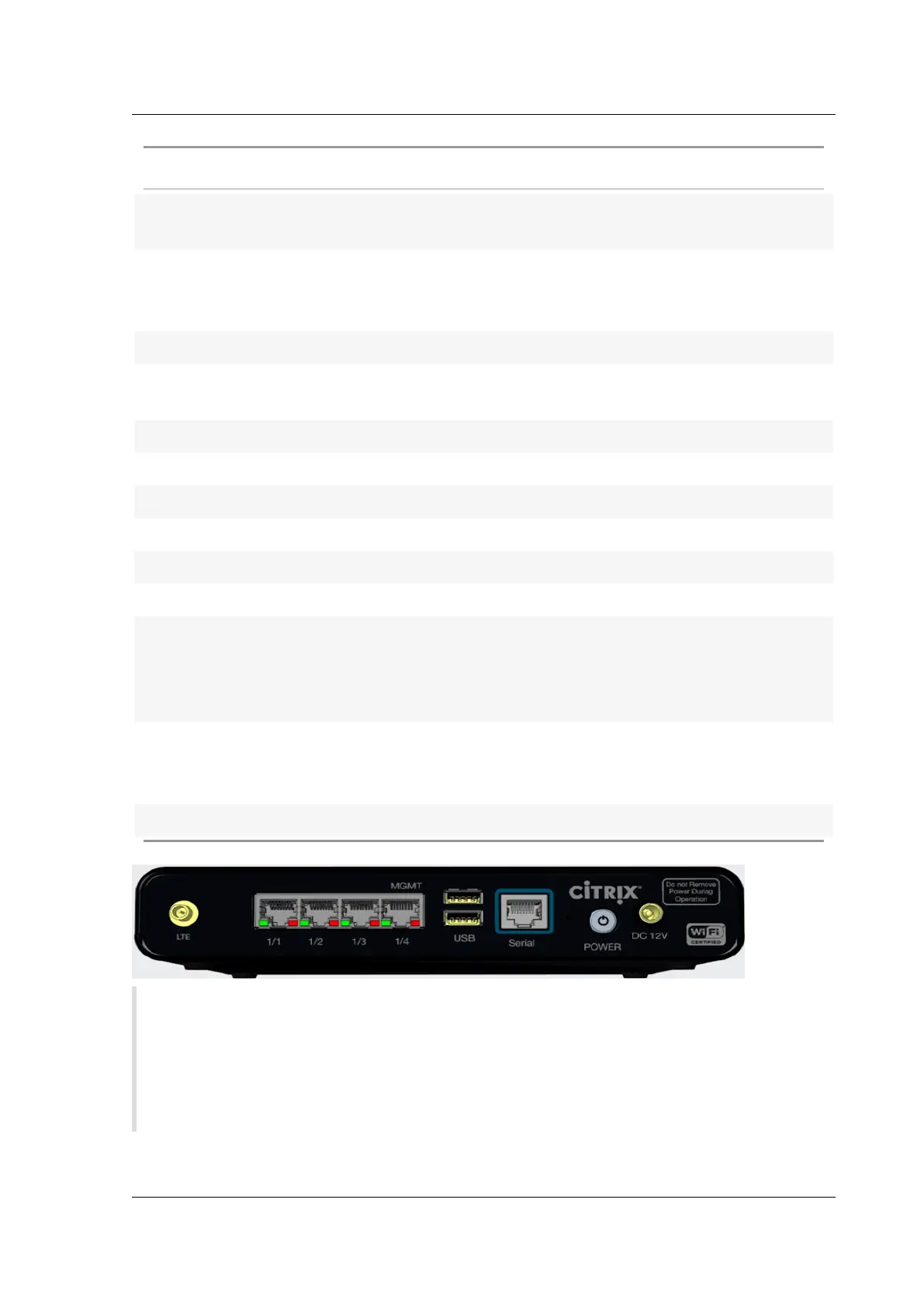

Port 1/1 is the default LAN port and port 1/2 is the default WAN port. Port 1/3 is disabled. The
default LAN IP on port 1/1 is 192.168.101.1, it also runs a default DHCP server that provides LAN
clients with IP address pool starting from 192.168.0.50 to 192.168.0.250. For LTE appliances, the
LTE SIM slot is also the default WAN port. The WAN ports are configured as DHCP clients.
© 1999-2021 Citrix Systems, Inc. All rights reserved. 58
