Citrix SD-WAN Platforms
The power button switches main power (the power to the power supply) on or o. Press the switch
for two seconds to turn o the power.
The reset button restarts the appliance.
• apA, apB, and apC -Indicate network activity on the LAN and WAN ports.
• Bypass port— Indicates the status of the third pair of bypass ports.
• Power— When blinking, indicates that the appliance is doing factory reset.
The LEDs provide critical information about dierent parts of the appliance.
• Power indicator —Indicates that a power supply unit has failed.
• Information LED—Indicates the following:
Status Description
Continuously on orange Data ports are in bypass mode (FTW)
Continuously ON and red. The appliance is overheated. (This might be a
result of cable congestion.)
Slow blink - 1 blink per second Fan failure.
Fast blink- 4 blinks per second Power failure.
Solid blue Local UID has been activated. Use this function
to locate the server in a rack mount
environment.
Fast blink - 3–4 blinks per second Remote UID is on. Use this function to identify
the server from a remote location.
Solid Green Appliance is operational.
Note
The terms FTW and bypass are inter-exchangeable. The bypass port is the FTW port.

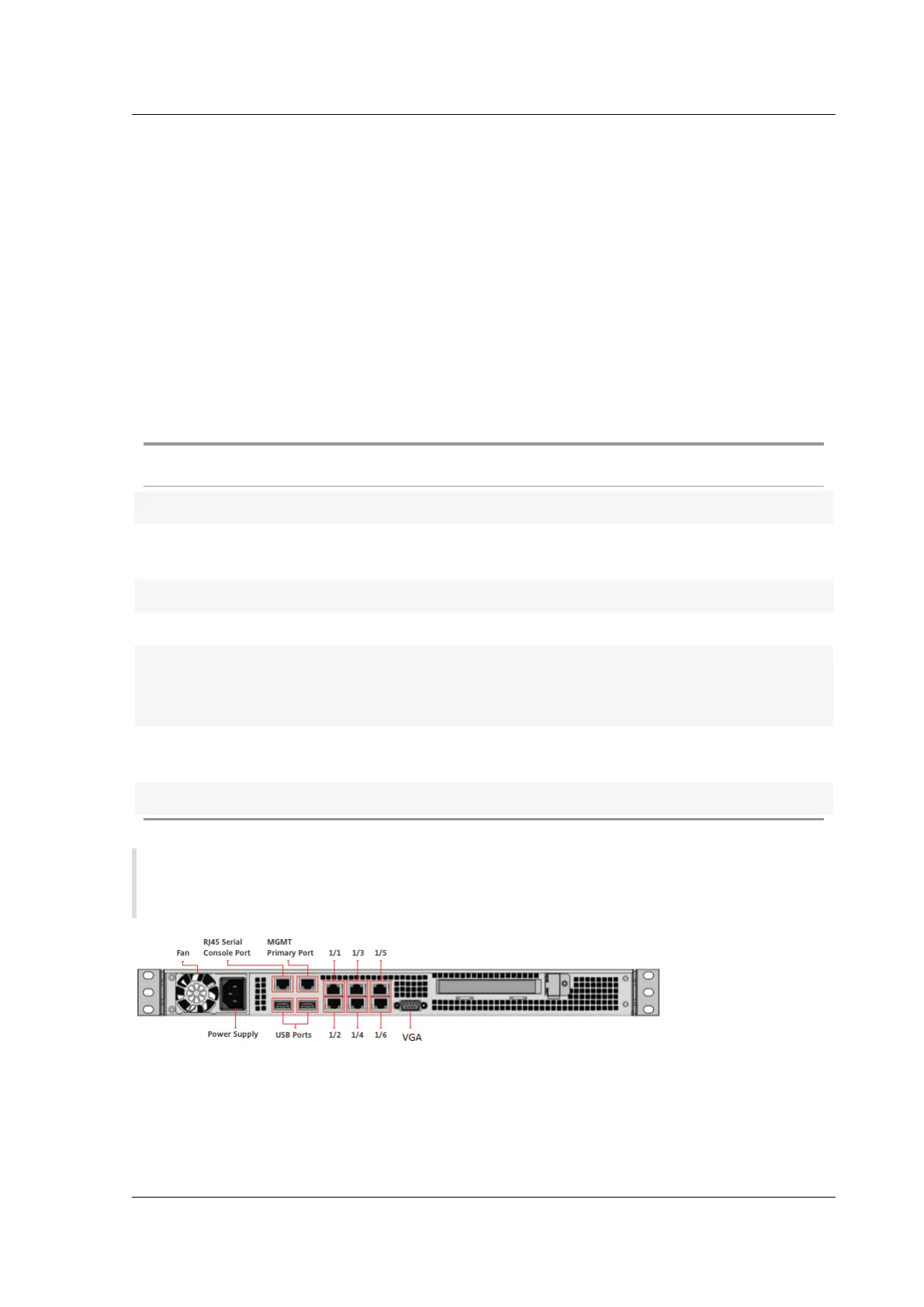

The above figure shows the back panel of an SD-WAN 410 SE appliance.
The following components are visible on the back panel of an SD-WAN 410 SE appliance:
© 1999-2021 Citrix Systems, Inc. All rights reserved. 88
