Claas LEXION 480 - Disassembling the Left-Hand Drum Bearing; Left-Hand Drum Bearing Assembly, Disassembled

3.4.8 RHB LEXION 480 - 188 678.1
Threshing drum

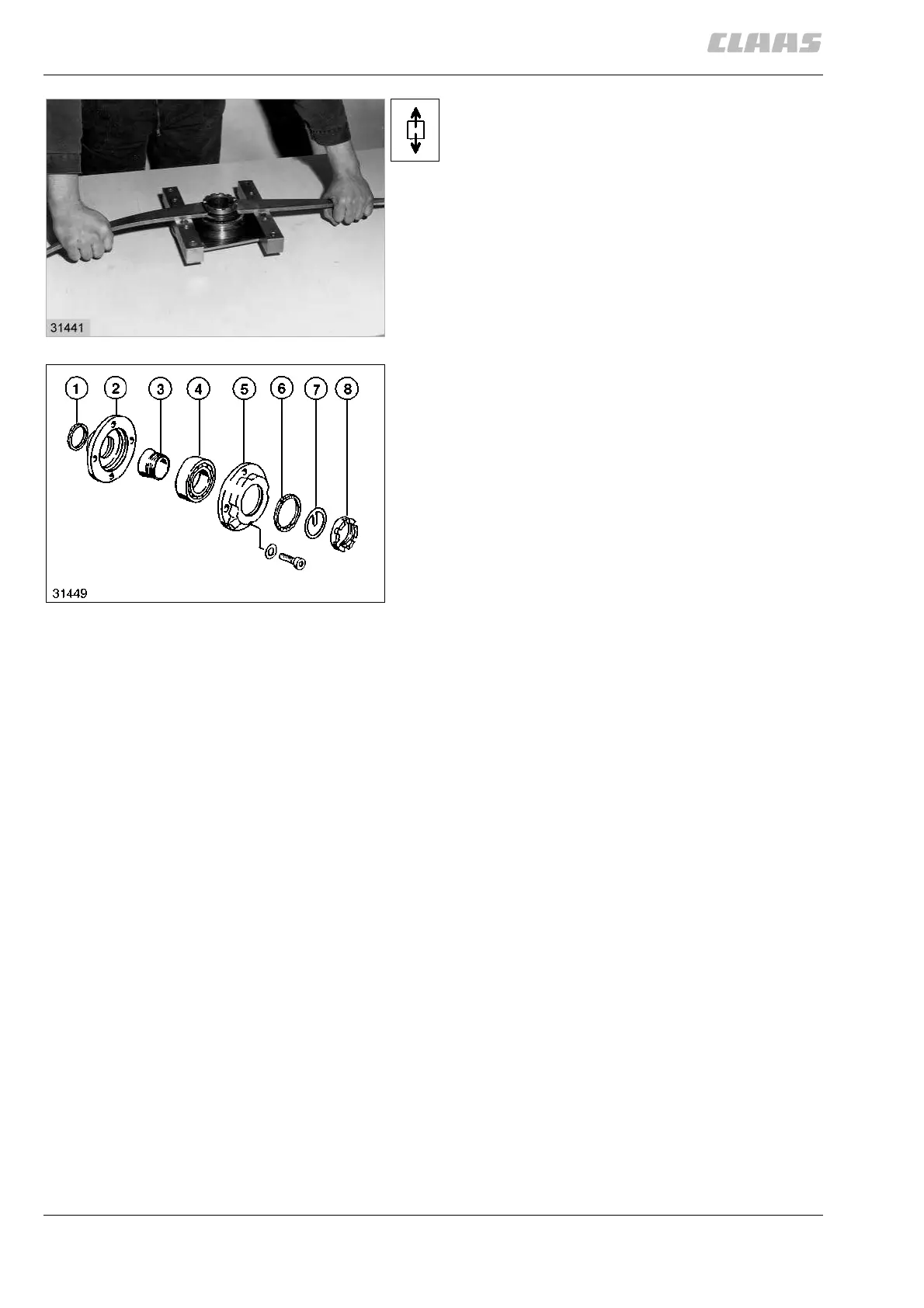

Disassembling the left-hand drum bearing
Separate the bearing housings and, using suitable
tools, push the spherical roller bearing out.
(Fig. 21)
Left-hand drum bearing assembly, disassembled:
1 Felt seal
2 Bearing housing
3 Taper lock sleeve
4 Spherical roller bearing
5 Bearing housing
Cheese-head screw M 12 x 35 DIN 7984-8.8
Detent-edged ring VSKZ 12
6 Felt seal
7 Tab washer
8 Face-end slotted nut M 50 x 1.5
(Fig. 22)
21
22
