Claas LEXION 480 - Servo Gearshift, Disassembled; Installing the Shifter Pistons

188 678.1 - RHB LEXION 480 7.19.27
Manual gearbox

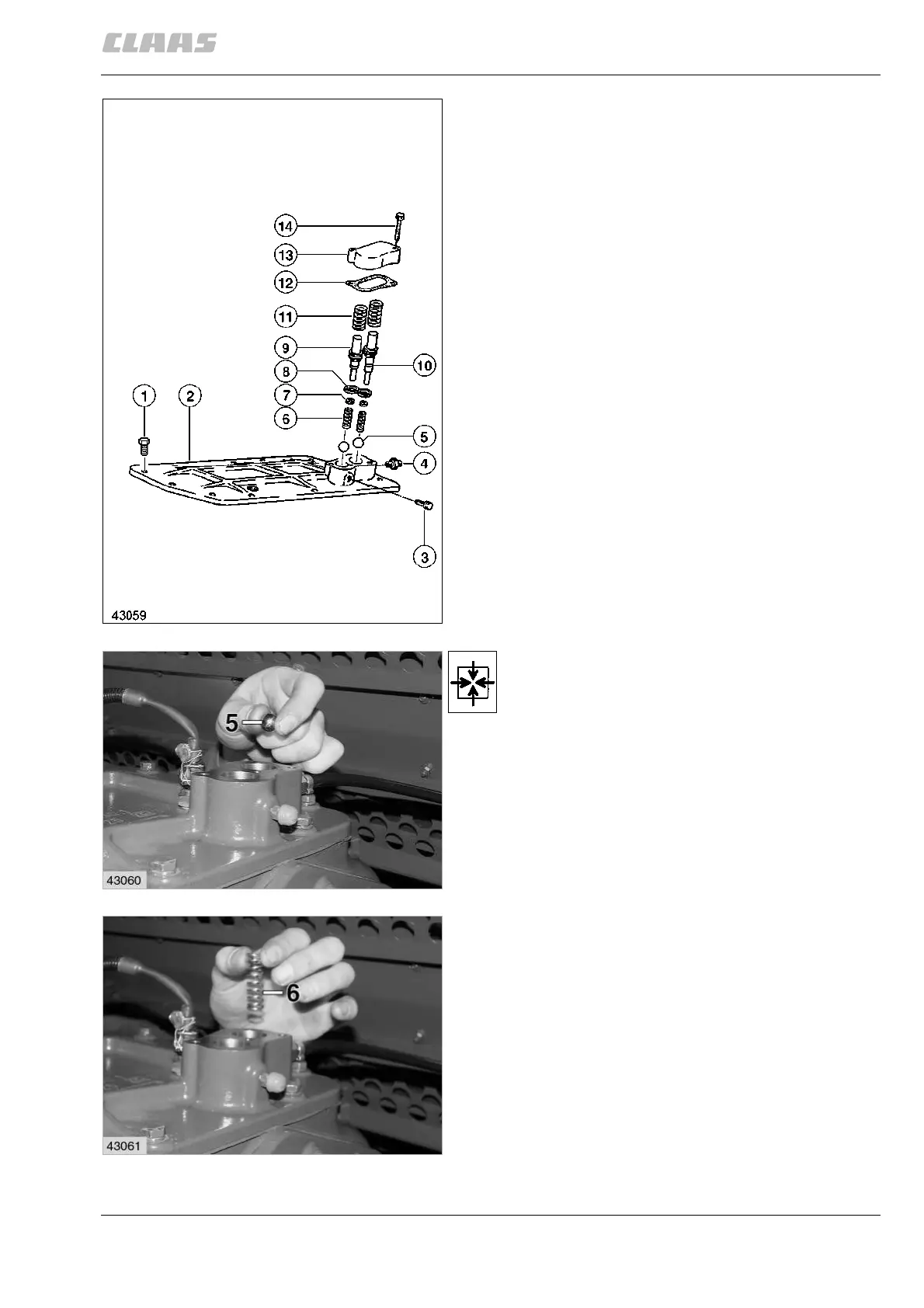

Servo gearshift, disassembled:
1 Hex. bolts M 8 x 25
2 Gearbox cover
3 Bleeder valve
4 Male connector
5 Locking ball
6 Compression spring (lower)
7 Square ring
8 Square ring
9 Shifter piston (front)
10 Shifter piston (rear)
11 Compression spring (upper)
12 Seal
13 Cylinder cover
14 Hex. bolt M 8 x 40
(Fig. 94)
Installing the shifter pistons
Insert the locking balls (5).
Bolt down gearbox cover (2) if necessary.
(Fig. 94, 95)
Insert the lower compression springs (6).
(Fig. 96)
