Claas LEXION 480 - Disassembling the Cutterbar Variable-Speed Pulley Assembly (Hydraulic)

7.4.46 RHB LEXION 480 - 188 678.1
Cutterbar drive
Special tool:
1 Puller bridge, part no. 181 800.0
2 Threaded spindle, part no. 181 801.1
3 Centraliser with ball, part no. 181 849.0
4 Hex. bolt M 16 x 260, part no. 235 816.0 –
2pieces
5 Washer 17, part no. 235 127.2 – 2 pieces
6 Complete puller assembly, part no. 181 857.0

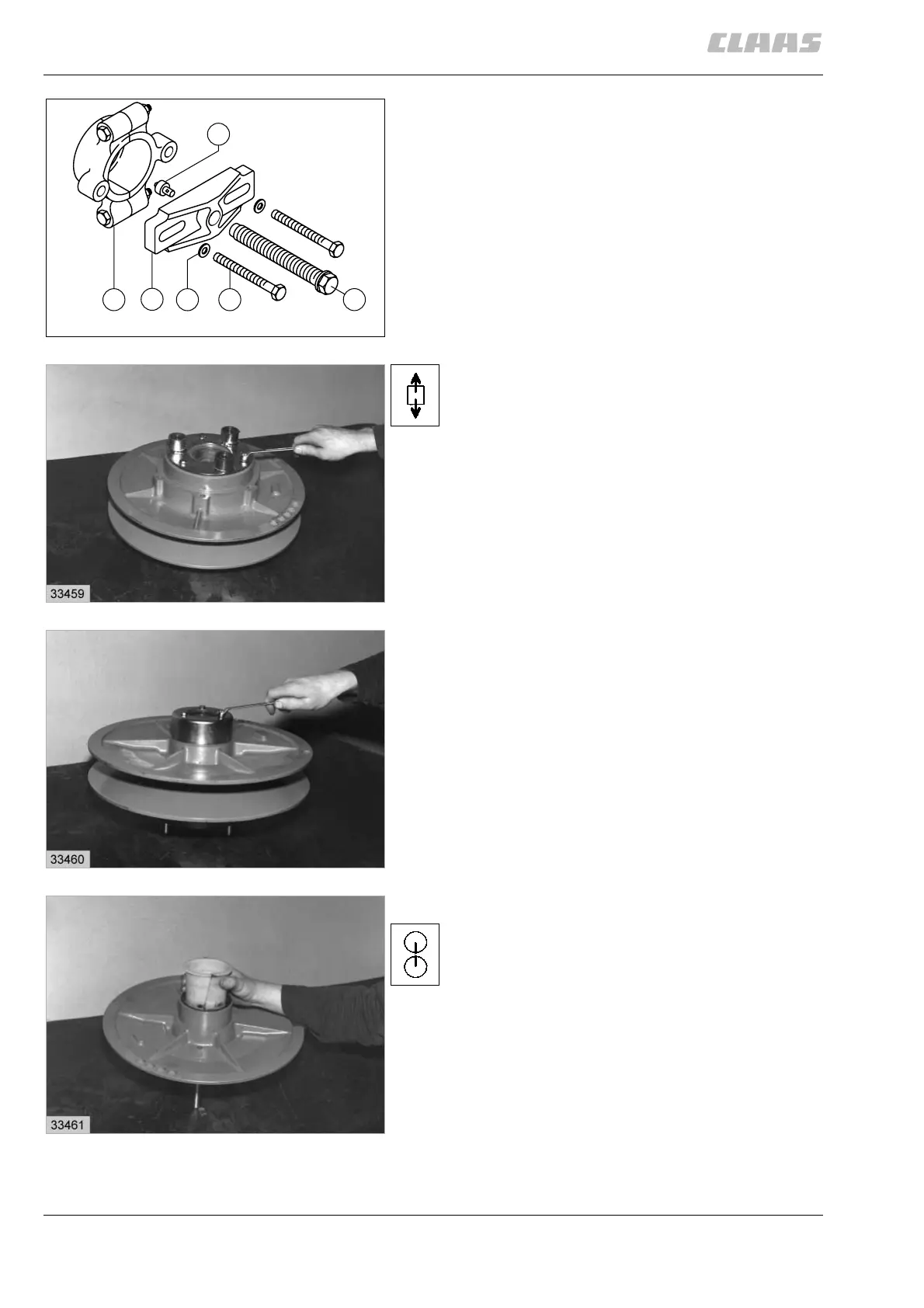

(Fig. 129)
Disassembling the cutterbar variable-speed pulley
assembly (hydraulic)
Unscrew the spacer plate.
(Fig. 130)
Unscrew the cover and remove.
(Fig. 131)
Remove the variable-speed pulley half.
Remove the sliding bushing. Observe installation
position and mark it.
(Fig. 132)
