7.2.2 RHB LEXION 480 - 188 678.1
Left-hand drive belts

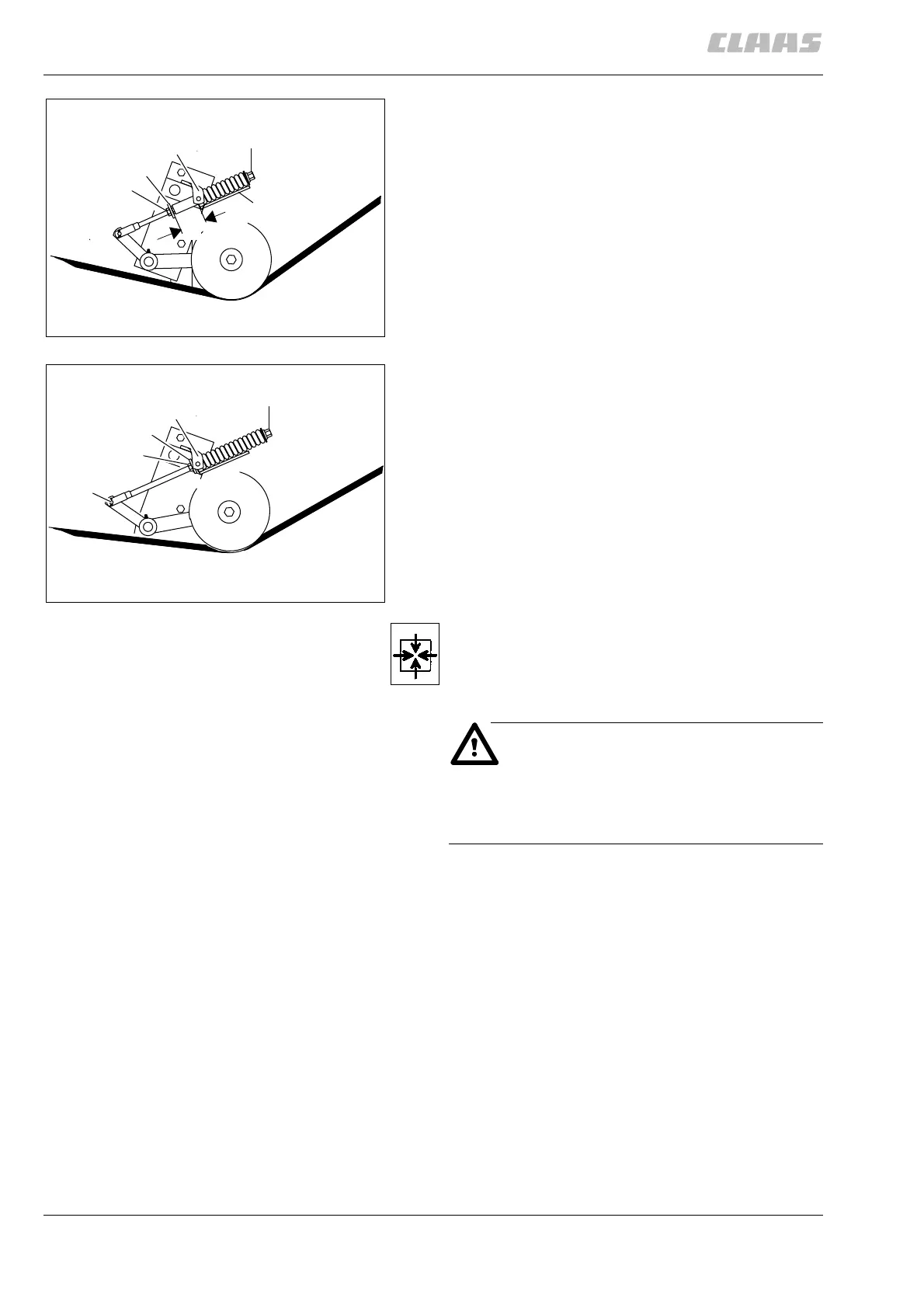

Relieve tension on spring-loaded cylinder. To do this,
proceed as follows:
1. Determine the dimension (X).
2. Slacken off the lock nut (K).
3. Slacken off the spring guide tube (R) by the
previously determined distance (X). At the same
time tighten the nut (K) until the washer (S) is up
against the bracket (H).
The pin (B) should now be tension-free. Should
there be still a little tension on the pin, then a little
bit of adjustment may still be required at the spring
guide tube (R) and the nut (K).
4. Remove pin (B).
(Fig. 3, 4)
Installing and adjusting the cutterbar drive
belt (1)
(Cutterbar drive without variable-speed drive)
W = Impeller
DANGER!
Carry out the adjustment only with the
engine switched off and the ignition key
removed.
Adjusting the jockey pulley (A):
Adjust the jockey pulley (A) so that the angle (Y) of the
jockey pulley arm (H) is between 0° and 10°.
Tightening torque = 130 Nm
Adjusting spring-loaded cylinder (F):
Loosen lock nut (K) and adjust the spring guide tube
(R) so that the end of the gauge rod (D) is level with
the end of the spring. Tighten the lock nut (K).
Spring length = 138 mm
Installing and adjusting the cutterbar intermediate
drive belt (5)
, see page 7.2.10
(Fig.1,3,4)
33313
X
R
H
S
K
D
3
33314
R
H
S
K
B
4
