Claas LEXION 480 - Assembling the Rear Sieve Pan Drive Deflection Pulley; Installing the Rear Sieve Pan Drive Deflection Pulley

188 678.1 - RHB LEXION 480 7.13.7
Sieve pan drive
Assembling the rear sieve pan drive deflection
pulley
Insert the spacer rings (4), the circlips (3) and the deep
groove ball bearings (2) into the deflection pulley.
Insert pin (6).
(Fig. 17, 18)

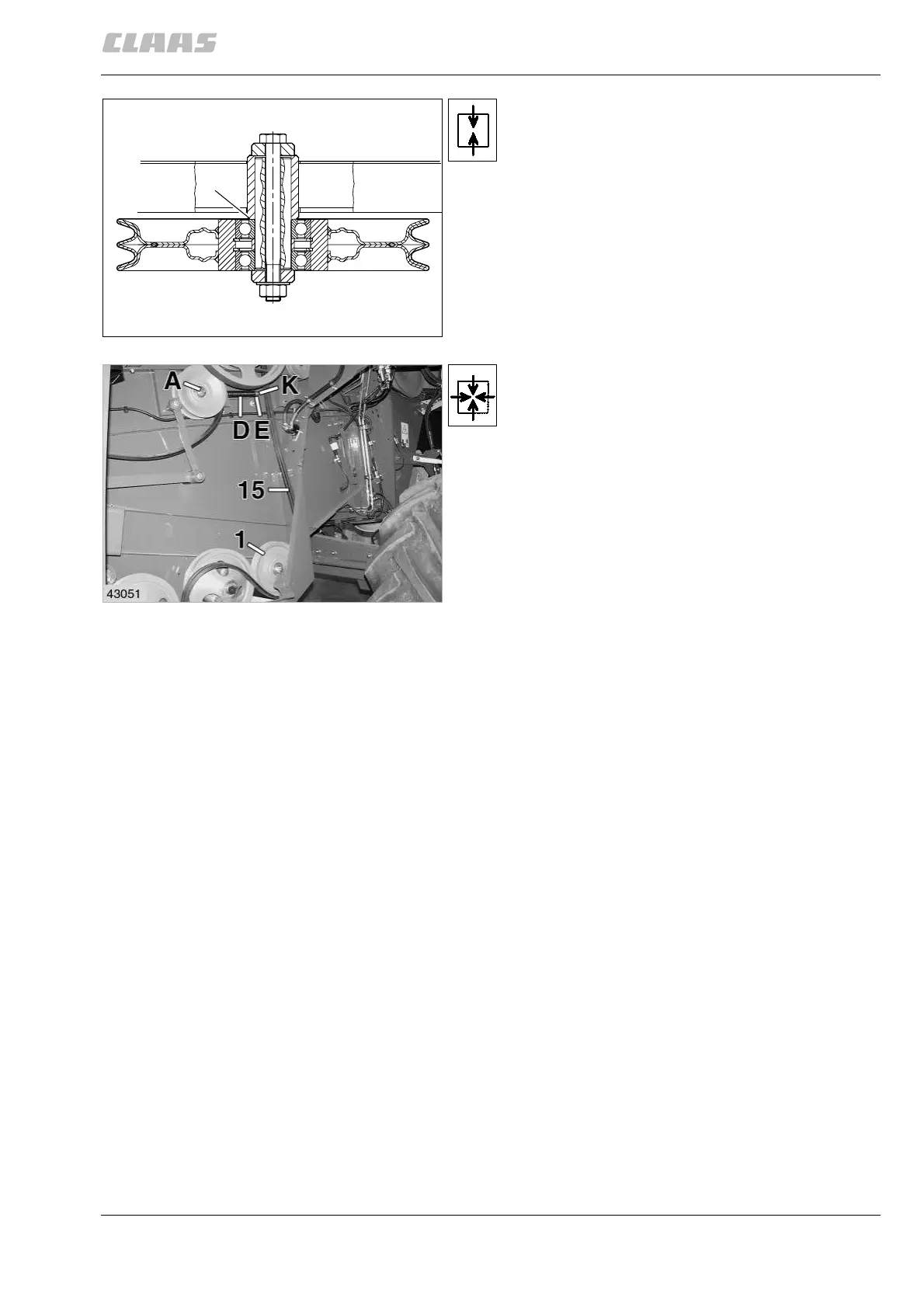

Installing the rear sieve pan drive deflection
pulley
Bolt down deflection pulley (1) with pin (6) and
hex. bolt (8).
NOTE: At position (P), the deflection pulley may be
backed up with shims (7) if required.
(Fig. 18, 19)
Installing and adjusting the sieve pan drive belt (15) ,
see page 7.2.31
Pre-tension compression spring (D) by way of nut (E)
to the gauge rod length. Lock nuts (E and K) and
tighten clamping screw (A).
Tightening torque
M 16-8.8 = 130 Nm
(Fig. 15, 19)
From serial no. …:
Bolt down tool box with the two hex. bolts (S).
(Fig. 13)
Up to serial no. …:
Bolt down adapter (C) with hex. bolts (B).
(Fig. 14)
P
43050
18
19
