5.3.22 RHB LEXION 480 - 188 678.1
Grain tank unloading
Installing the lower grain tank unloading angle
drive
(from serial no. ...)

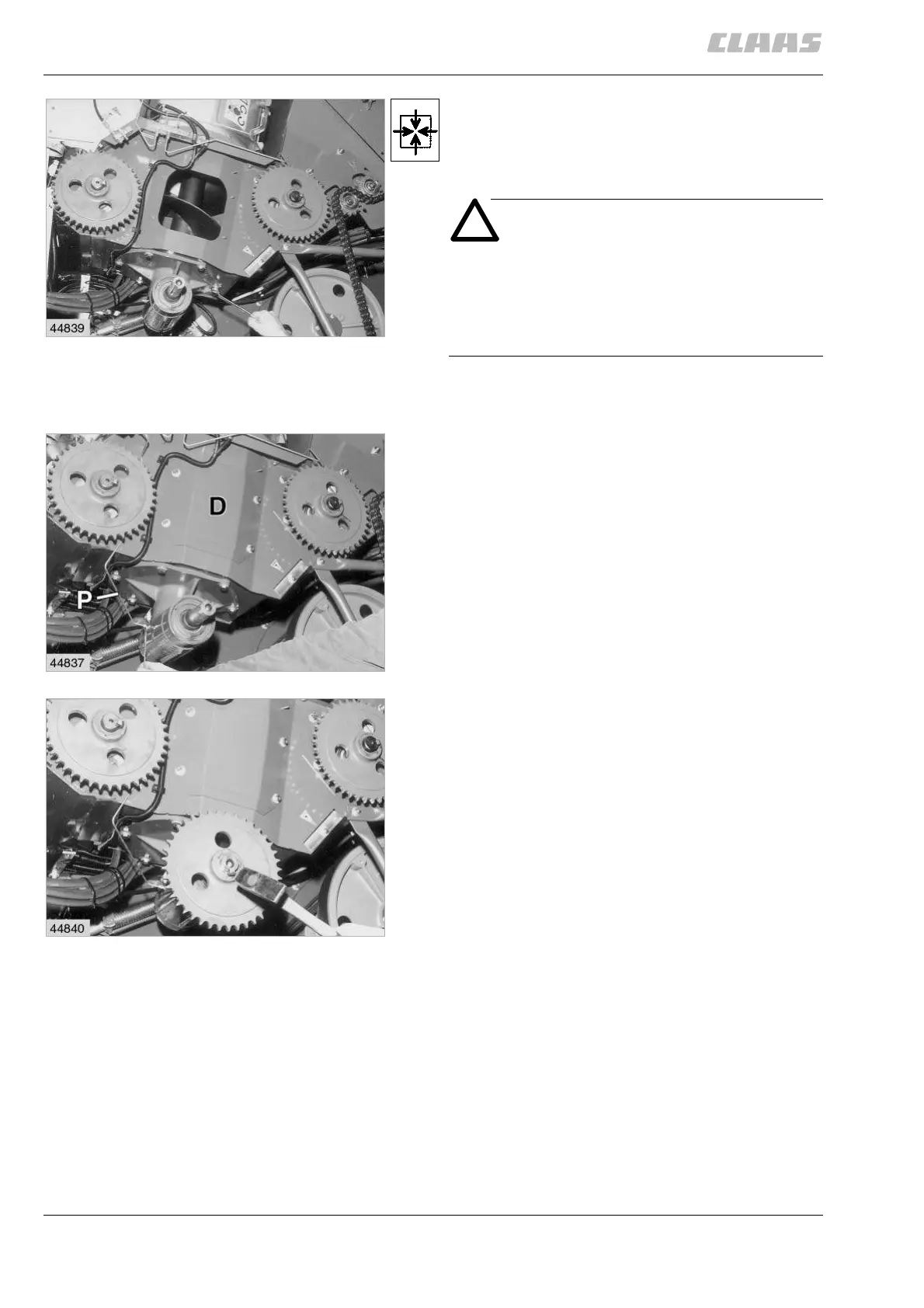

1. Insert and bolt down the lower angle drive.
ATTENTION!
The vertical auger must be offset by 180°,
relating to the horizontal auger in the grain
tank unloading tube. The two flight ends
must not touch each other. Check correct
position by turning the augers.
(Fig. 68)
2. Refit the grease pipes (P) and the cover (D).
(Fig. 69)
3. Slide on sprocket and align it to the measured
dimension, then secure gib head key.
(Fig. 70)
68
69
70
