Claas LEXION 480 - Installing and Adjusting the Grain Tank Unloading Drive Chain (17)

188 678.1 - RHB LEXION 480 7.2.35
Left-hand drive belts
Installing and adjusting the grain tank
unloading drive chain (17)
DANGER!
Carry out the adjustment only with the
engine switched off and the ignition key
removed.
Install chain and chain connector.
When installing the chain connector retention, observe
correct moving direction (L) of chain.
(Fig. 62)
Up to serial no. …
From serial no. …
CAUTION!

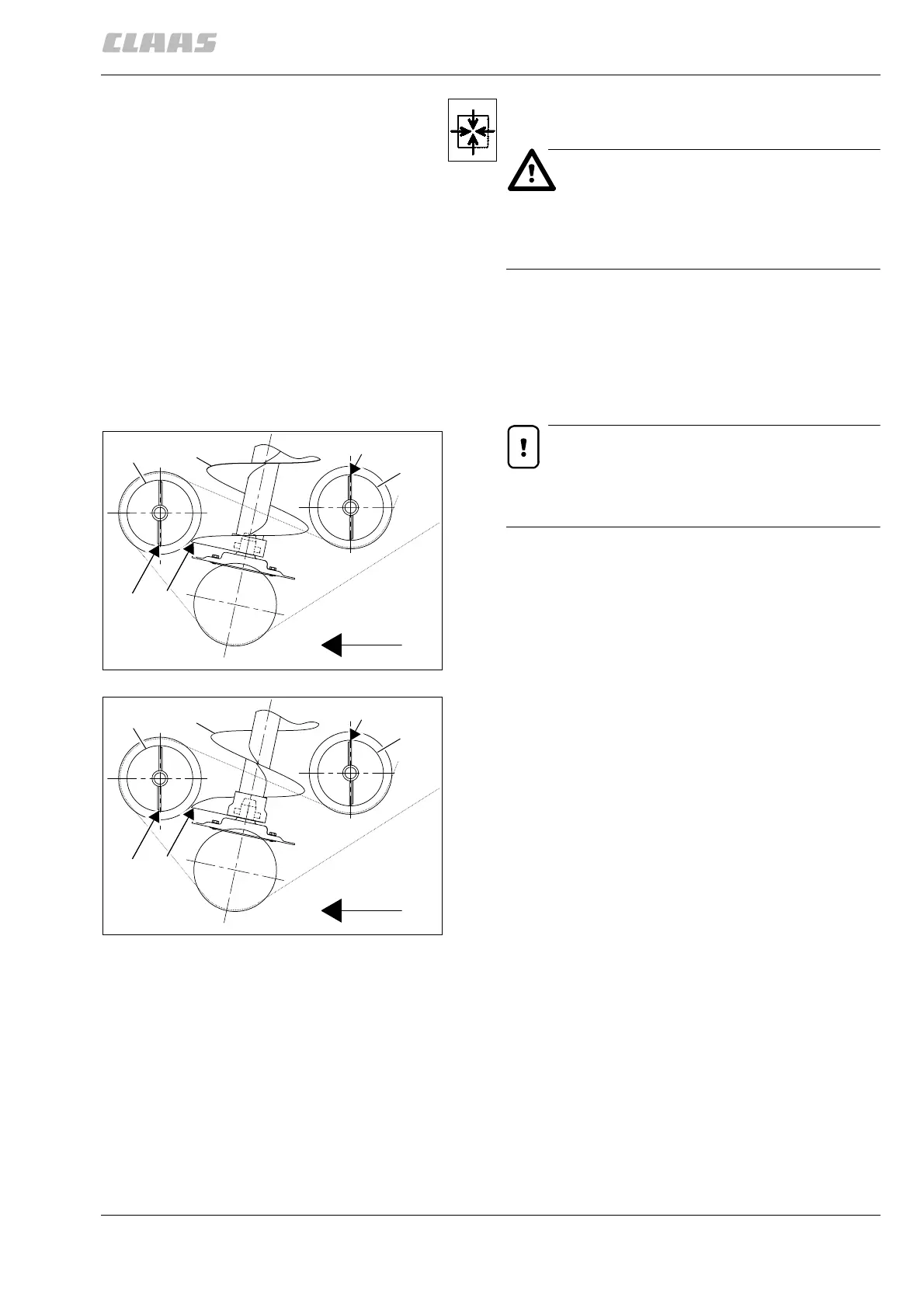

The unloading augers must be timed relative to
each other when installing the chain.
The start (A) of the unloading auger (K) flight must
point toward the front cross auger (V).
The start (A) of the front cross auger (V) must be in the
6 o'clock position.
The start (A) of the rear cross auger (H) must be in the
12 o'clock position.
F = Direction of travel
(Fig. 65, 66)
Adjusting the spring-loaded cylinder:
Loosen lock nut (K) and adjust the spring guide
tube (R) until the end of the gauge rod (D) is level with
the end of the spring with the lock nut tightened.
Spring length = 92 mm
(Fig.62,63,64)
A
A
A
F
H
V
K
32832
65
A
A
A
F
H
V
K
34709
66
