188 678.1 - RHB LEXION 480 7.15.3

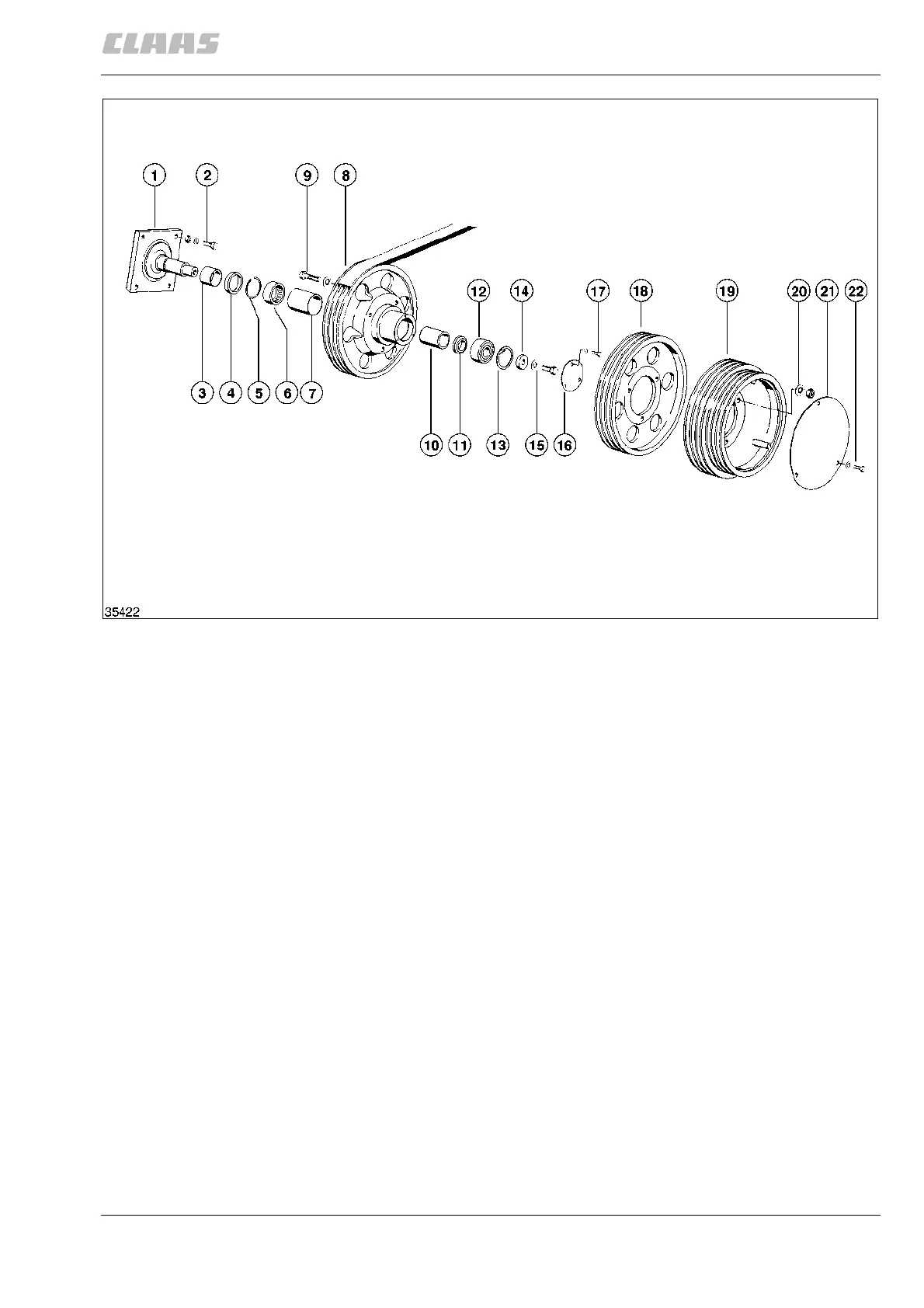

Axial rotor drive
Axial rotor intermediate drive V-belt pulley,
disassembled
1 Bearing neck
2 Hex. bolt M 12 x 40 DIN 933-8.8
Contact washer A 12
Hex. nut M 12 DIN 934-8
3 Inner race ring
4 Shaft seal A 58 x 72 x 8 DIN 3760
5 Snap ring
6 Needle bearing RNA 4910
7 Outer spacer
8 V-belt pulley
9 Hex. bolt M 16 x 70 DIN 933-8.8
10 Inner spacer
11 Intermediate ring
12 Angular contact ball bearing 3306 RS/C3 DIN 628
13 Circlip 72 x 2.5 DIN 472
14 Washer
15 Hex. bolt M 12 x 35 DIN 933-8.8
16 Cover
17 Hex. bolt M 6 x 12 DIN 933-8.8
Contact washer A 6
18 V-belt pulley
19 V-belt pulley
20 Hex. nut M 16 DIN 934-8
Contact washer A 16
21 Round plate
22 Hex. bolt M 8 x 12 DIN 933-8.8
Contact washer A 8
(Fig. 7)
7
Axial rotor drive
