188 678.1 - RHB LEXION 480 7.3.27

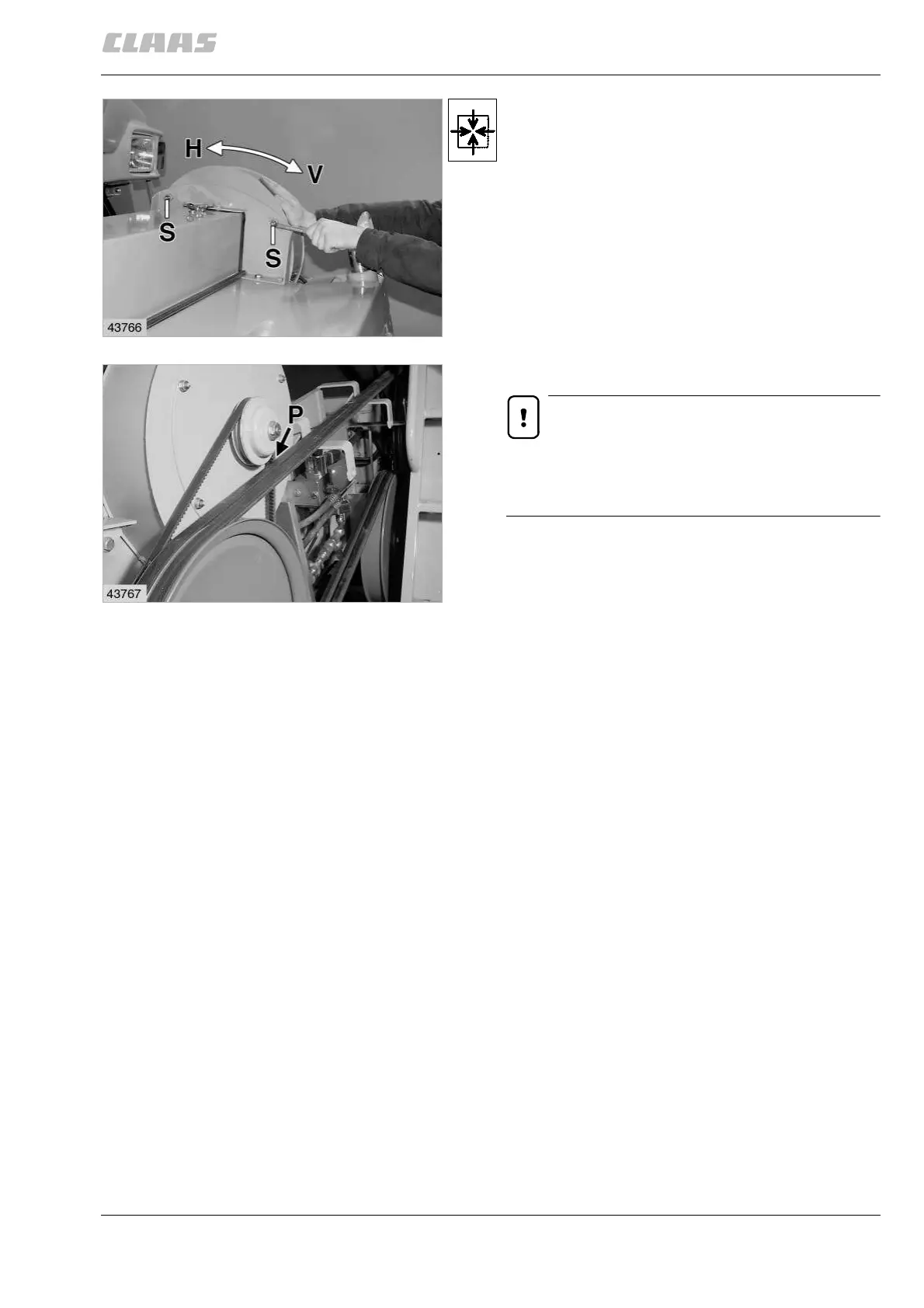

Right-hand drive belts
Installing and adjusting the feed rake
conveyor suction blower drive belt (34)
Install belt (34).
Push the suction blower to the rear (H) by hand until
belt (34) is sufficiently tensioned. Tighten the two
hex. bolts (S).
Tighten the hex. bolt (A).
(Fig. 39, 40)
Install and adjust the cutterbar drive belt (1) and/or (2).
CAUTION!
The belts must not have contact at (P). Align
pulley if required – see page 7.4.2,
Installing the
front pulley of cutterbar drive (1)
.
(Fig. 41)
40
41
