Claas LEXION 480 - Impeller; Removing the Right-Hand Impeller Bearing

188 678.1 - RHB LEXION 480 3.5.1
Impeller
IMPELLER

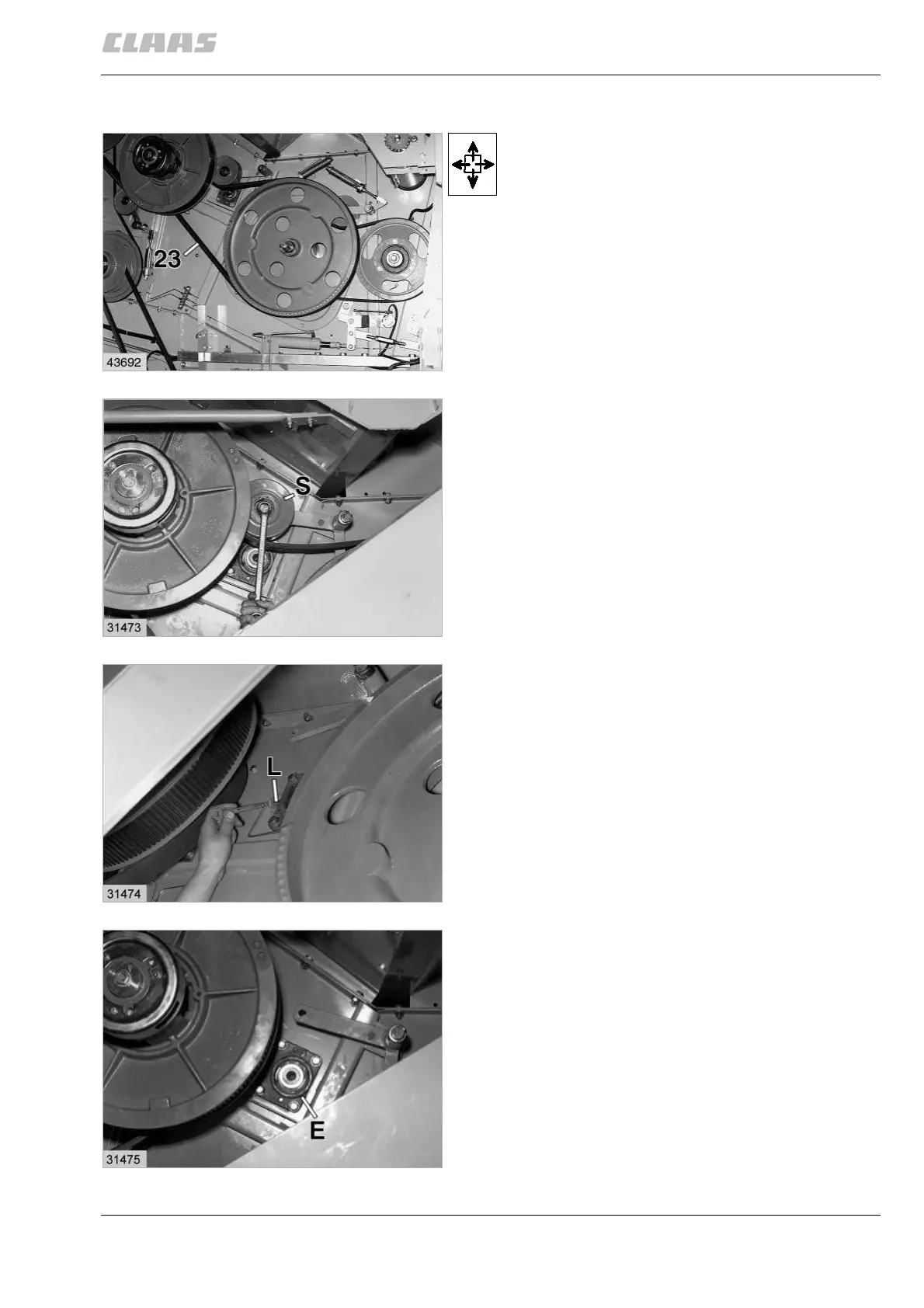

Removing the right-hand impeller bearing
Open the large side panel.
Relieve the tension of threshing drum drive belt (23).
(Fig. 1)
Unbolt the jockey pulley (S).
(Fig. 2)
Remove the grease pipe (L) from the bearing
assembly.
Unscrew the set screw from the lock collar and knock
off the lock collar against its normal rotational
direction.
(Fig. 3)
Remove the four M 12 x 35 hex. bolts from bearing
assembly (E).
(Fig. 4)
1
2
3
4
Impeller
