Left-hand drive belts
Removing the cutterbar variable-speed drive
belt (3)
DANGER!
Set the variable-speed drive to maximum
speed with the engine running and the main
and cutterbar drive engaged.
Stop the engine and remove the ignition key.
Remove the cutterbar intermediate drive belt (5) at the
bottom – see page 7.2.9,
Removing the cutterbar
intermediate drive belt (5)
.
Block variable-speed pulleys with special tools, please
refer to the text below.
DANGER!
Be careful when working on variable-speed
drives. Never move your hands between the
pulley halves – Danger of accidents!

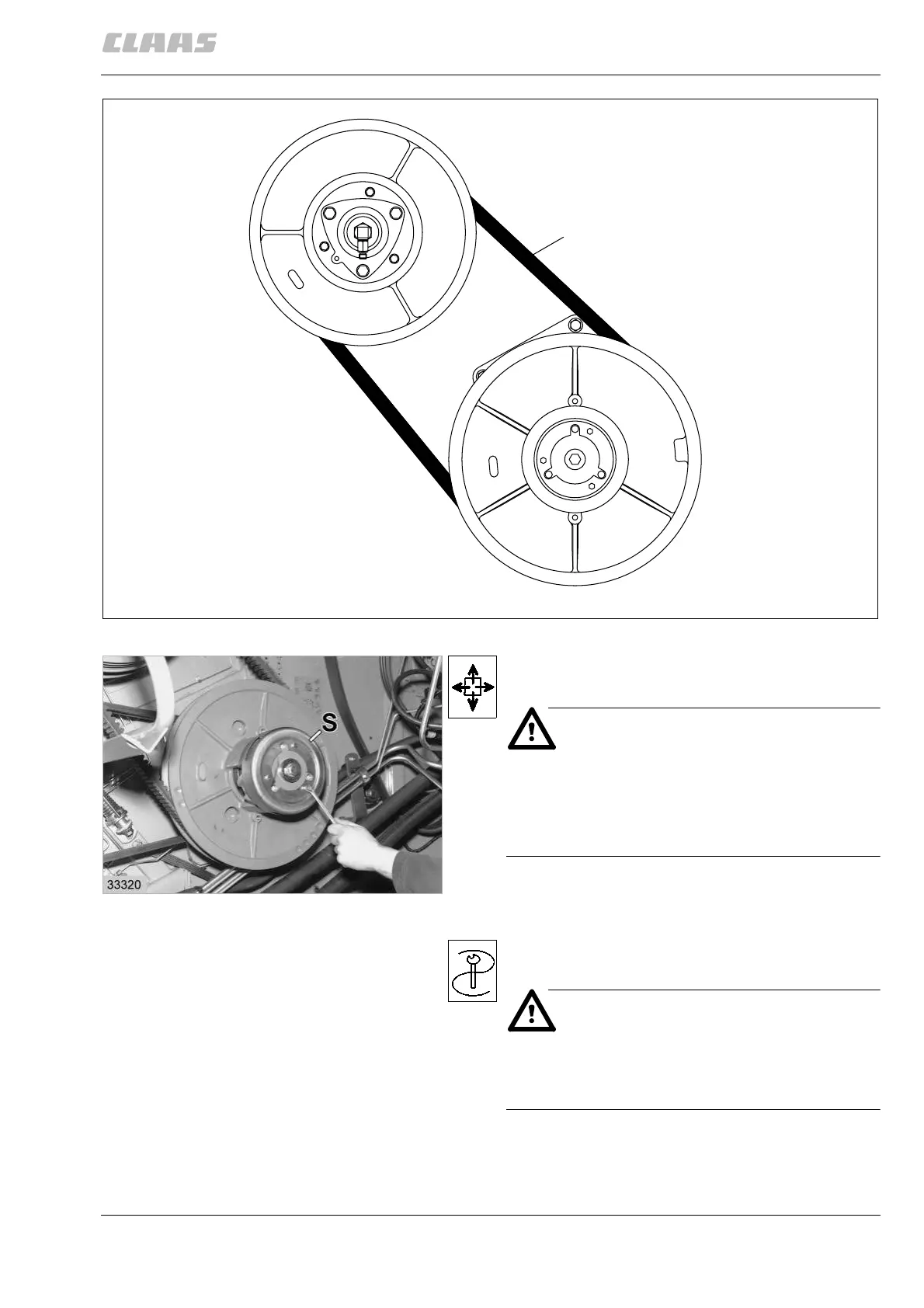

Unscrew guard (S).
(Fig. 10, 11)
10
33319
3
11
