Threshing mechanism intermediate drive
Installing the right-hand intermediate drive
shaft bearing

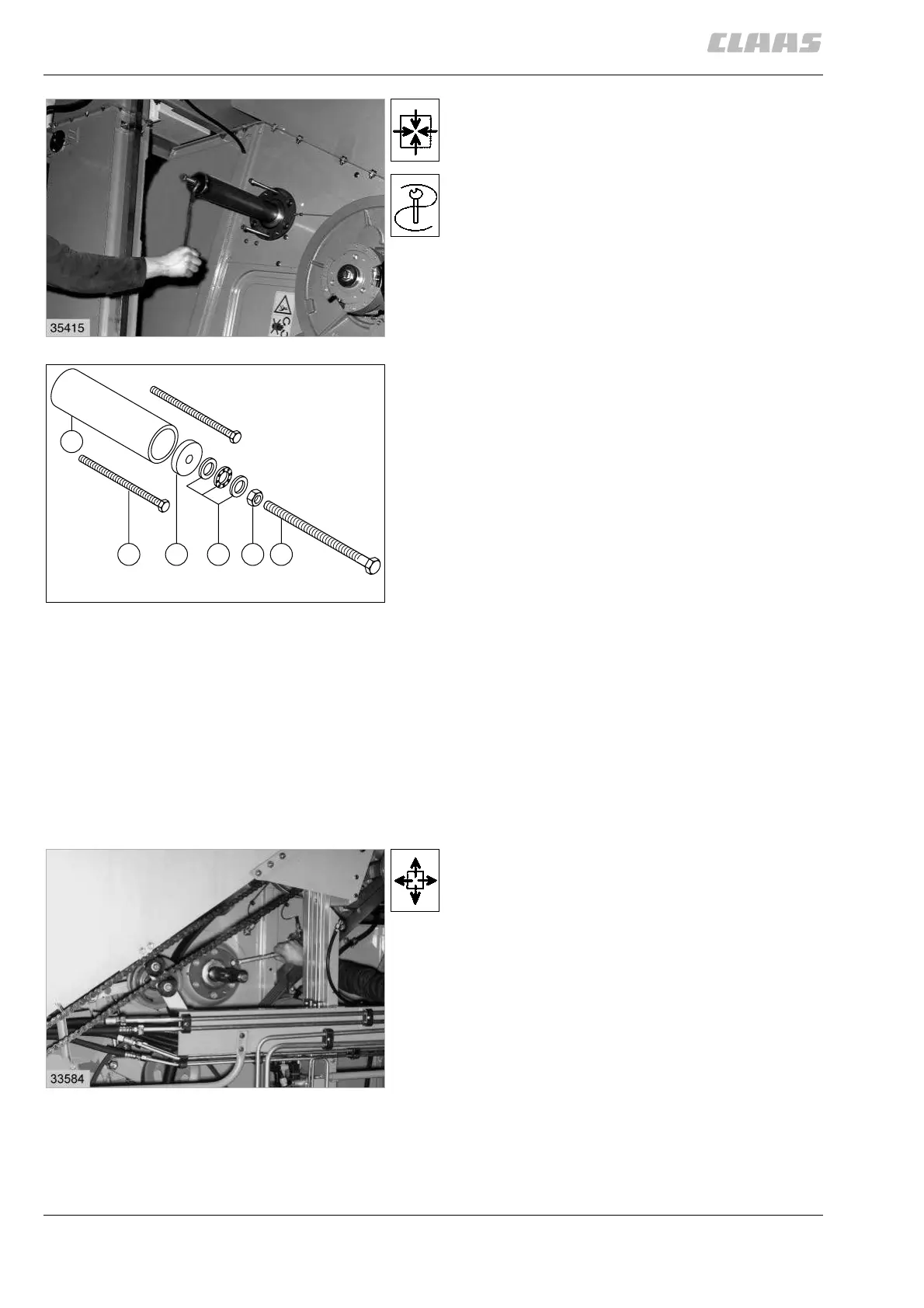

1. Press the bearing assembly onto the shaft using a
special tool.
(Fig. 4)
Special tool:
1 Hex. bolt M 16 x 260 DIN 933-8.8,
part no. 235 816.0
2 Hex. nut M 16, part no. 236 173.0
3 Axial grooved ball bearing, part no. 177 899.0
4 Thrust washer, part no. 667 414.0
5 Tube, inside ∅ 60 x 200 long (self-sourced)
6 Hex. bolt M 12 x 180 DIN 931-8.8,
part no. 235 565.0
(Fig. 5)
2. Bolt down the bearing assembly and the grease
pipe.
(Fig. 1)
3.
Installing the stage 1 fan drive V-belt pulley , see
page 7.14.1
Installing the threshing drum variable-speed
pulley assembly (hydraulic)
, see page 7.6.6
Removing the left-hand intermediate drive
shaft bearing
Removing the threshing mechanism drive pulley
assembly
, see page 7.5.1
Remove the grease pipe and unbolt the bearing
assembly.
(Fig. 6)
