Claas LEXION 480 - Preparation Floor; Removing the Preparation Floor

188 678.1 - RHB LEXION 480 4.3.1
Preparation floor
PREPARATION FLOOR
Removing the preparation floor
Removing the sieve pan , see page 4.2.17

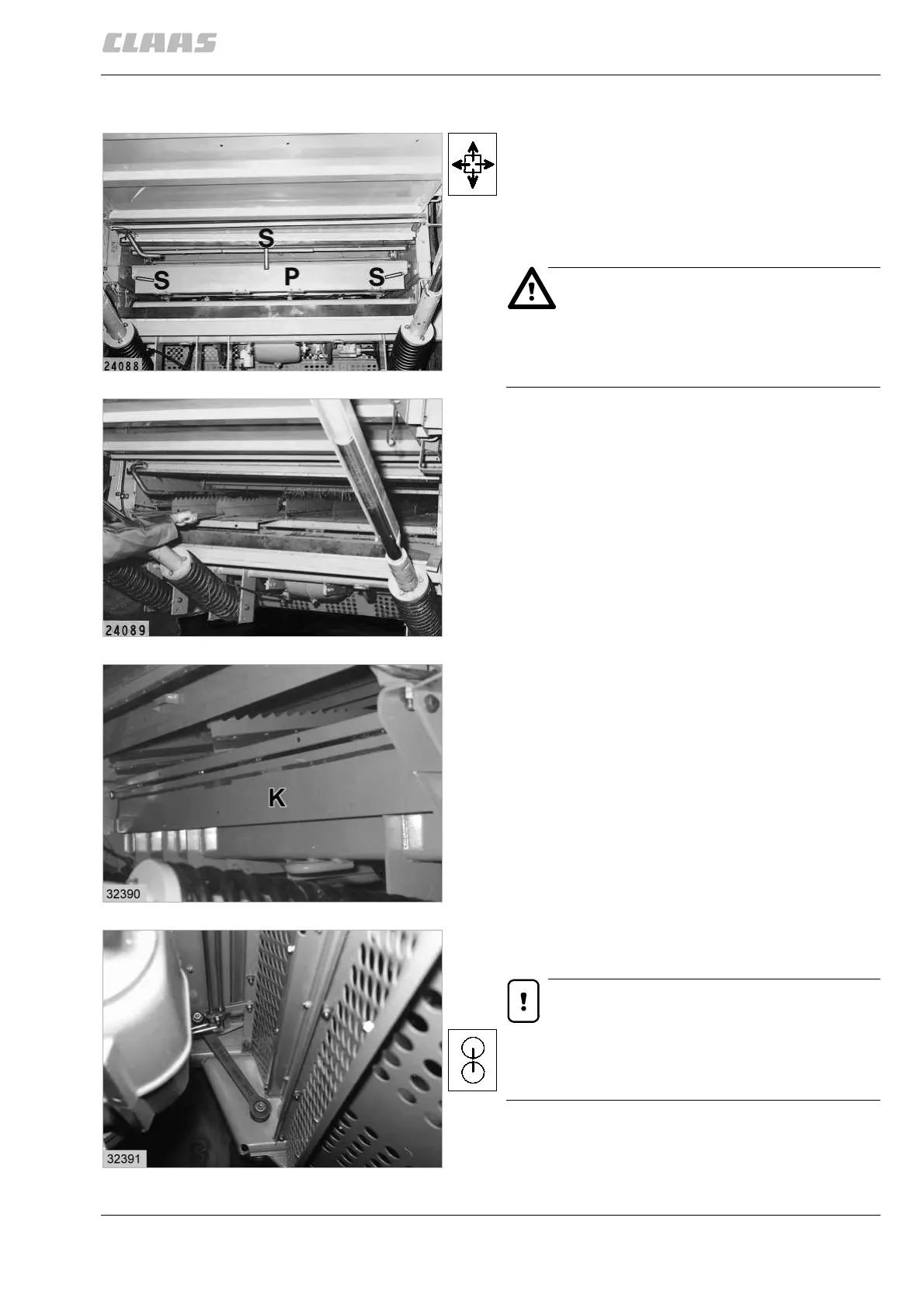

The front part of the stepped preparation floor sections
can be removed to the front.
Fully lift the feed rake.
DANGER!
Stop the engine and switch off the battery
isolating switch! Engage the cylinder safety
lock.
– Open the stone trap.
– Unscrew the three hex. bolts (S) which secure the
cover (P) to the preparation floor.
– Open the cover (P).
– Pull out the stepped preparation floor sections
with a suitable hook.
(Fig. 1, 2)
Unscrew flap (K) completely with the hinges.
(Fig. 3)
Unscrew the front rocker arms from the preparation
floor and the machine frame on both sides.
CAUTION!
Observe the installation positions of the two
rocker arms when removing and mark this
position. The rocker arms are not symmetrical.
(Fig. 4)
1
2
3
4
Preparation floor
