Claas LEXION 480 - Replacing the Slip Clutch Linings of Cutterbar Drive (1); Slip Clutch of Cutterbar Drive (1), Dismantled

188 678.1 - RHB LEXION 480 7.4.5
Cutterbar drive
Replacing the slip clutch linings of cutterbar
drive (1)
Remove the left-hand drive wheel.
Remove guard.
Removing the cutterbar drive belt (1) (Cutterbar drive
without variable-speed drive)
, see page 7.2.1
Remove the V-belt pulley from the slip clutch.
Remove the locking wire and disassemble the clutch.
(Fig. 11)

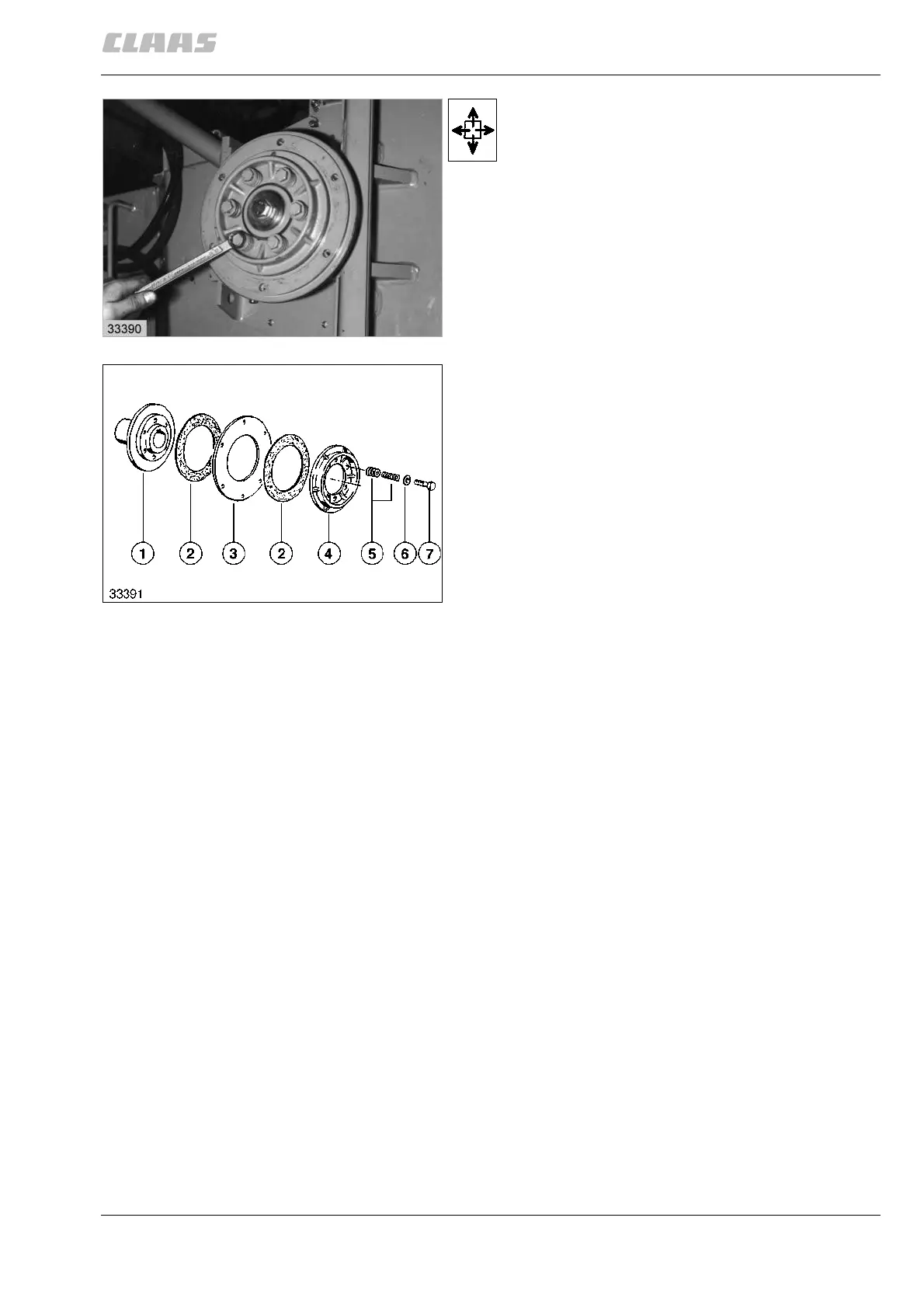

Slip clutch of cutterbar drive (1), dismantled
1Clutch hub
2 Clutch lining
3 Clutch plate
4Cover
5 Compression spring
6 Washer
7 Hex. bolt M 10 x 50
(Fig. 12)
11
12
