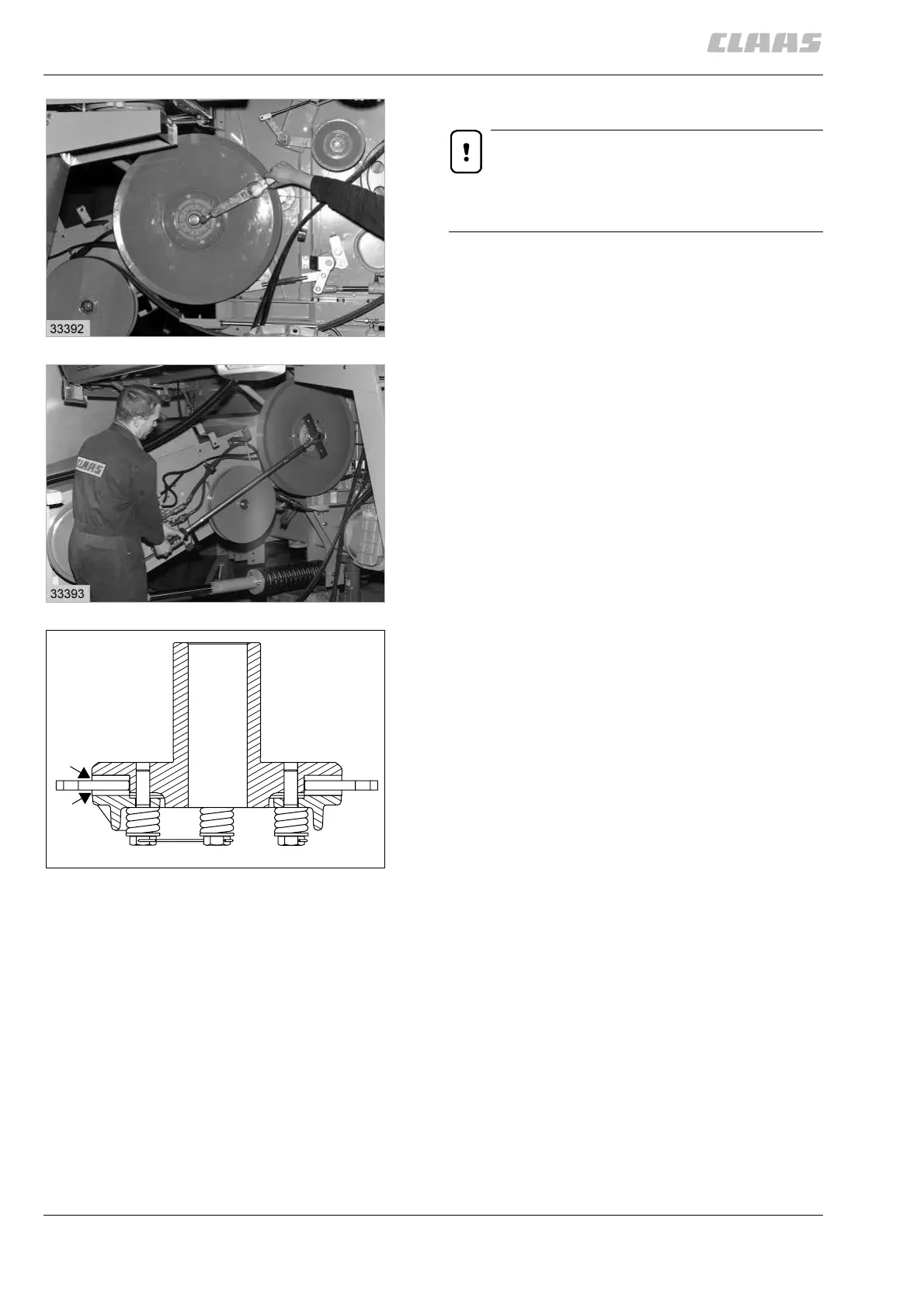

7.4.6 RHB LEXION 480 - 188 678.1
Cutterbar drive
1. Install clutch according to Fig. 12.
CAUTION!
The clutch linings must be clean and free from
any grease or oil.
2. Tighten the hex. bolts (7) evenly to 30 Nm and
then back off by 180°.
3. Bolt the pulley into position, but ensure that two
opposing bolts are left out.
4. Jam the top feed rake shaft.
5. Bolt the test bridge part no. 181 623.0 into place.
6. Allow the slip clutch to slip twice first.
7. Now check the slip torque and adjust it if
necessary.
Slip torque = 840 Nm ± 40 Nm
8. Seal the clutch linings with paint at (X).
9. Remove the test bridge and screw in the two
missing bolts.
Release the top feed rake shaft.
10. Install the locking wire.
11.
Installing and adjusting the cutterbar drive belt (1)
(Cutterbar drive without variable-speed drive)
, see
page 7.2.2
12. Install the guard and the drive wheel.
(Fig. 11, 12, 13, 14, 15)
13
14
33394
X
X
15
