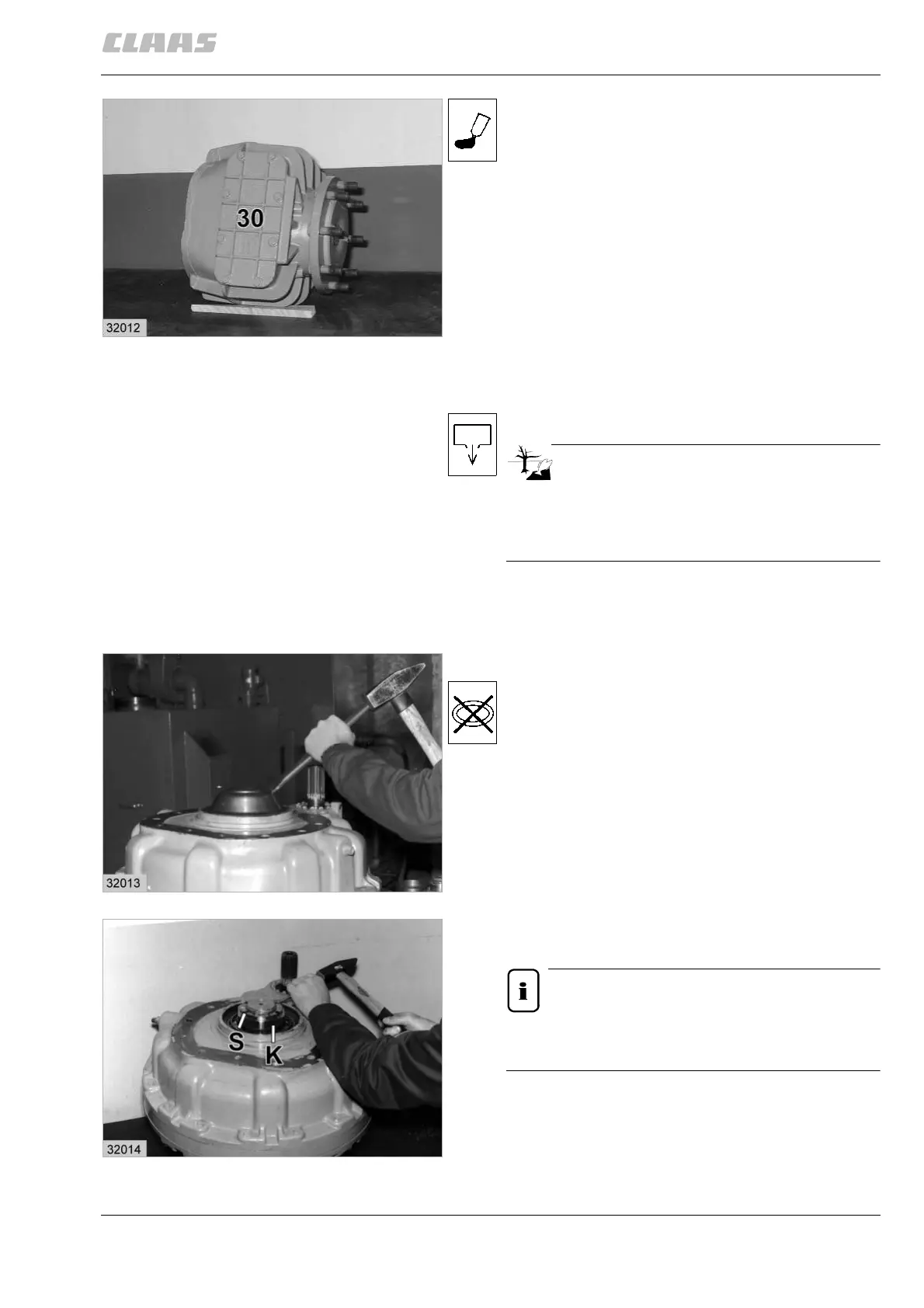

15. Clean the contact surface of the gearbox housing
and the cover (30). Apply a thin coat of sealing
compound, e.g. Epple Type 33, to the surface. Bolt
down the cover.
(Fig. 47)
Install the final drive gearbox.
Disassembling the planetary final drive gearbox
Remove the final drive gearbox.
Drain the gearbox oil.
ENVIRONMENT!
Dispose of the old oil in a way that is harmless to
the environment and in accordance with existing
environmental regulations!
Clean magnetic plug in oil drain plug at every oil
change. Screw in the oil drain plug tightly after draining
the oil.
Remove the cap and the O-ring.
Whenever the cap and O-ring have been removed,
they must be replaced by new ones.
(Fig. 48)
Drive out the double expansion pin (S) and unscrew
the castellated nut (K).
NOTE!
The castellated nut is tightened to a torque of
580 Nm.
(Fig. 49)
