7.18.16 RHB LEXION 480 - 188 678.1
Final drives

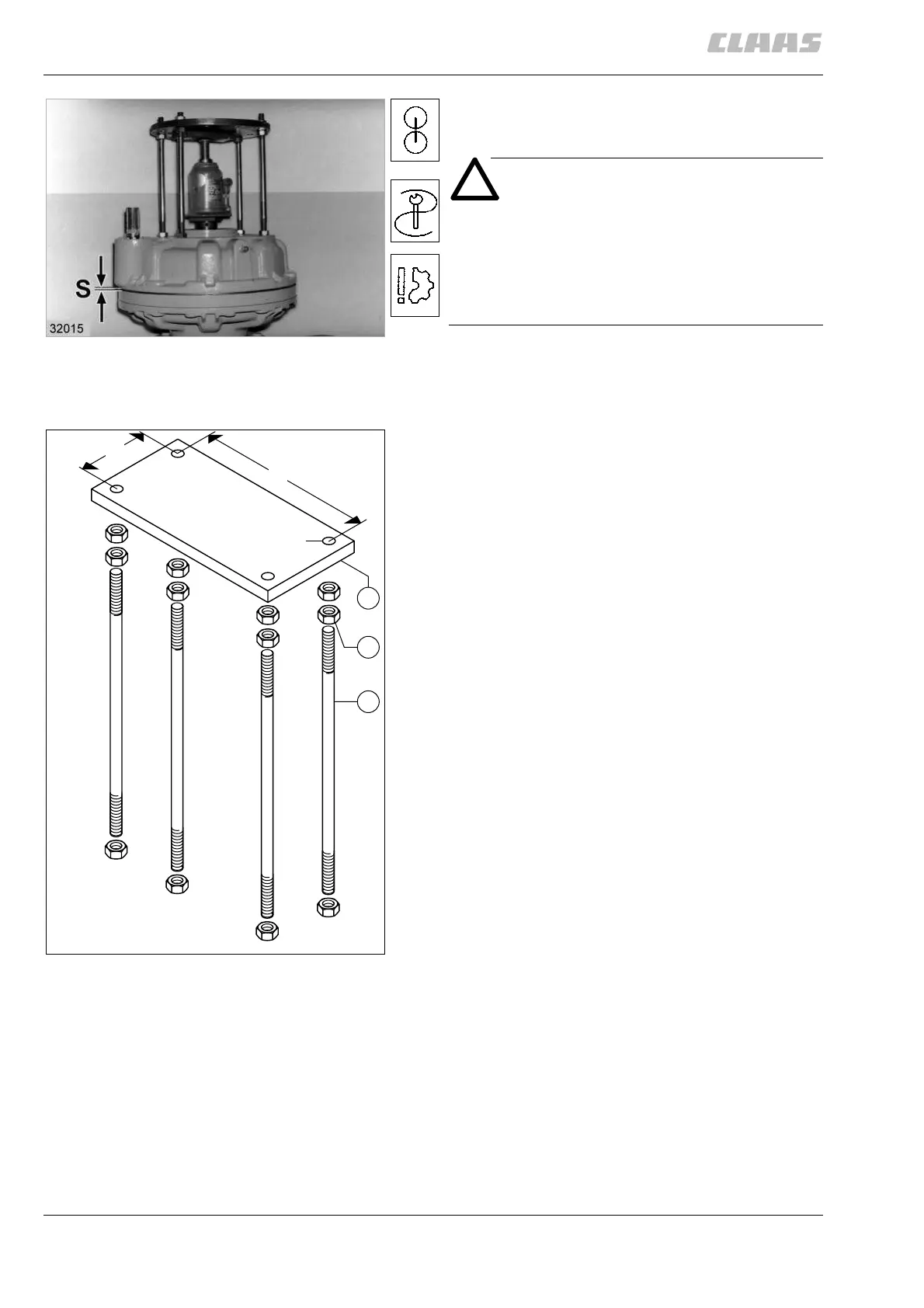

Mark the gearbox halves with respect to each other.
Remove the 16 M 16 x 100 hex. bolts.
ATTENTION!
Using a jack and a special tool, lift the
gearbox housing only so that the gap (S)
is 5 mm max.
Failure to observe this procedure may
damage the gearbox.
Then lower the gearbox housing again.
(Fig. 50)
Special tool:
Self-manufactured
1 Plate 350 x 230 x 20 mm
A = 300 mm
B = 180 mm
C = ∅ 22 mm
2 Threaded rods M 20 x 450 (4 pieces)
3 Hex. nuts M 20 DIN 934-8 (12 pieces)
(Fig. 51)
50
A
B
C
32016
1
2
3
51
