Claas LEXION 480 - Assembling and Installing the Stage 3 Chopper Drive V-Belt Pulley

7.10.18 RHB LEXION 480 - 188 678.1
Chopper drive
Assembling and installing the stage 3 chopper
drive V-belt pulley
CAUTION!
Ensure that all taper ring fasteners and hub
bores have gearbox grease type G 00,
DIN 51502 part no. 411 423.0, applied prior
to installation.

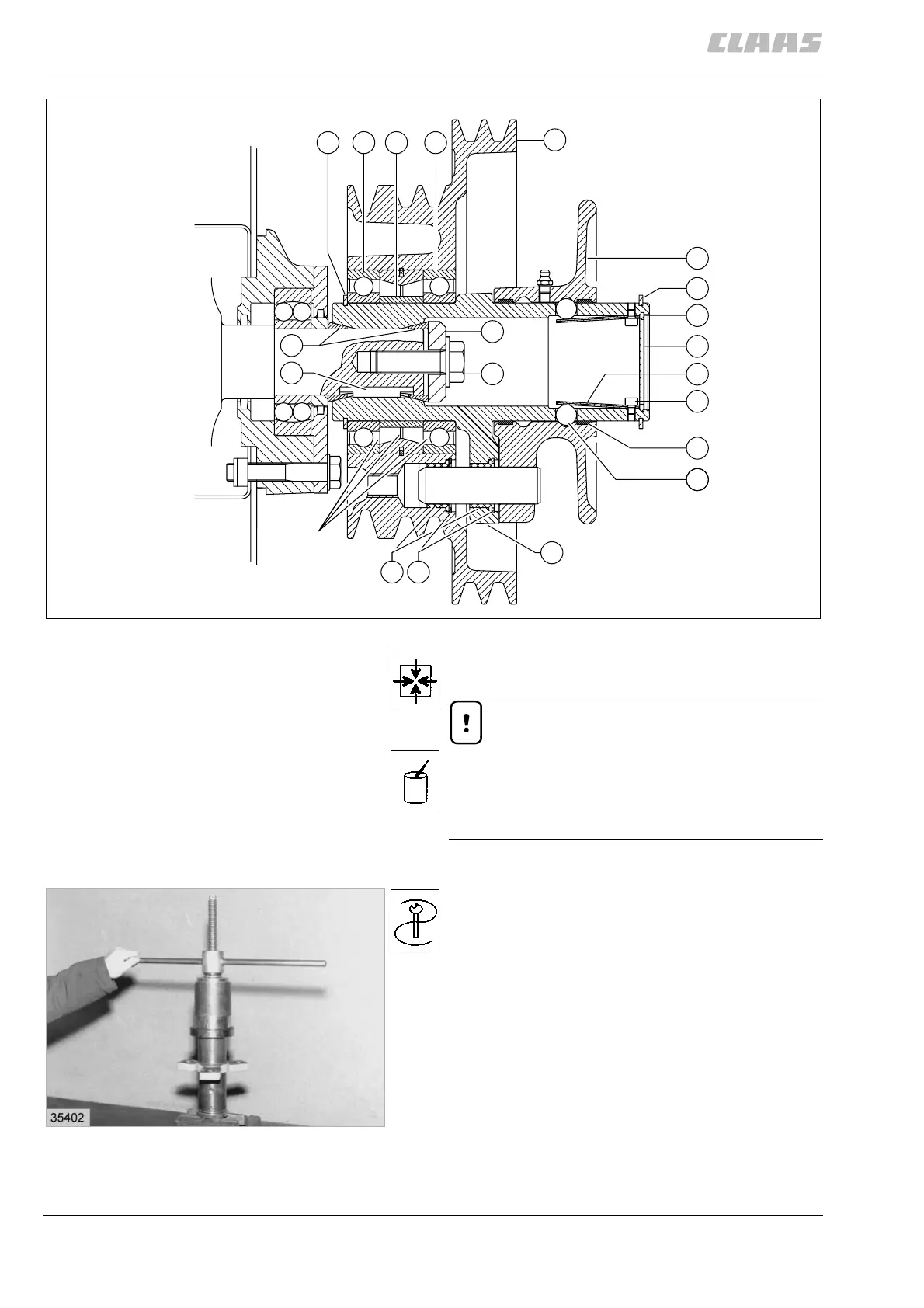

1. Press the deep groove ball bearing (2) on the
hub (4) using the special tool.
(Fig.43,44,45)
44
35401
3
2
13
16
1
2
3
4
8
9
1010
15
5
6
7
11
12
14
17
18
F
45
