7.4.20 RHB LEXION 480 - 188 678.1
Cutterbar drive

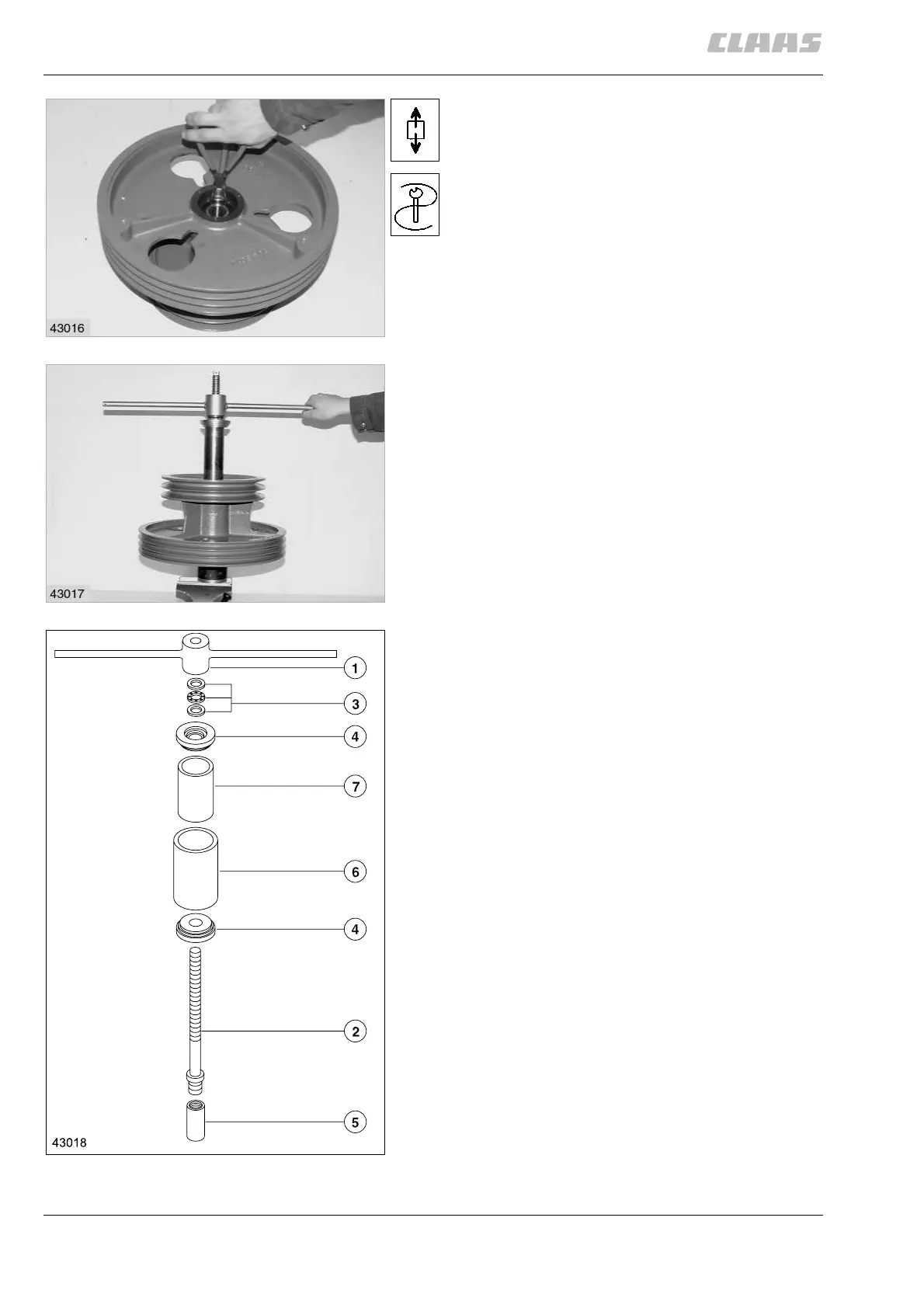

Dismantling the rear pulley of cutterbar drive (1)
(from serial no. ...)
Remove circlip (14).
Push out angular contact ball bearing (13),
intermediate ring (10) and spacer bushing (9), using
the special tool.
(Fig. 53, 54, 55, 58)
Special tool:
1 Lever nut, part no. 181 880.0 – 1 piece
2 Spindle, part no. 181 877.0 – 1 piece
3 Axial grooved ball bearing,
part no. 235 983.0 – 1 piece
4 Locating disc, part no. 181 879.0 – 2 pieces
5 Sleeve, part no. 181 881.1 – 1 piece
6 Tube, outside ∅ 57 mm x 200 mm
(self-sourced) – 1 piece
7 Tube, inside ∅ 80 mm x 100 mm
(self-sourced) – 1 piece
(Fig. 55)
53
54
55
