Claas LEXION 480 - Dismantling the Rear Pulley of Cutterbar Drive

7.4.10 RHB LEXION 480 - 188 678.1
Cutterbar drive

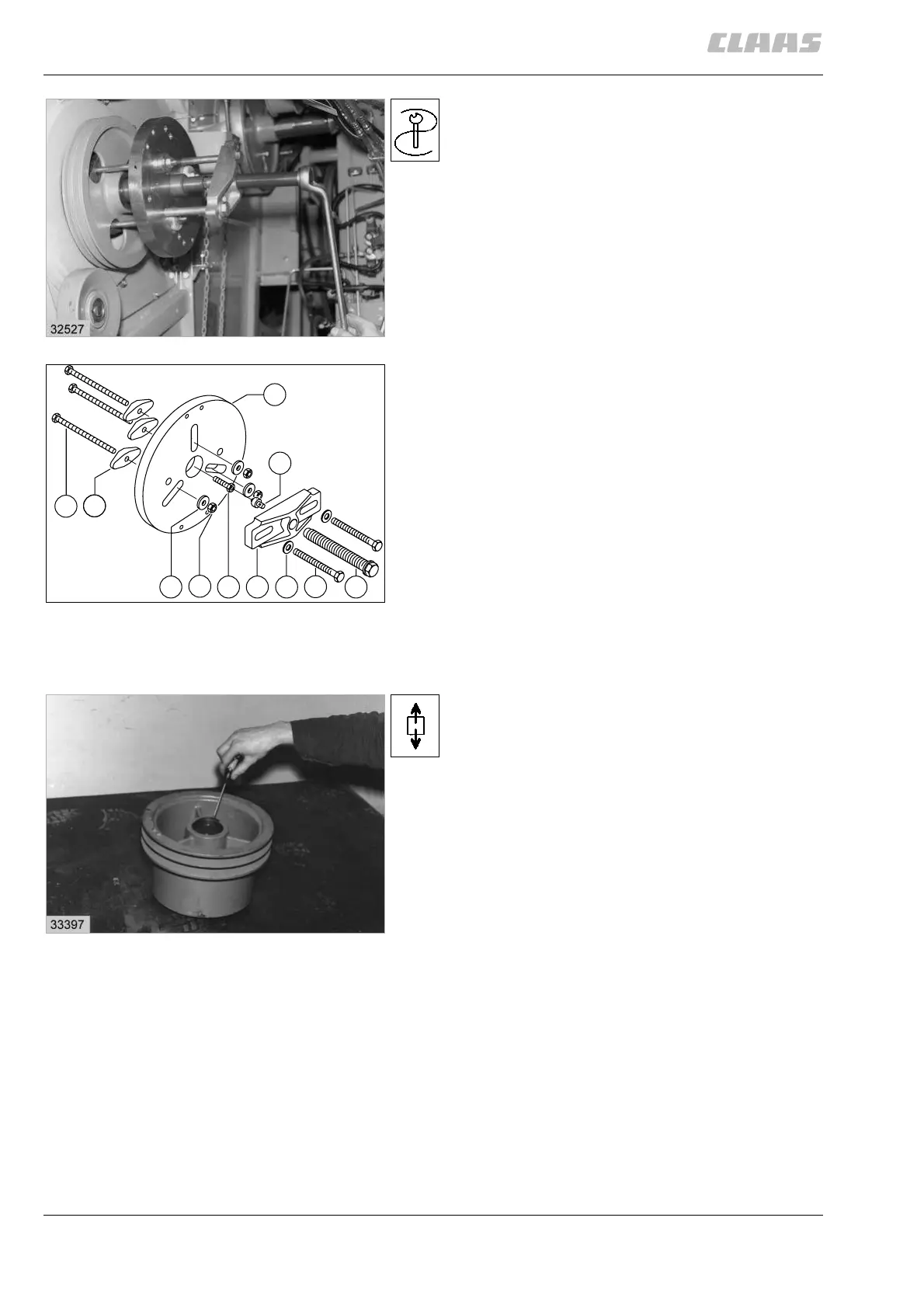

Pull off the cones and the V-belt pulley from the shaft,
using the special tool.
For this, screw a M 12 x 30 head-centred hex. bolt into
the shaft.
(Fig. 26)
Special tool:
1 Puller plate, part no. 181 617.0
2 Puller bridge, part no. 181 800.0
3 Threaded spindle, part no. 181 801.1
4 Centraliser with ball, part no. 181 849.0
5 Hex. bolt M 12 x 30 with centralising head
6 Hex. bolt M 16 x 140, part no. 242 795.0
7 Washer 17, part no. 235 127.2
8 Hex. nut M 12, part no. 236 172.0
9 Washer 13, part no. 236 844.0
10 Puller shoe, part no. 181 836.0
11 Hex. bolt M 12 x 180, part no. 236 302.0
(Fig. 27)
Dismantling the rear pulley of cutterbar drive (1)
(up to serial no. ...)
Remove the circlip.
Remove the snap ring using a screwdriver or a similar
tool.
(Fig. 28)
