Claas LEXION 480 - Installing the Orbitrol

188 678.1 - RHB LEXION 480 2.2.15
Steering
Installing the Orbitrol
ATTENTION!
When assembling any part of the steering
assembly, please ensure that maximum
cleanliness is adhered to.

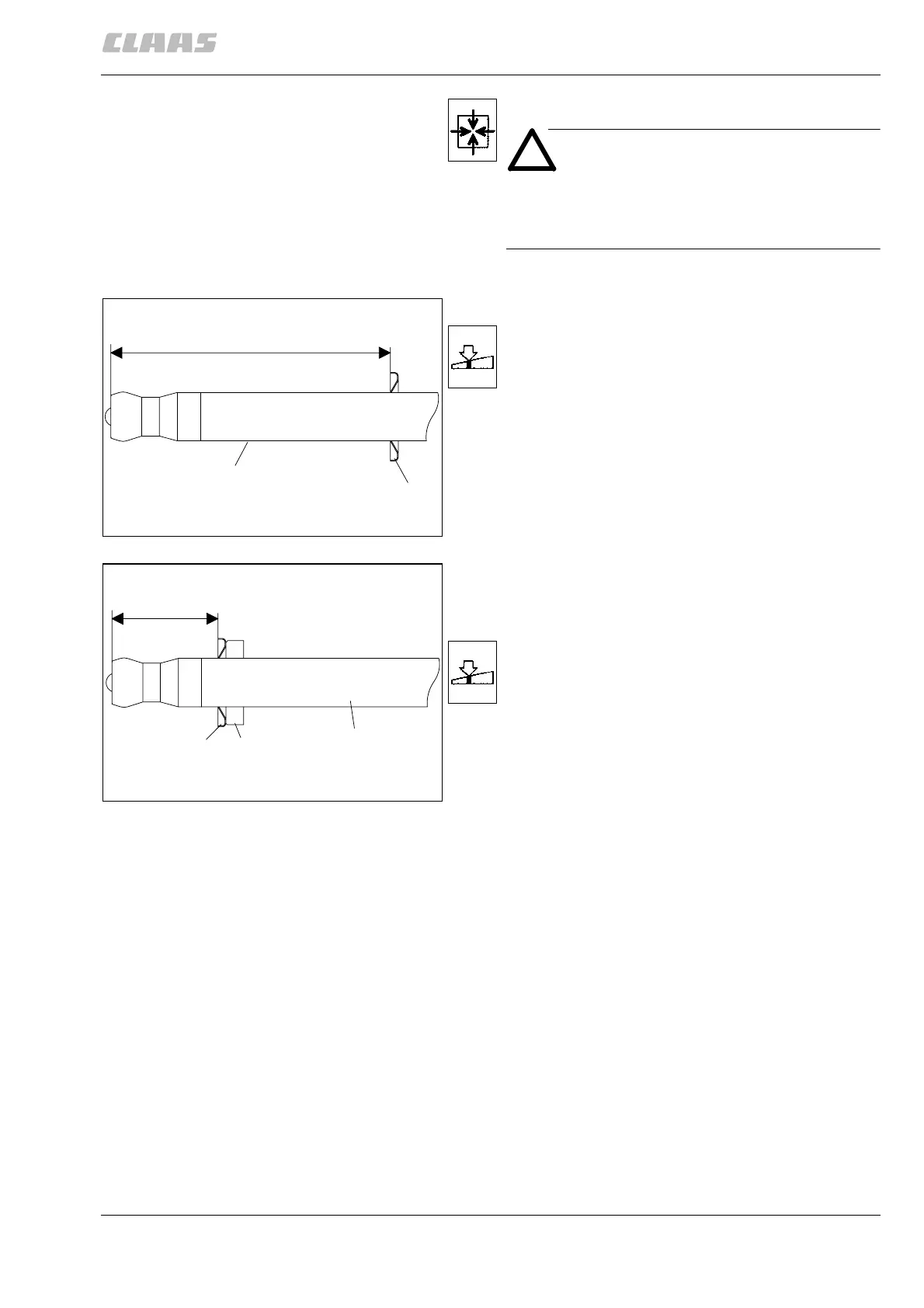

Steering column without Autopilot:
Position the quick-release fastener (A) on the
shaft (W) at (X) = 115.3 mm. Introduce shaft into the
Orbitrol. Push the Orbitrol firmly under the console.
The axial play on the shaft (W) should be approx.
1mm, adjust the quick-release fastener (A) in order to
achieve the setting if required. Bolt the Orbitrol into
place.
Push the rubber cover upwards.
(Fig. 31)
Steering column with Autopilot:
Slide the quick-release fastener (A) and the set
collar (B) onto the shaft (W).
Now position the quick-release fastener (A) on the
shaft at (X) = 43.3 mm.
(Fig. 32)
X
32675
A
W
31
X
32676
A
W
B
32
