Claas LEXION 480 - Right-Hand Drive Belts; Adjusting the Axial Rotor Step Drive (18)

188 678.1 - RHB LEXION 480 7.3.1
Right-hand drive belts
RIGHT-HAND DRIVE BELTS
Adjusting the axial rotor step drive (18)
DANGER!
Carry out the adjustment only with the
engine switched off and the ignition key
removed.

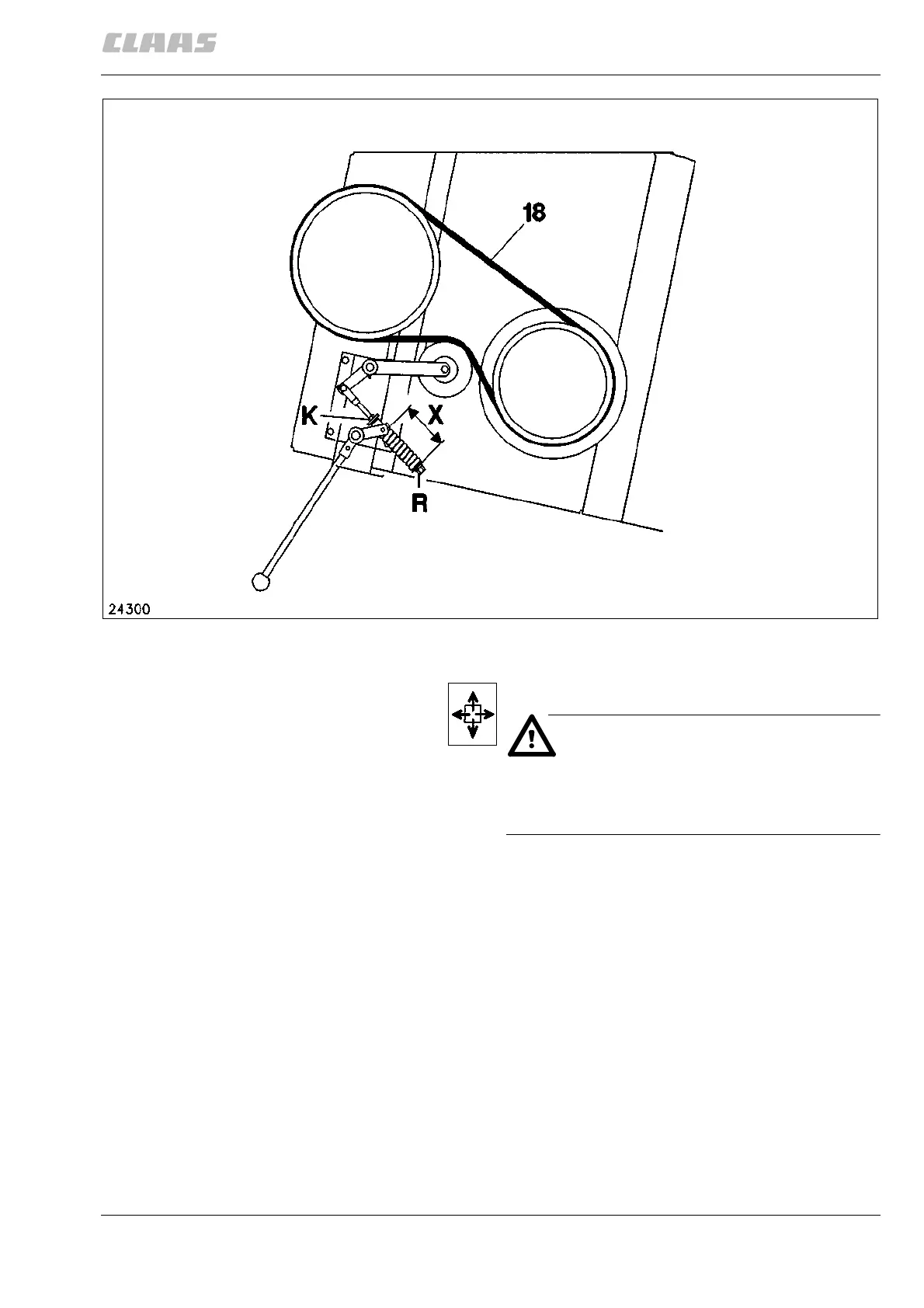

Adjusting the spring-loaded cylinder:
Loosen lock nut (K) and adjust the spring guide
tube (R) so that the dimension (X) is 130 mm with
the nut tightened and the belt tensioned.
(Fig. 1)
1
Right-hand drive belts
