Claas LEXION 480 - Removing the Sieve Pan

188 678.1 - RHB LEXION 480 4.2.17
Sieve pan
Removing the sieve pan
Removing the return pan , see page 4.1.3
Remove upper sieves.
Remove the lower sieves.
Remove the 3-D upper sieve frame.

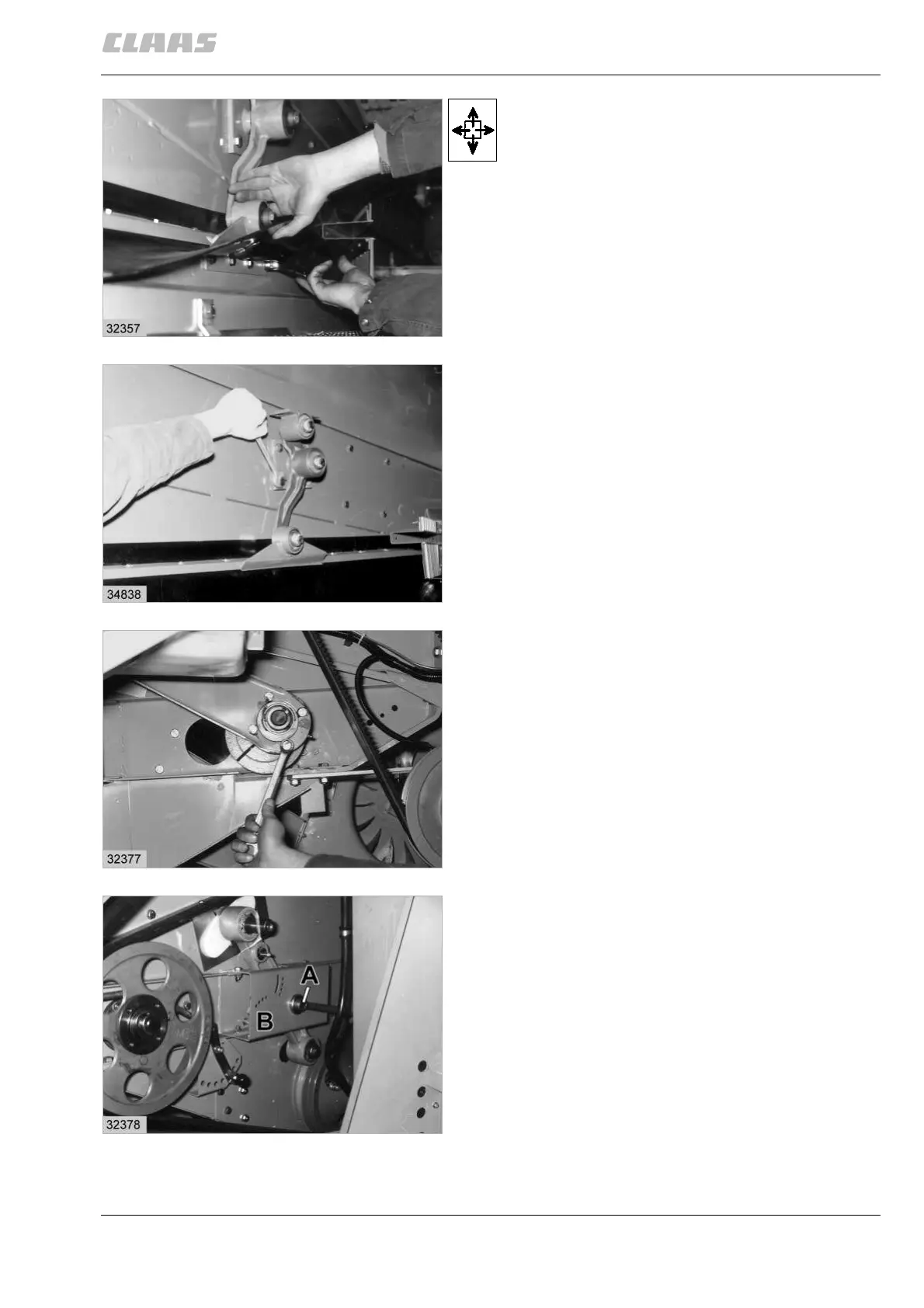

Unscrew the double rocker arms on the left-hand and
right-hand sides of the sieve pan frame.
(Fig. 49)
Unscrew the rocker arm assemblies completely from
the sidewall.
(Fig. 50)
Unscrew and pull off the connecting rods on left-hand
and right-hand sides of the combine.
(Fig. 51)
Remove the hex. bolt from the main rocker arm at (A)
on both sides.
Unscrew bridge (B).
(Fig. 52)
49
50
51
52
