Claas LEXION 480 - Removing the Impeller Drive Belt (4)

188 678.1 - RHB LEXION 480 7.2.7
Left-hand drive belts

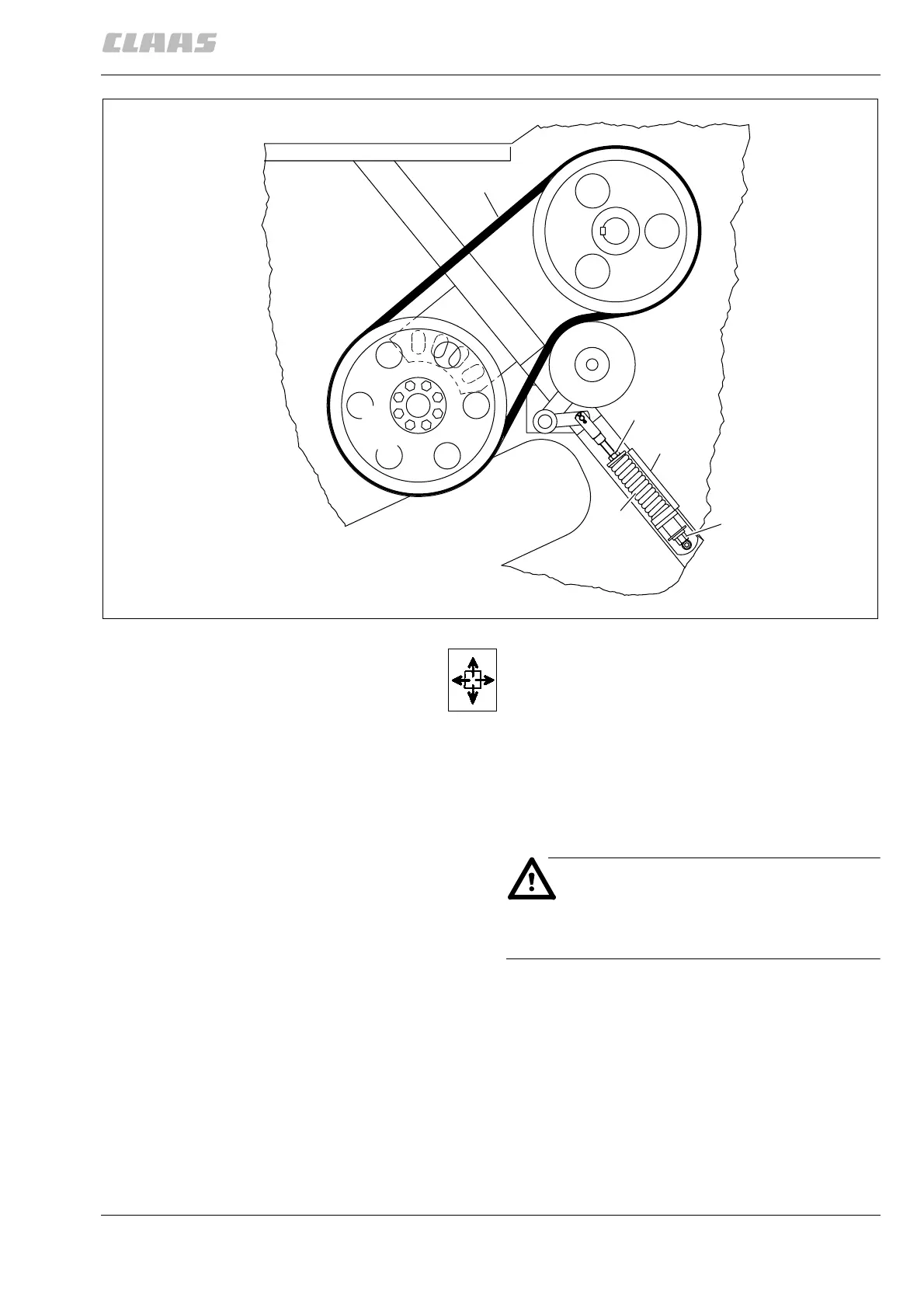

Removing the impeller drive belt (4)
Remove cutterbar intermediate drive belt (5) at the
bottom – see page 7.2.9,
Removing the cutterbar
intermediate drive belt (5)
.
Remove the cutterbar drive belt (1) at the top – see
page 7.2.1,
Removing the cutterbar drive belt (1) (Cut-
terbar drive without variable-speed drive)
.
Relieving the tension of impeller drive belt (4):
(Push-type cylinder)
DANGER!
Follow the correct order of assembly –
Danger of injury!
14
33322
