Claas LEXION 480 - Installing the Intercooler; Removing the Radiator

188 678.1 - RHB LEXION 480 10.1.3
Cooling system
Installing the intercooler
1. Lift the intercooler into the machine.
(Fig. 6)
2. Bolt down brackets (S and H) and the stop
plate (A).
(Fig. 5)
3. Swing the oil cooler back into place. Refit the
condenser completely with the hoses. Fit the
hose clamps.
(Fig. 4)
4. Bolt down the cover (B) of the air intake box.
(Fig. 3)
5. Fasten the rotary screen in the pivot and secure
with a bolt. Insert the gas strut bolt and secure
with a split pin.
(Fig. 2)
6. Connect the two intake pipes and tighten the
jubilee clips.
(Fig. 1)

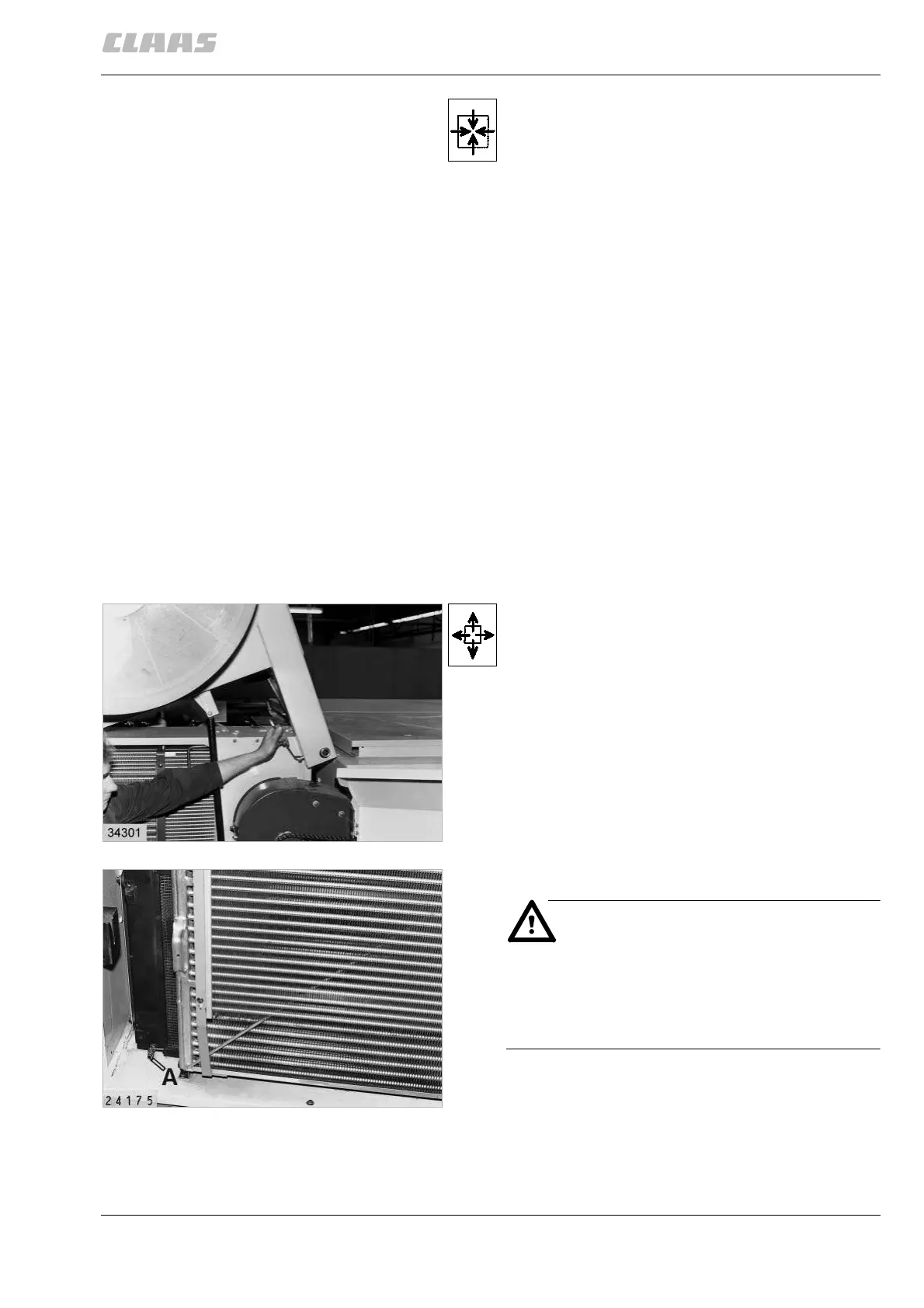

Removing the radiator
Fold up the rotary screen.
Remove the pin from the gas strut.
Remove the bolt from the bearing and remove the
rotary screen completely.
(Fig. 7)
Drain the water from the radiator at tap (A).
DANGER!
Take care when opening the hot radiator!
☞ Only open the tap to the end stop only
and let the overpressure escape first –
Danger of burns!
(Fig. 8)
7
8
