Claas LEXION 480 - Low-Pressure Solenoid Valve Block, Disassembled

9.8.22 RHB LEXION 480 - 188 678.1
Valve combinations

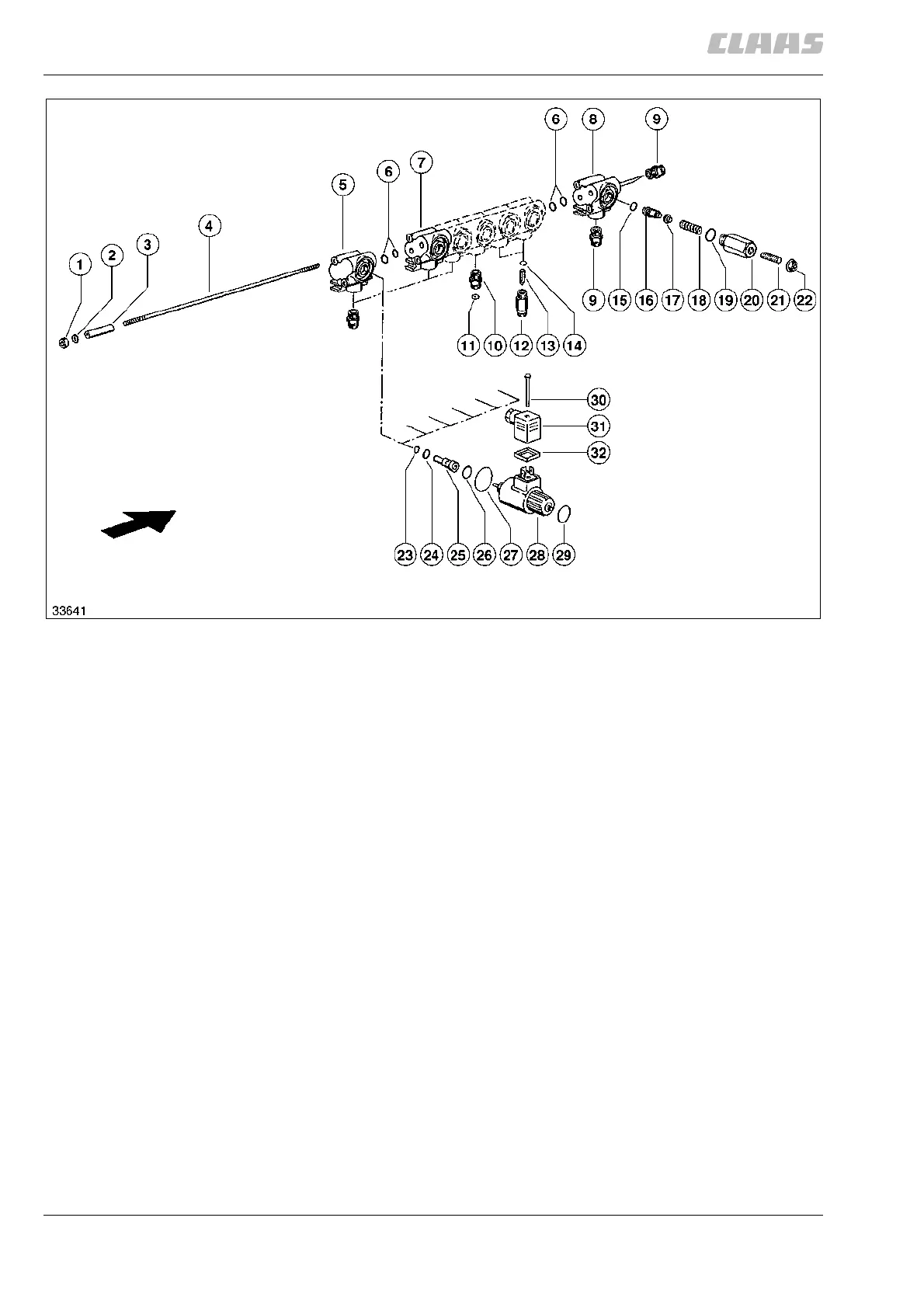

Low-pressure solenoid valve block, disassembled
1 Hex. nut M 6 DIN 934 – 4 pieces
2 Washer 6.4 DIN 125 – 4 pieces
3 Spacer tube – 2 pieces
4 Threaded rod – 2 pieces
5 Assembled low-pressure valve
6 O-ring 8.3 x 2.4 - N DIN 3771 – 12 pieces
7 Assembled low-pressure valve – 5 pieces
8 Low-pressure pressure relief valve
9 Male connector – 3 pieces
O-ring 9.4 x 2.1 - N DIN 3771 – 3 pieces
10 Male connector L 8 F-M DIN 3901 – 4 pieces
11 Orifice plate
12 Restricted one way valve – 2 pieces
13 Orifice plate – 2 pieces
14 Snap ring B 7 – 2 pieces
15 O-ring 10 x 1.5 - N DIN 3771
16 Low-pressure PRV insert
17 Spring plate
18 Compression spring
19 O-ring 13 x 2 - N DIN 3771
20 Cap
21 Set screw M 8 x 1 x 25 DIN 914
22 Flange nut
23 O-ring 6.07 x 1.78 - N DIN 3771 – 6 pieces
24 O-ring 10 x 1.5 - N DIN 3771 – 6 pieces
25 Valve insert – 6 pieces
26 O-ring 13 x 2 - N DIN 3771 – 6 pieces
27 O-ring 30 x 1.5 - N DIN 3771 – 6 pieces
28 Solenoid – 2 mm / 12 V DC / 100 % OLF –
6pieces
29 O-ring 18 x 2 - N DIN 3771 – 6 pieces
30 Cheese-head screw M 3 x 35 DIN 84 – 6 pieces
31 Power supply plug – 6 pieces
32 Rectangular seal – 6 pieces
(Fig. 47)
47
Valve combinations
