Claas LEXION 480 - Rear Pulley of Cutterbar Drive (1), Disassembled

7.4.12 RHB LEXION 480 - 188 678.1
Cutterbar drive

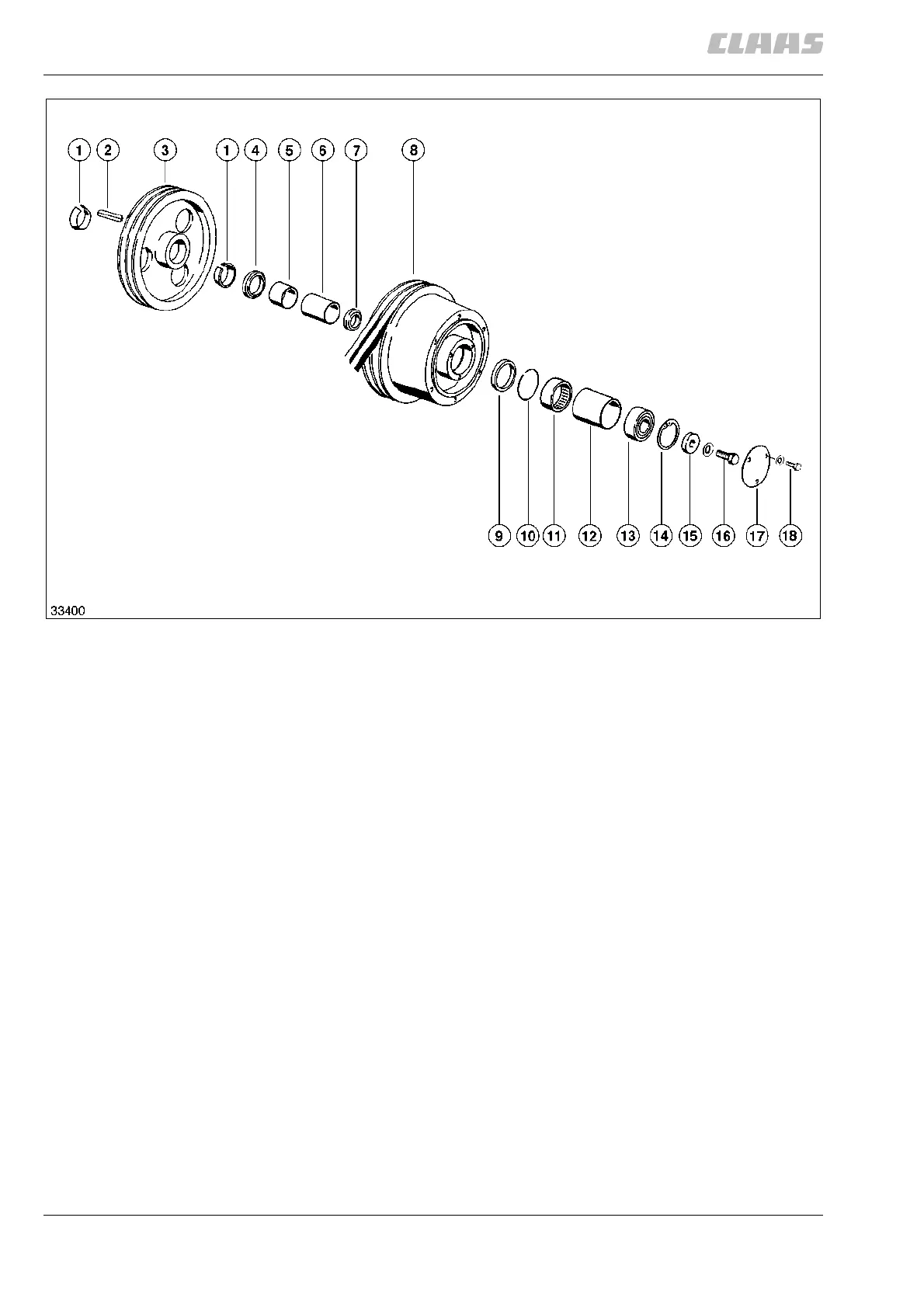

Rear pulley of cutterbar drive (1), disassembled:
(up to serial no. ...)
1 Tapered ring
2 Parallel key A 14 x 9 x 56 DIN 6885
3 V-belt pulley
4 Spacer ring
5 Inner ring Ir 50 x 58 x 40
6Spacer sleeve
7 Intermediate ring
8 V-belt pulley
9 Shaft seal A 58 x 72 x 8 DIN 3760
10 Snap ring
11 Needle bearing RNA 4910
12 Spacer bushing (up to serial no. …)
13 Angular contact ball bearing 3306 RS / C3
DIN 628
14 Circlip 72 x 2.5 DIN 472
15 Washer
16 Up to serial no. …:
Hex. bolt M 12 x 35 DIN 933-10.9
Contact washer A 12
From serial no. …:
Hex. bolt M 16 x 60 MK DIN 931-10.9
17 Cover
18 Hex. bolt M 6 x 12 DIN 933-8.8
Contact washer A 6
(Fig. 31)
31
Cutterbar drive
