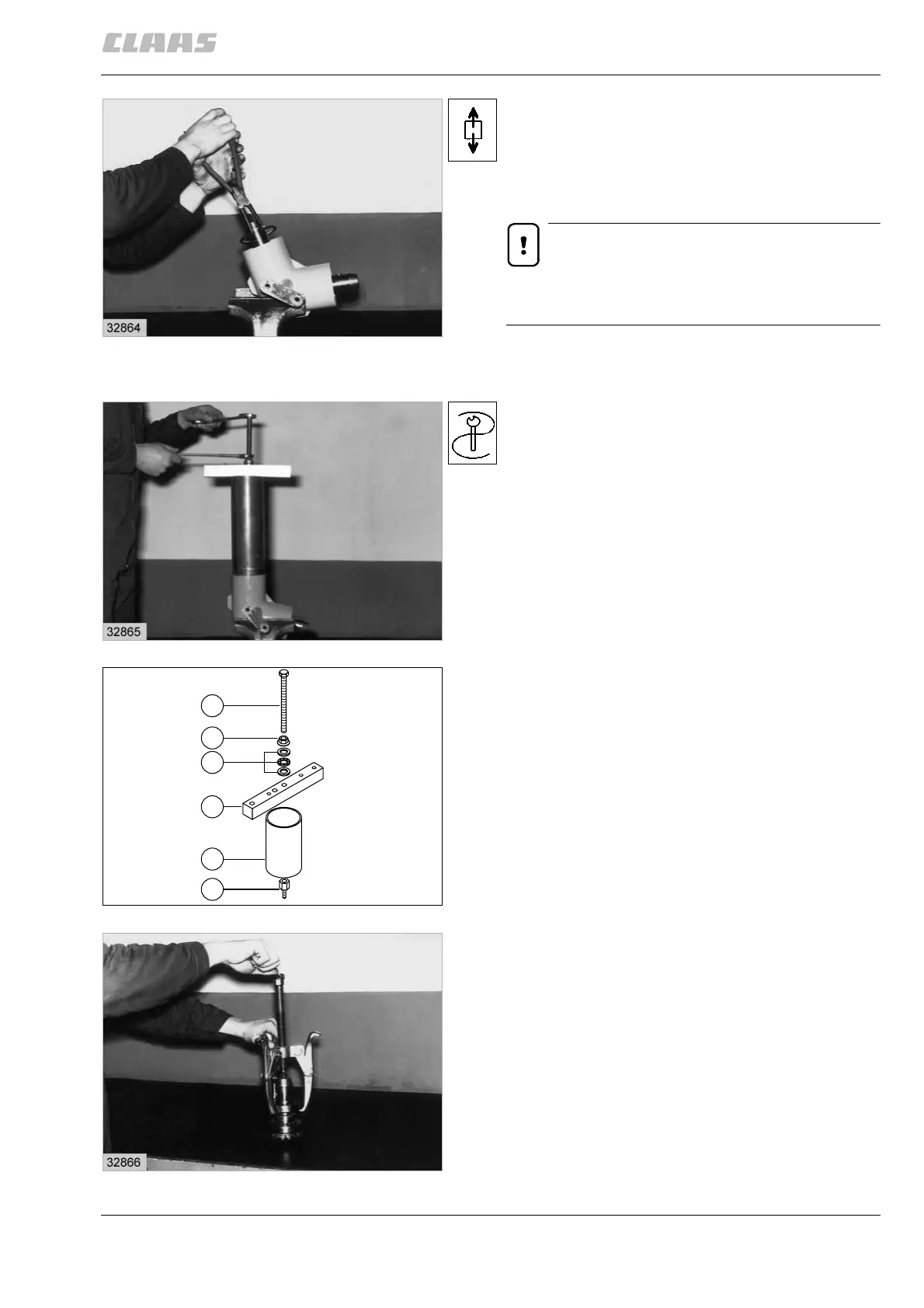

Grain tank unloading
Disassembling the upper grain tank unloading
angle drive
Remove the drive pins.
Remove the circlip. Remove the shims and the bearing
seal ring.
CAUTION!
Observe number, position and thickness of
shims.
(Fig. 102)
Using the special tool, pull the complete bevel gear out
of the housing.
(Fig. 103)
Special tool:
1 Adapter section M 10, part no. 181 609.0
2 Tube ∅ 115 x ∅ 105 x 200 long
(self-sourced)
3 Puller bridge, part no. 181 816.3
4 Axial grooved ball bearing, part no. 177 899.0
5 Hex. nut with flange, part no. 244 059.0
6 Hex. bolt M 16 x 300, part no. 237 375.1
(Fig. 104)
Pull off the deep groove ball bearing and remove the
circlips.
(Fig. 105)
102
103
1
2
3
4
5
6
32849
104
105
