3.5.12 RHB LEXION 480 - 188 678.1
Impeller
Removing the impeller shaft
(up to serial no. ...)
Removing the impeller , see page 3.5.6
Removing the left-hand impeller bearing , see
page 3.5.3

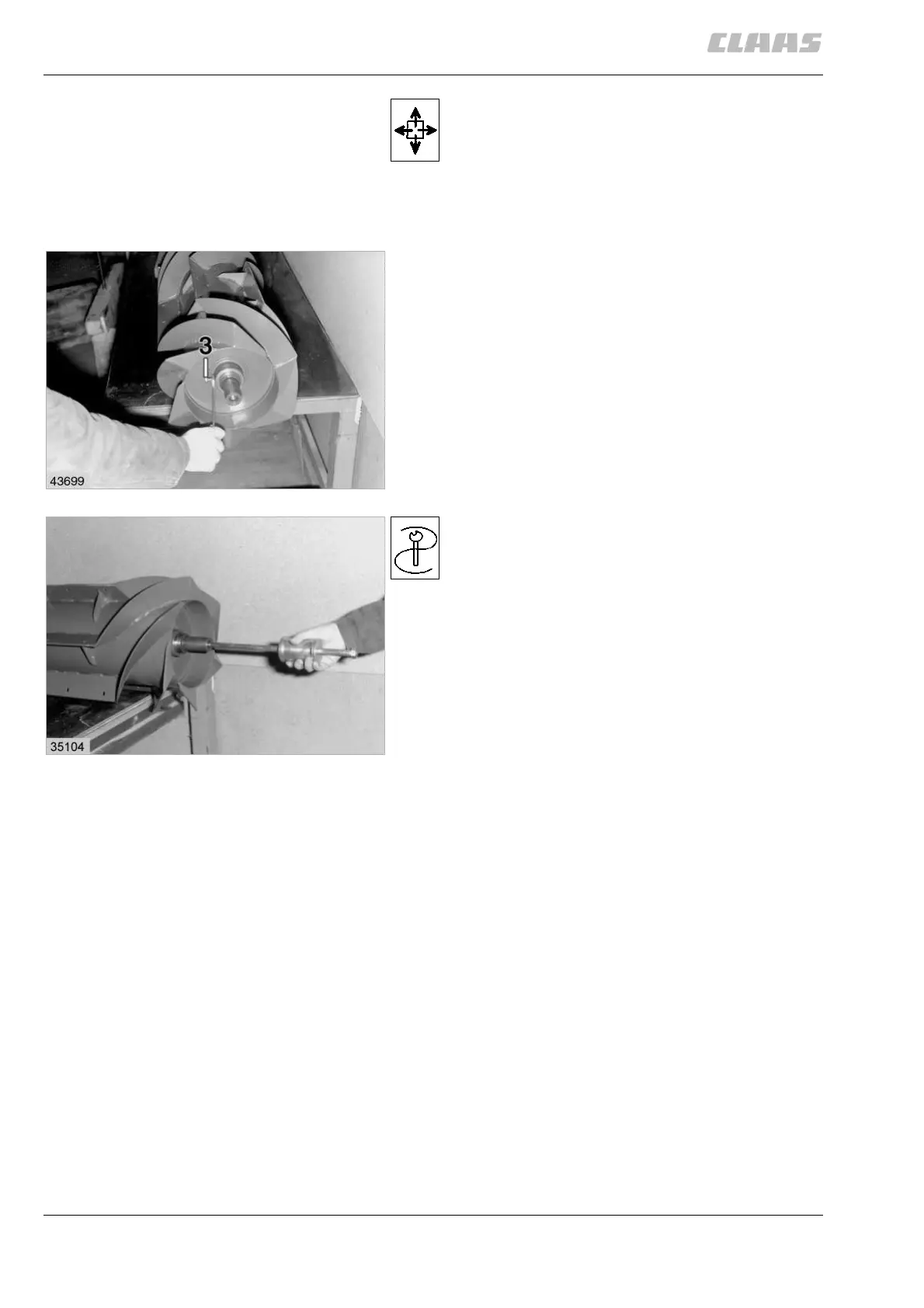

Remove the impeller shaft. To do this, unscrew the
hex. bolt (3).
(Fig. 29)
Clean the impeller shaft and pull out shaft with special
tool.
Special tool:
Tie rod 450 mm part no. 181 605.0
Striking tool part no. 181 604.0
(Fig. 30)
29
30
