188 678.1 - RHB LEXION 480 7.19.3
Manual gearbox

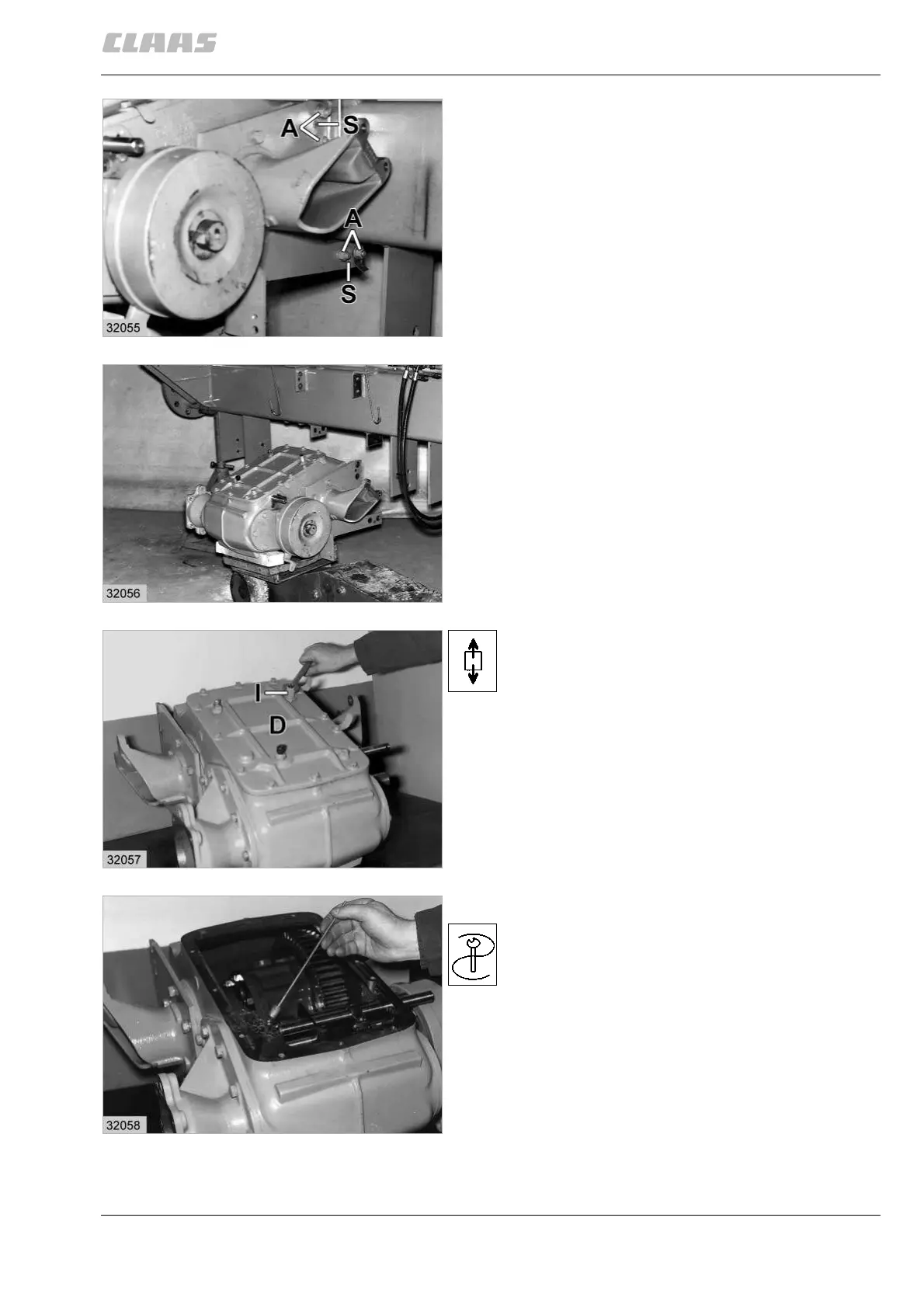

Safely support the manual gearbox with a mobile jack.
Drive out the expansion pins (S) on both sides and
unscrew the hex. bolts (A).
Slowly lower the gearbox and remove it to the
right-hand side of the machine.
(Fig. 7, 8)
Disassembling the manual gearbox
Removing the shifter rails
Remove manual gearbox.
Remove the magnetic pick-up (I).
Unscrew the gearbox cover (D).
(Fig. 9)
Remove the compression springs.
Remove the arresting balls with the magnetic rod
(M, special tool part no. 171 842.0).
(Fig. 10)
7
8
9
10
