Claas LEXION 480 - Grain Tank Unloading; Removing the Grain Tank Cross Auger

188 678.1 - RHB LEXION 480 5.3.1
Grain tank unloading
GRAIN TANK UNLOADING
Removing the grain tank cross auger

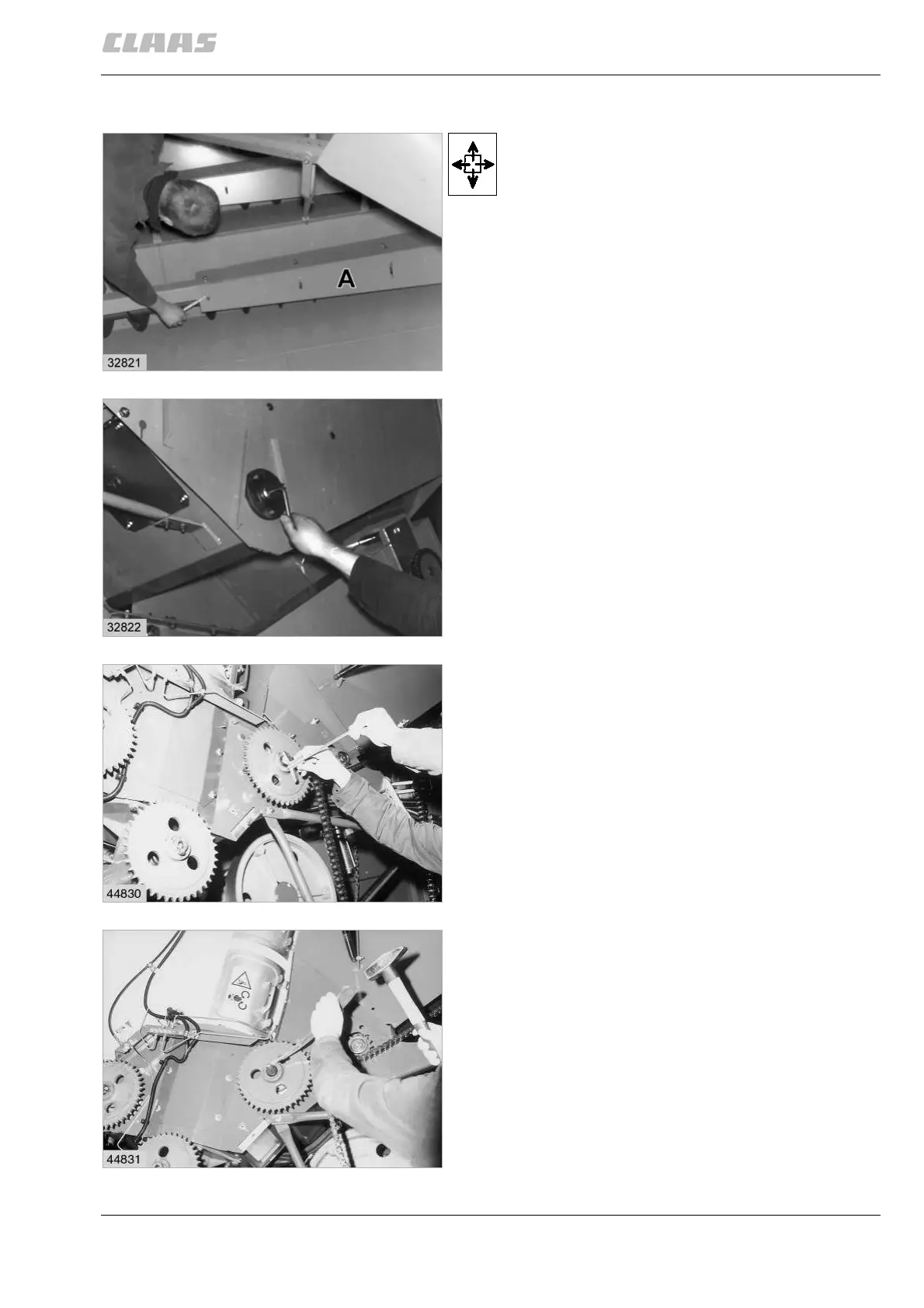

Remove the conical graduation plates (A) located
inside the grain tank above the cross augers.
(Fig. 1)
Remove the bolts from the face end of cross augers on
the right-hand side of the combine.
(Fig. 2)
From serial no. …:
On the left-hand side of the combine, release the
tension of the grain tank unloading drive chain and
remove chain – see page 7.2.34,
Removing the grain
tank unloading drive chain (17)
.
Measure the clearance between shaft end and
sprocket.
(Fig. 3)
From serial no. …:
Remove gib head key using a key extractor.
(Fig. 4)
1
2
3
4
Grain tank unloading
