7.1.2 RHB LEXION 480 - 188 678.1

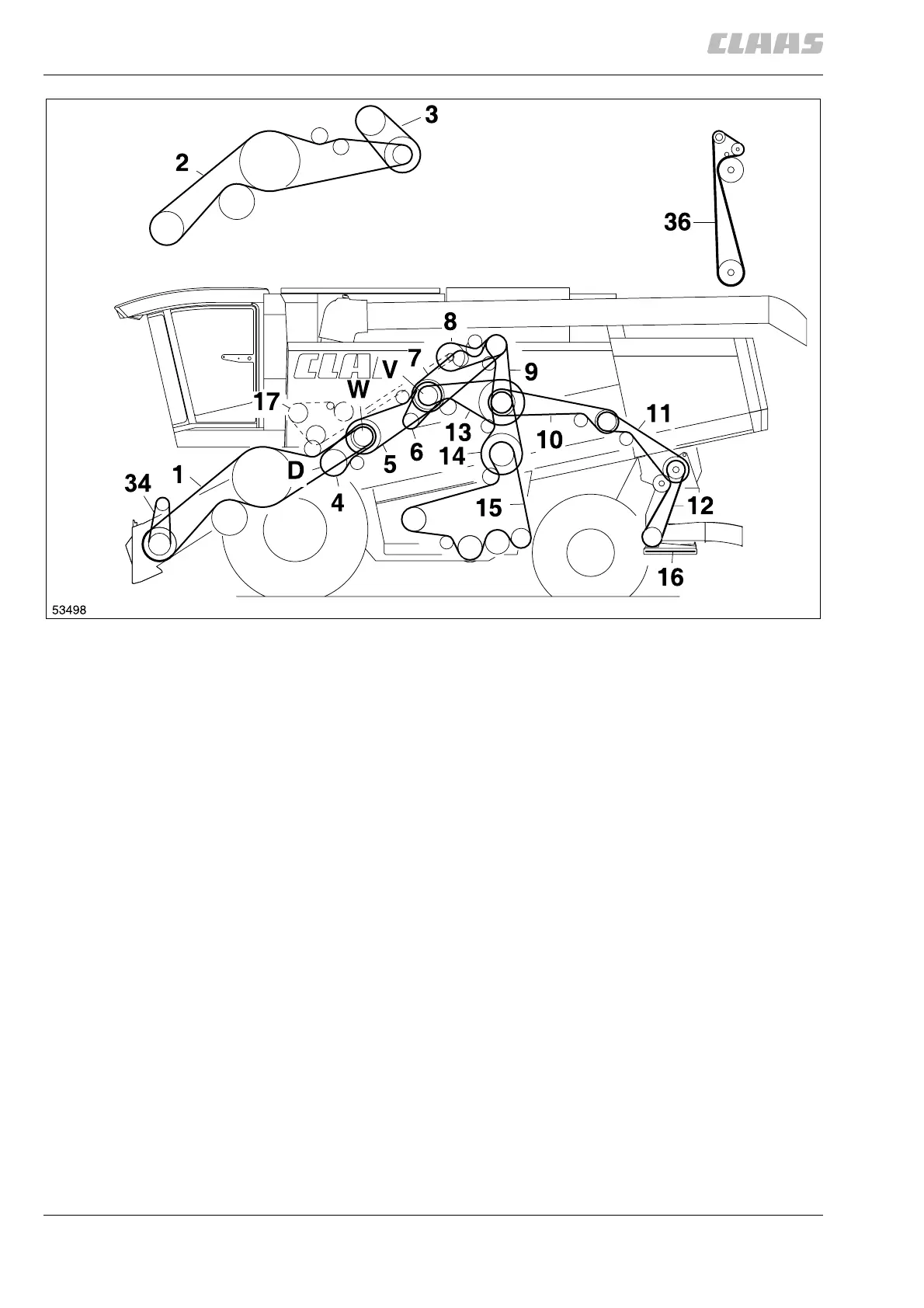

Drive diagram
DRIVE DIAGRAM
Drive diagram, left-hand
1 Cutterbar drive
2 Cutterbar drive with variable-speed drive
(optional equipment)
3 Cutterbar variable-speed drive
(optional equipment)
4 Impeller drive
5 Intermediate drive for cutterbar
6 Uni-spreader hydraulic pump drive (swing)
7 Main intermediate drive
8 Intermediate drive to grain tank unloading system
9 Intermediate drive to straw chopper
10 Straw chopper and uni-spreader drive
11 Straw chopper and uni-spreader drive
12 Drive of uni-spreader intermediate drive
13 Drive of sieve pan intermediate drive
14 Drive of sieve pan intermediate drive
15 Sieve pan drive
16 Uni-spreader drive
17 Grain tank unloading auger drive
34 Suction blower drive (feed rake conveyor)
36 Straw spreader drive
W = Impeller
V = Main intermediate drive
(Fig. 1)
1
Drive diagram
