Claas LEXION 480 - Uni-Spreader; Removing the Fan Blade Bearings

188 678.1 - RHB LEXION 480 6.2.1
Uni-spreader
UNI-SPREADER
Removing the fan blade bearings
Removing the uni-spreader intermediate drive belt
(12)
, see page 7.2.23
Removing the uni-spreader drive belt (16) , see
page 7.2.32
Place valve combination part no. 181 619.0 on the
hydraulic tank for creating a vacuum inside the tank.

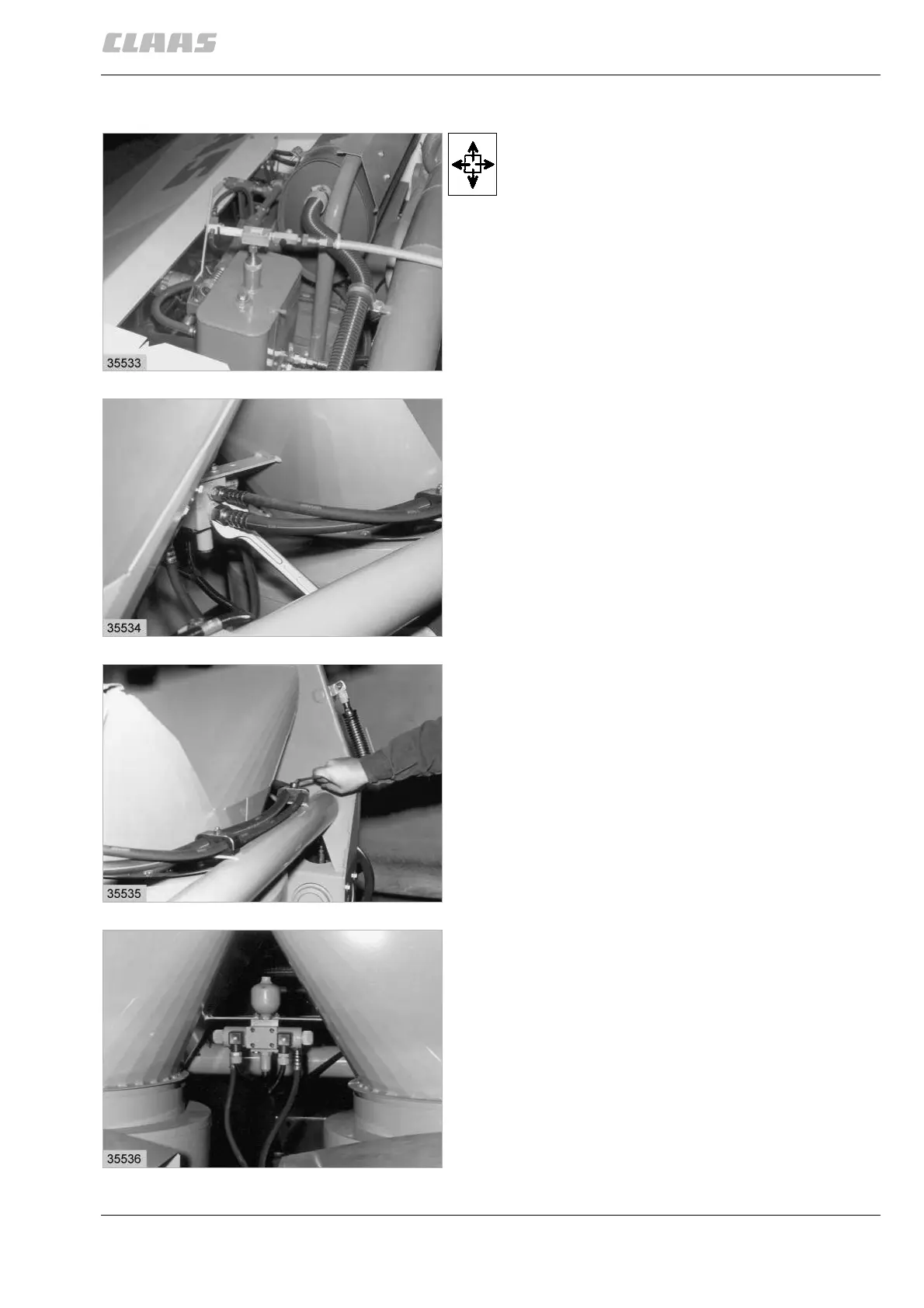

(Fig. 1)
Remove the hydraulic hoses and seal the connections
tightly with plastic caps.
(Fig. 2)
Remove the hose clamps.
(Fig. 3)
Disconnect the cable plug from the 4/3 way valve.
Unscrew the cable clamps up to the machine housing.
(Fig. 4)
1
2
3
4
Uni-spreader
