4.3.4 RHB LEXION 480 - 188 678.1
Preparation floor
Installing the preparation floor
1. Bolt the rear stepped preparation floor sections
into the preparation floor.
2. Lift the preparation floor into the combine from the
rear and ensure that the rubber sealing strips (2)
on the side are not bent down.
3. Bolt journals (6) to the preparation floor with
hex. bolts (7).
Tightening torque = 110 Nm
4. Bolt rocker arms (8) to the front of the preparation
floor and to the combine frame, but do not tighten
the bolts at this stage.
CAUTION!
The nuts (10) for the front rocker arms (8) must
not be tightened until the sieve pan has been
adjusted.
5. Install sealing plates (11) and push on the gasket
with spacer ring.
6. Install flap (15) together with the hinges.
7. Push the front stepped preparation floor sections
into the preparation floor from the front. Raise the
flap and bolt on.

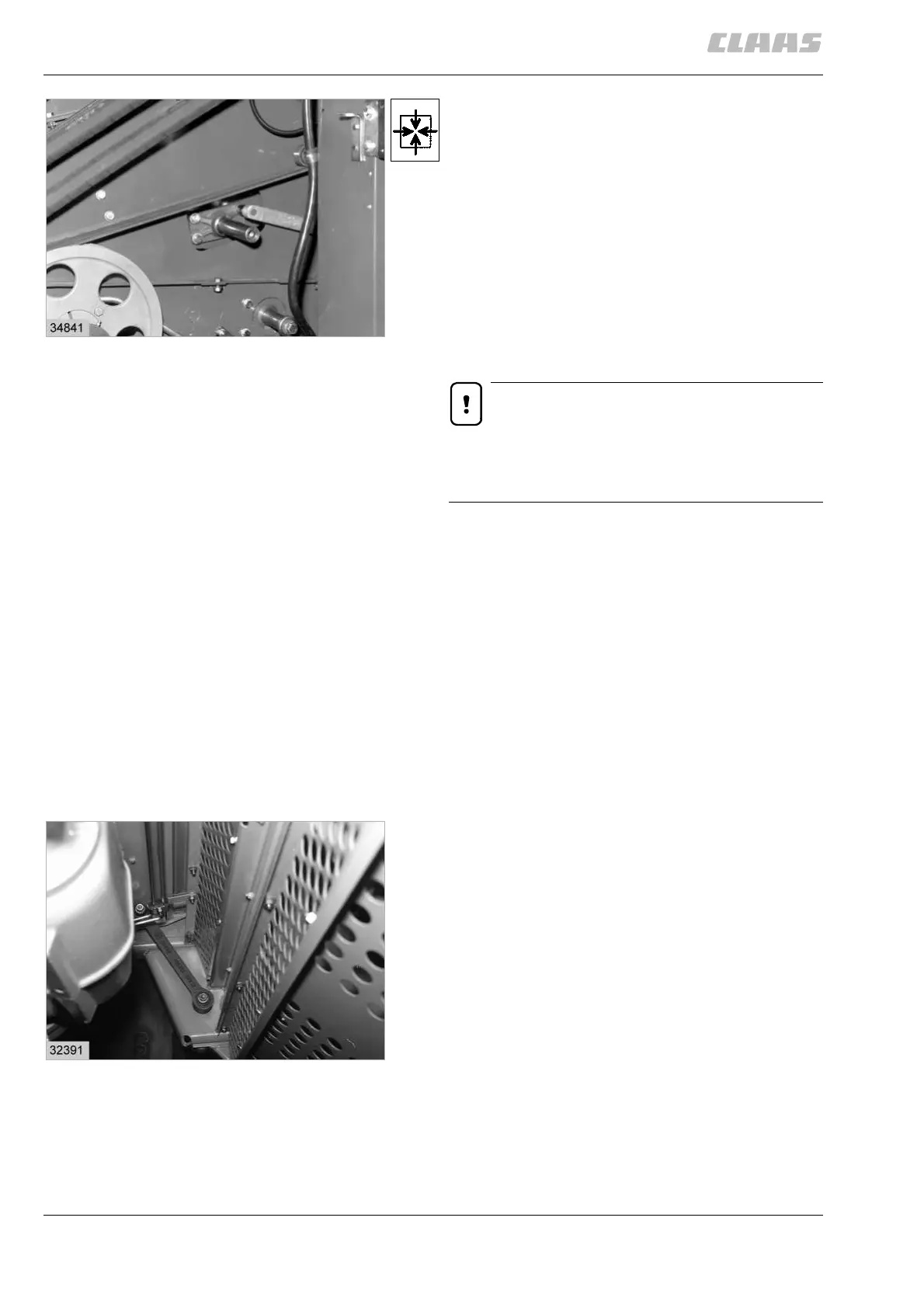

(Fig. 8, 9)
8.
Installing the sieve pan
, see page 4.2.21
9.
Checking and adjusting the alignment of prepara-
tion floor and sieve pan
, see page 4.2.24
10. On both side of the combine, tighten the front
rocker arms (8) on the preparation floor and on
the machine frame to 45 Nm.
(Fig. 10)
9
10
Preparation floor
