Claas LEXION 480 - Main Valve, Disassembled

9.8.16 RHB LEXION 480 - 188 678.1
Valve combinations

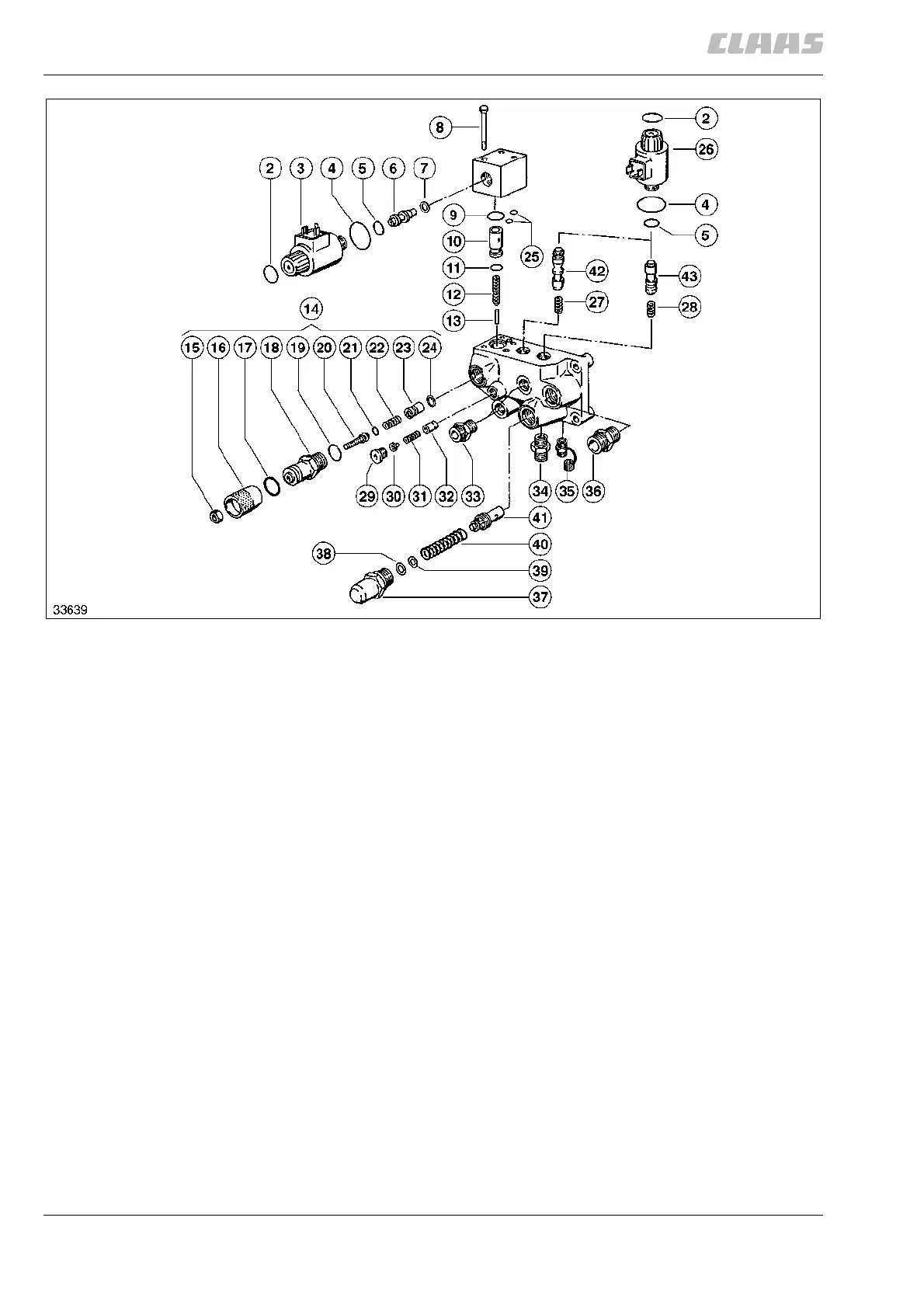

Main valve, disassembled
1 Base unit
2 O-ring 22 x 2 - N DIN 3771 – 3 pieces
3 Solenoid 3 mm / 12 V DC / 60 % OLF / F
4 O-ring 40 x 1.5 - N DIN 3771 – 3 pieces
5 O-ring 15.4 x 2.1 - N DIN 3771 – 3 pieces
6Valve insert
7Seal
8 Hex. bolt M 6 x 55 DIN 931 – 3 pieces
9 O-ring 19.3 x 2.4 - N DIN 3771
10 Valve insert
11 O-ring 14 x 2 - N DIN 3771
12 Compression spring
13 Expansion pin 5 x 20 - B DIN 8752
14 Flow control valve
15 Hex. nut M 10 DIN 934
16 Knob
17 O-ring 19 x 3.5 - N DIN 3771
18 Threaded insert
19 O-ring 19.4 x 2.1 - N DIN 3771
20 Ram
21 O-ring 8.3 x 2.4 - N DIN 3771
22 Compression spring
23 Pressure balance
24 Circlip 15 x 1 DIN 472
25 O-ring 6 x 2 - N DIN 3771 – 2 pieces
26 Solenoid 3 mm / 12 V DC / 60 % OLF – 2 pieces
27 Compression spring
28 Compression spring
29 Screw plug VSTI M 14 x 1.5 - OR
30 Spring guide
31 Compression spring
32 Non-return valve
33 Male connector L 15 F-M DIN 3901 – 2 pieces
O-ring 15.4 x 2.1 - N DIN 3771 – 2 pieces
34 Male connector L 10 F-M 18 x 1.5 DIN 3901
35 Mini test port M 12 x 1.5
36 Male connector L 18 F-M DIN 3901
O-ring 19.4 x 2.1 - N DIN 3771
37 Spring housing
38 Shim 10 x 16 x 0.5 DIN 988 – 3 pieces
39 Supporting ring S 10 x 16 x 1.2
DIN 988 – 2 pieces
40 Compression spring
41 Valve
42 Valve insert
43 Valve insert
(Fig. 32)
32
Valve combinations
