The 3 parameters "Sheet thickness", "Aset" and "Vset" serve as orientation
to select suitable welding parameters. Due to the synergy characteristic
curves used, the parameters for the "Sheet thickness", "Aset" and "Vset" are
calculated on the basis of the wire speed value.
• The "Sheet thickness" display shows the possible sheet thickness to
be welded. It can only be used as a rough reference to determine the
correct parameters. The sheet thickness refers to a fillet weld.
• The display "Aset" shows the welding current to be expected. Since
this is a calculated value, the real welding current may differ from the
pre-announcement!
• The display "Vset" shows the welding voltage to be expected. Since this
value has been calculated, the real welding voltage may differ from the
display!
Version 2
In the lower part of the display appears a zoomed version of the values
"ArcLength" and "ArcDynamic", see Figure 28.
Variant 3
If you are in Job mode, the "Job number" and "Job name" are displayed
instead of "ArcLength" and "ArcDynamic".
Synergie
Betriebs
-
art
Verfahren
Funktion
M A I N
Program
-
mieren
Messwerte
Anzeige

Puls 4 -Takt
Dyn.
8.5 m / min
-2
4
V
0
A
1.2 mm Fe
82% Argon 18% Co
2
0.0
C - Start
Menü1 Anzeige 2 v1.3.xx
1

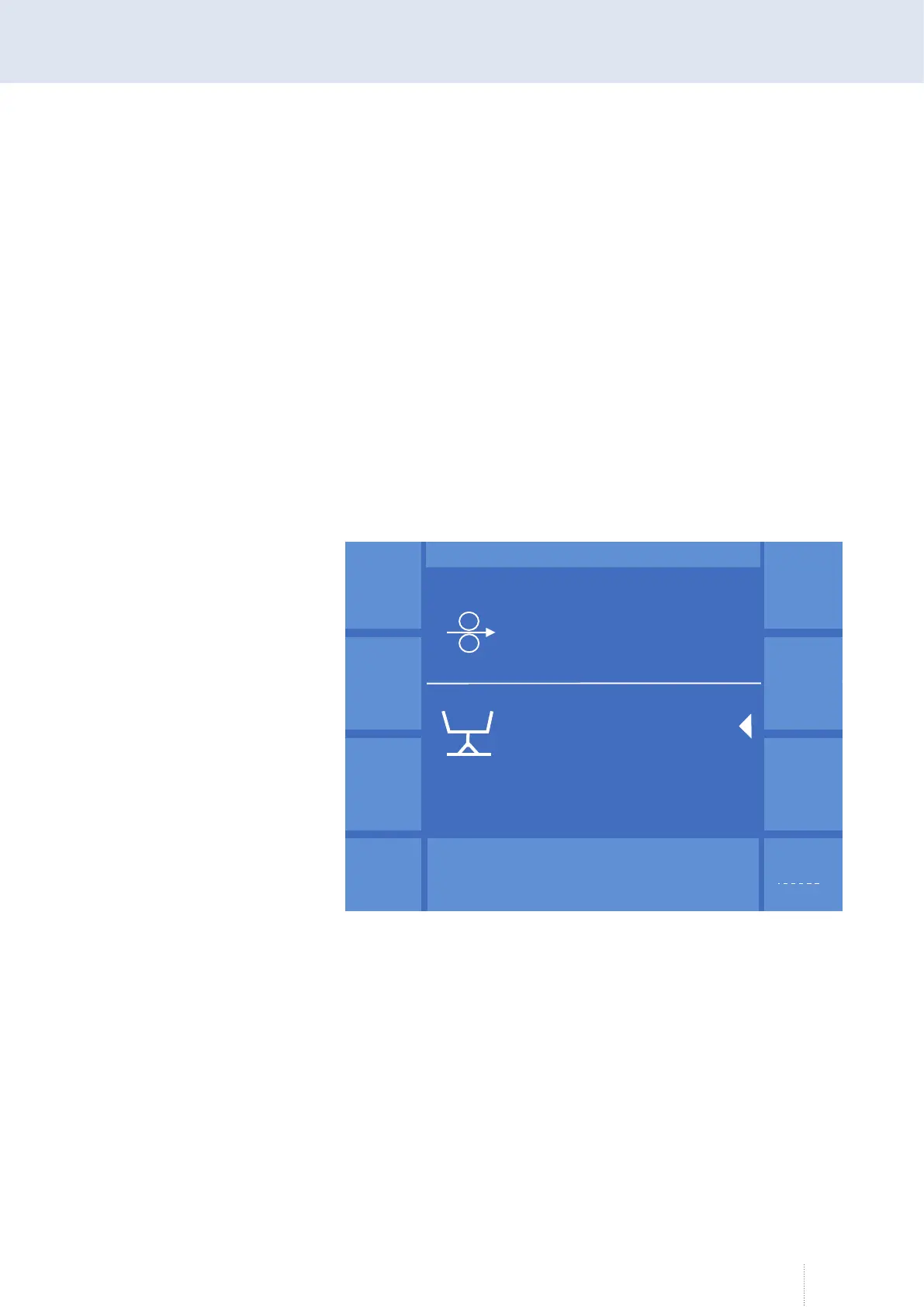

Figure 28. Display variant 2
