AMF26-P, SW version 2.4, ©ComAp – January 2016 38
AMF26-P-2.4 Reference Guide.pdf

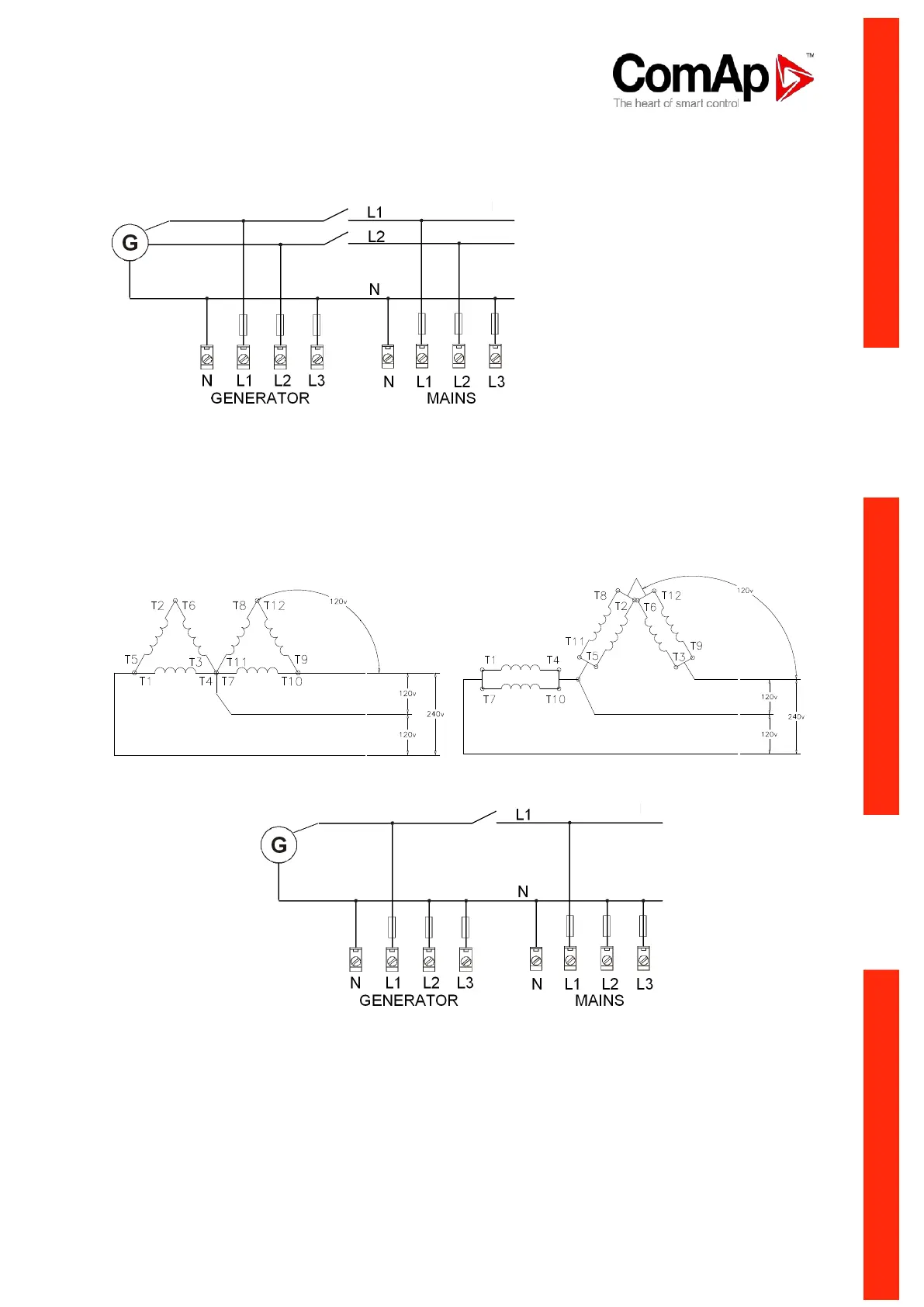

ConnectionType: Split Phase
Single-phase measurement – 1PH
Split Phase
– DOUBLE DELTA Connection – ZIG ZAG (DOG LEG) Connection
N
L1
L2
N
L2
L1
ConnectionType: Mono Phase
Single-phase measurement – 1PH
Mono Phase – MONOPHASE Connection
