For firmware IL-NT-AMF26P-2.0 and higher:

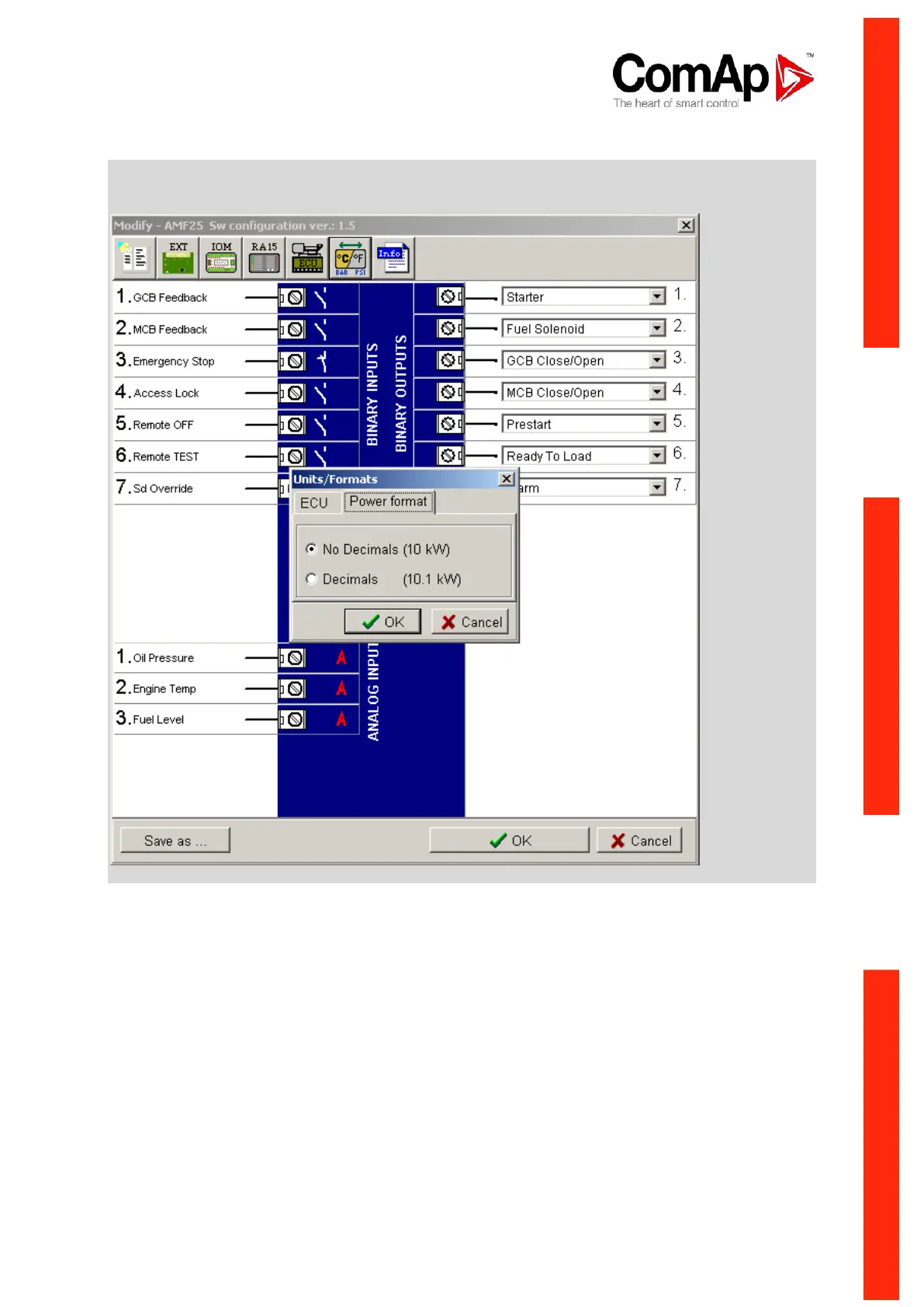

Decimal switching is not done via value of “CT ratio” setpoint, but in configuration window of LiteEdit
software via icon „Units/Formats“:
Power format switching is available from LiteEdit version 4.4.
EF CT Ratio [/1A]
Gen-set earth fault current transformer ratio.
Step: 1 A
Range: 1 – 2000 A / 1A
PT Ratio [/1]
Gen-set potential transformers ratio.
Step: 0,1 V / V
Range: 0,1 – 500,0 V / V
Vm PT Ratio [/1]
Mains potential transformers ratio.
