Cub Cadet 7360SS User Manual

142

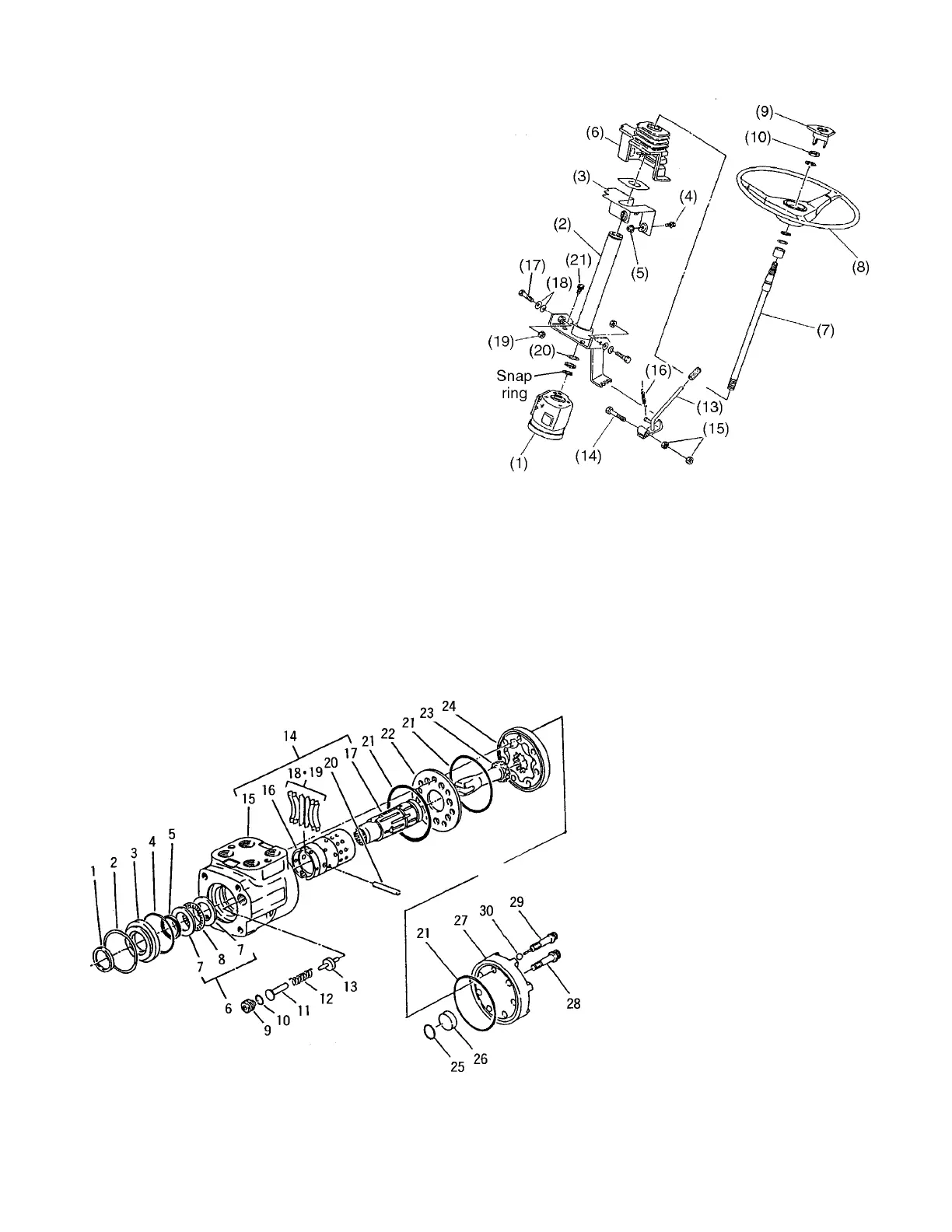

(2) STEERING WHEEL DISASSEMBLING
1. Remove steering unit fixing bolts and remove
steering unit (1) from column.
2. Remove cap (9) , nut (10) and washer and
remove steering wheel (8) from shaft (7).
3. Remove boot (6) with plate (3) and remove
snap ring , liner (20) and shaft (7) from
column (2).
9-2. STEERING UNIT DISASSEMBLING
(1) STEERING UNIT REMOVAL
Remove steering unit fixing bolt and remove
steering unit from column.
(2) STEERING UNIT DISASSEMBLING
(1)DUST SEAL
(2)RETAINING NUT
(3)SEAL GRAND BUSHING
(4)O-RING
(5)OIL SEAL (X-RING)
(6)NEEDLE BEARING KIT
(7)RELEASE BEARING
(8)THRUST NEEDLE
(9)RELIEF VALVE ADJUSTER
(10)O-RING
(11)COLER
(12)SPRING
(13)POPPET
(14)CONTROL PARTS ASSY
(15)HOUSING
(16)CONTROL SLEEVE
(17)CONTROL SLEEVE
(18)FLAT SPRING
(19)CENTERING SPRING
(20)PIN
(21)O-RING
(22)SPACER
(23)DRIVE
(24)ROTA SET
(25)O-RING
(26)SPACER
(27)END CAP
(28)RETAINER SCREW
(29)CHECK VALVE RETAINER SCREW
(30)BALL
