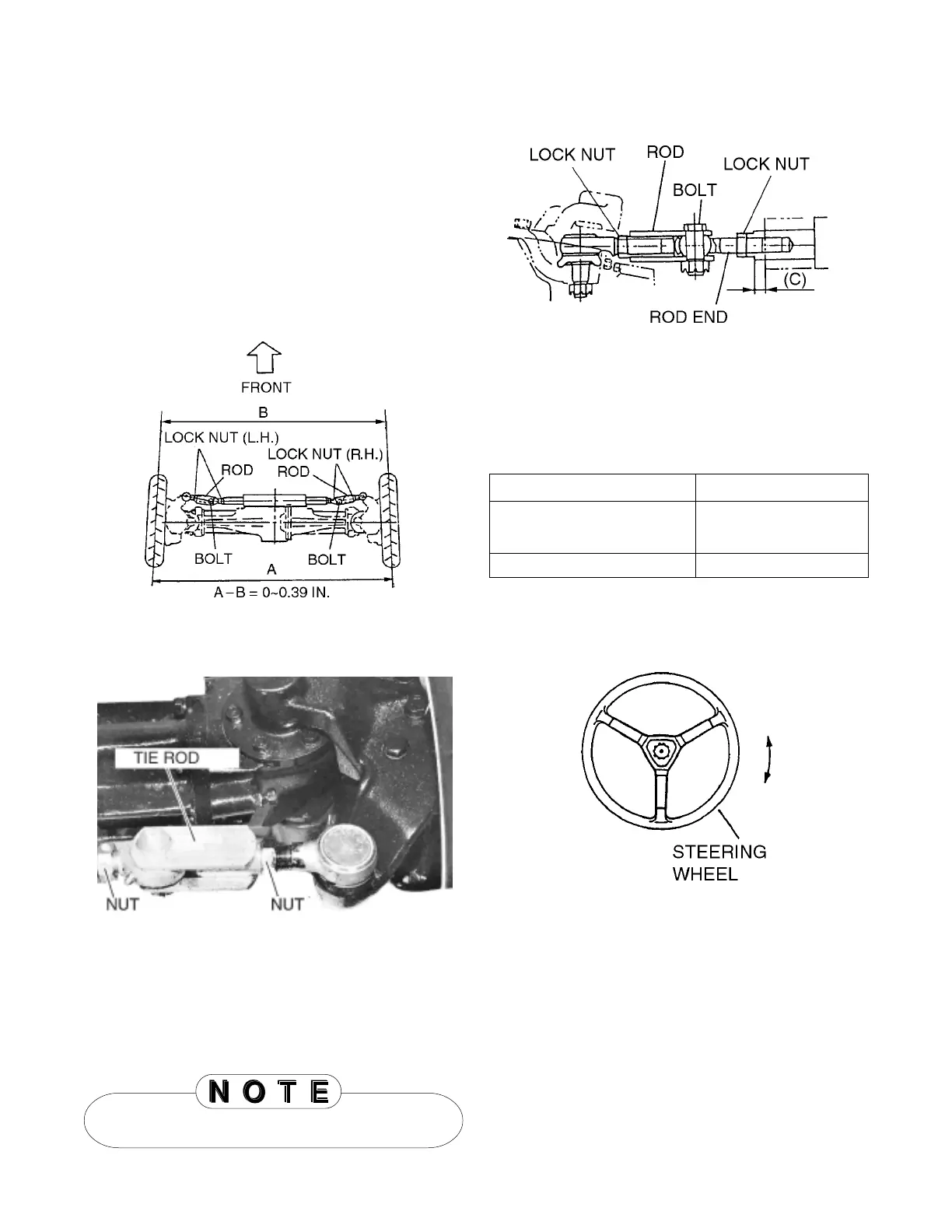

9-7. CHECK AND MAINTENANCE
(1) TOE-IN ADJUSTMENT
1. Set the tire pressure to [22.335 psi]
2. Set the front tire to straight ahead. Measure
the distance between left and right tire center
at front (B) and rear (A) side of tire.
Toe-in = A - B = [0~0.394 in.]
3. If toe-in is out of standard, readjust the toe-in
by adjusting the rod length.
4. For toe-in adjustment, turn the left side and
right side of rods to be equalized dimension C
and lock the lock nut..
Tightening torque of lock nut;
[108.50~122.96lbf•ft]
Bolt head of rod bolt should be set to upper side.
(2) STEERING WHEEL FREE PLAY
1. Measure the free play at out side of steering
wheel. Free play should be as shown below.
Item Standard value(in.)
Steering Wheel free play 1.18~3.15
when stopping engine.
at Engine 1000 r.p.m 0.79~1.18
In case that the free play exceeds above value,
check the oil leakage at cylinder and hoses, check
for air in the hydraulic line.
If no leakage and no air are found,check steering
unit.
