135
8-2. FRONT AXLE REASSEMBLING
*Reassemble front axle with reverse
procedure of disassembling.

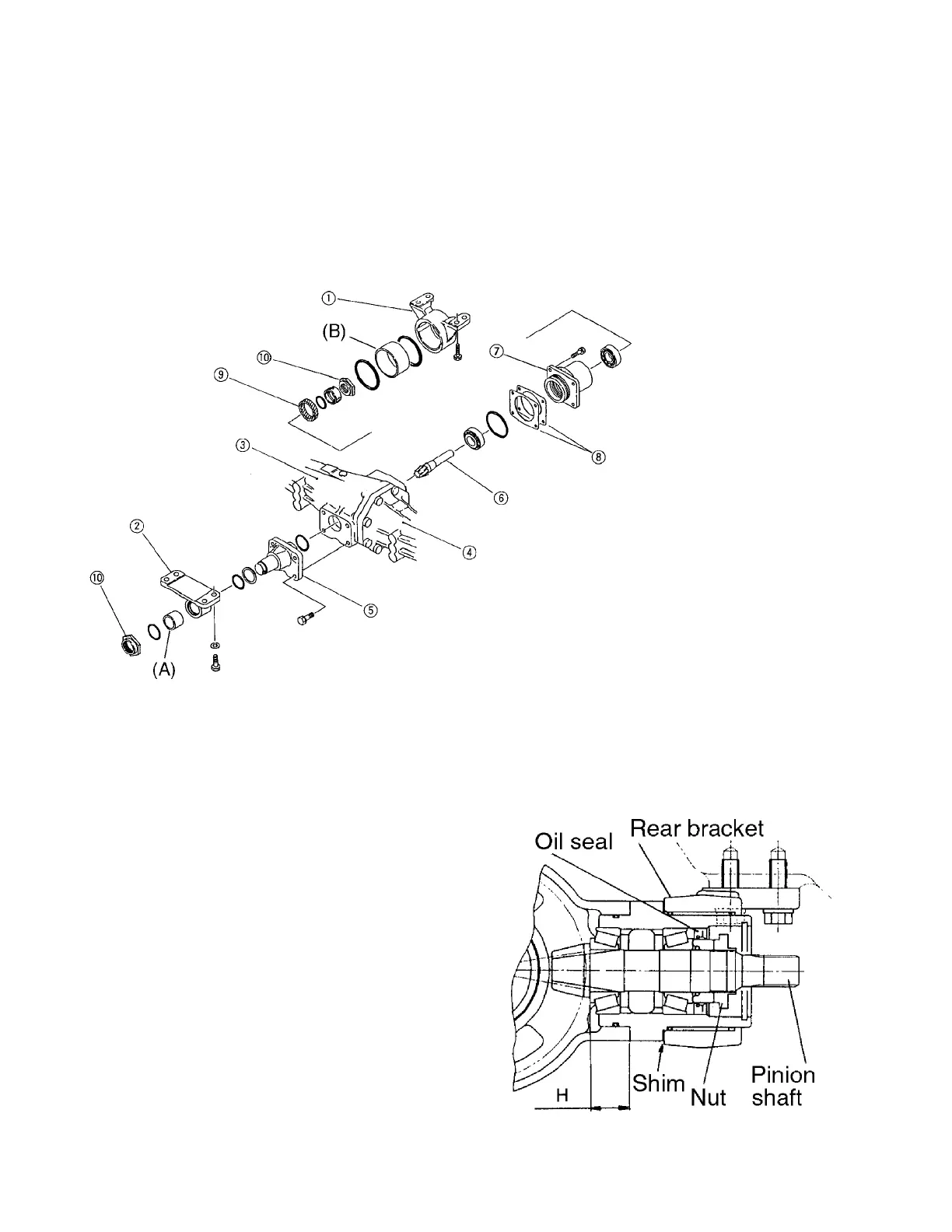

(1) FRONT AXLE ASSEMBLY
*Reassemble holder assy with reverse
procedure of disassembling.
*Use following values for adjustment and service
standard of reassembling.
1. Apply the lithium grease to o-rings for
assembling.
2. Adjust the turning torque of pinion shaft to
[6.51~8.68 lbf•ft] by tightening the nut.
3. Select the shim by calculating the shim
thickness as follows and install between axle
center case and holder.
Shim thickness = H - 28
*Special tool for bushing (A) and (B)
insullation.
Parts number MA-19619032000 for (A)
MA-19619031000 for (B)
(
1)REAR BRACKET
(2)FRONT BRACKET
(3)CENTER CASE R.H.
(4)CENTER CASE L.H.
(5)HOLDER
(6)PINION SHAFT
(7)BEARING CASE
(8)SHIM
(9)OIL SEAL
(10)NUT
To Next Page
