(3) COVER D REINSTALLATION
*Reinstall the cover D sub assy with
reverse procedure of removal.
Use following values as adjustment and
service standard for reassembling.

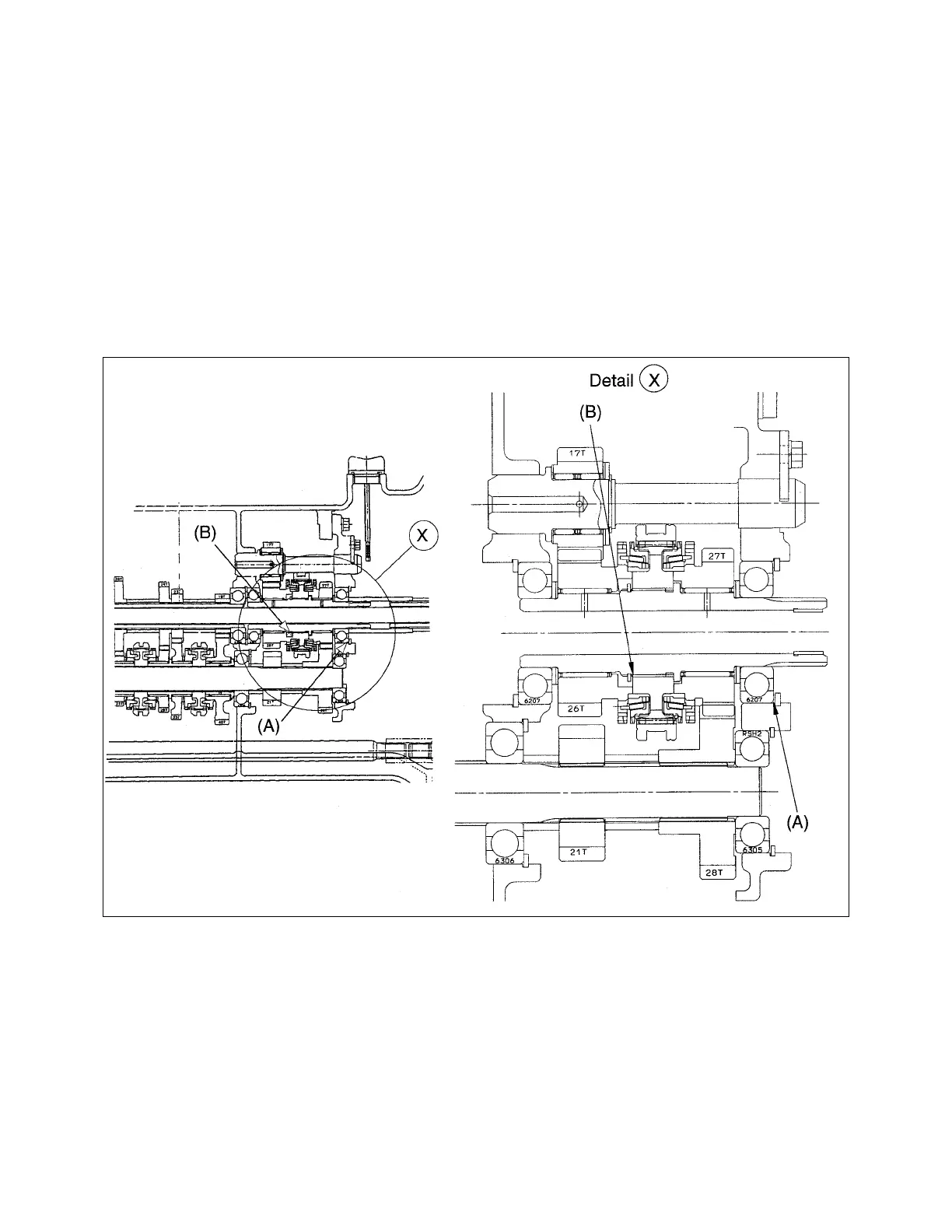

1. Shuttle Shaft
1) Adjust the endplay at (A) and (B) to
[0.002~0.079in.] by shim.
2. Shuttle linkage.
Adjust the wire length. (See page 16)
(4) COVER D SUB ASSY REASSEMBLING
*Reassemble the cover D sub assy with
reverse procedure of dis assembling.
