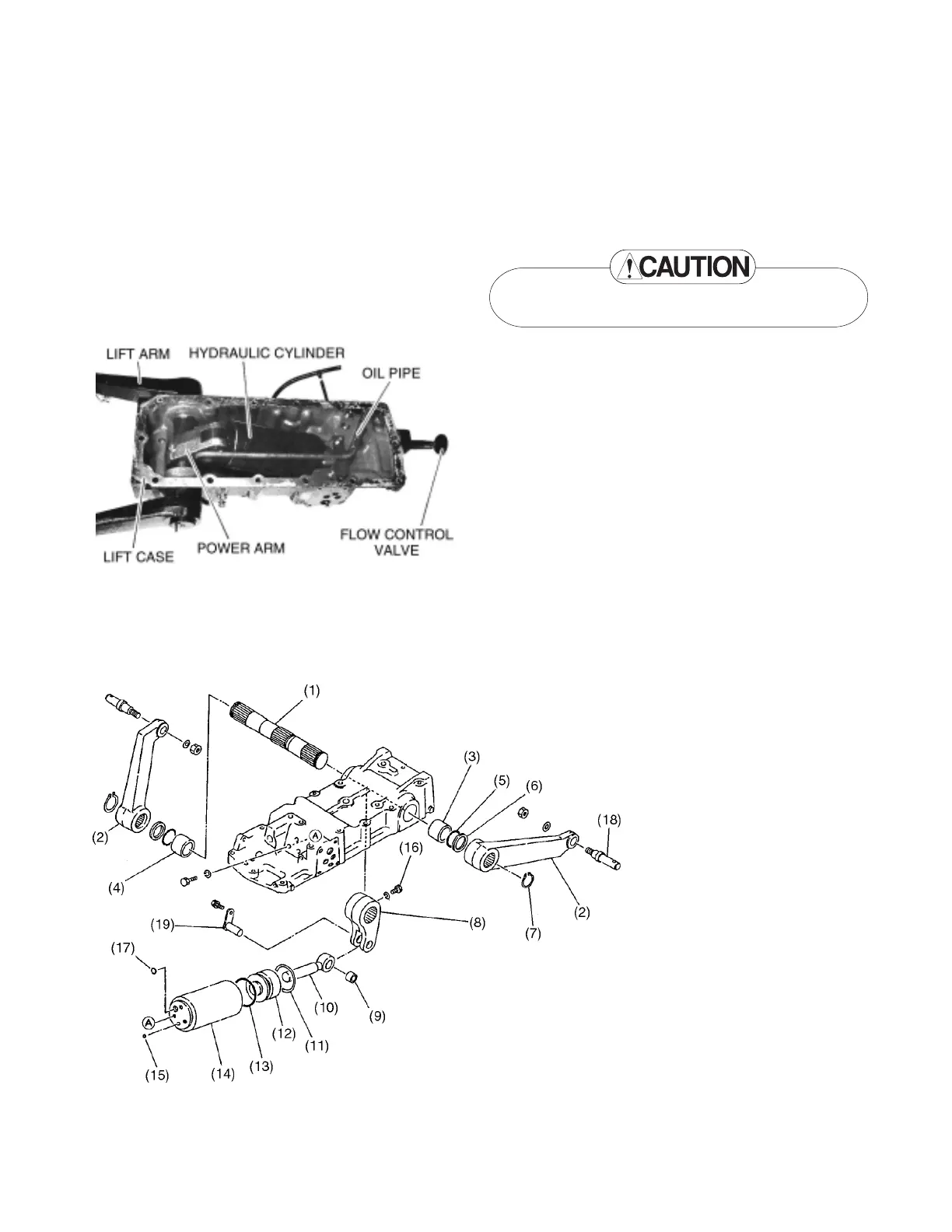

10-2. HYDRAULIC LIFT DISASSEMBLING
(1) LIFT SHAFT AND CYLINDER
DISASSEMBLING
1. Cylinder disassembling
1) Remove fixing bolt of pin (19) and remove pin
(19), piston rod (10).
2) Remove fixing bolts of cylinder (14) and
remove cylinder (14). Remove piston (12).
2. Lift shaft disassembling
1)
Remove snap rings and remove lift arms (2).
2) Remove colors (6) and o-rings (5).
3) Remove set bolt and washer at power
arm (8) and remove lift shaft (1) with
bushing (3).
Do not hit shaft with hammer for removal.
(1)SHAFT
(2)LIFT ARM
(3)BUSHING
(4)BUSHING
(5)O-RING
(6)COLER
(7)SNAP RING
(8)POWER ARM
(9)BUSHING
(10)PISTON ROD
(11)BACK UP RING
(12)PISTON
(13)O-RING
(14)HYDRAULIC CYLINDER
(15)STEEL BALL
(16)SET BOLT
(17)O-RING
(18)LIFT ARM PIN
(19)PIN
