(2) TIMING GEAR•FLYWHEEL
1.Flywheel removal
(1)Have someone hold the crankshaft pulley
with a wrench to prevent the flywheel
from rotating.
(2)Remove one of the bolts that hold the
flywheel in position.
(3)Install a safety bar(M12x1.25)into the
threaded hole in the flywheel from which
the bolt was removed in Step(2). Remove
the remaining bolts.
(4)Hold the flywheel by hands and withdraw
it from the crankshaft. Joggling the
flywheel back and forth will facilitate
removal.
When removing the flywheel, wear heavy
gloves to avoid hand injury.

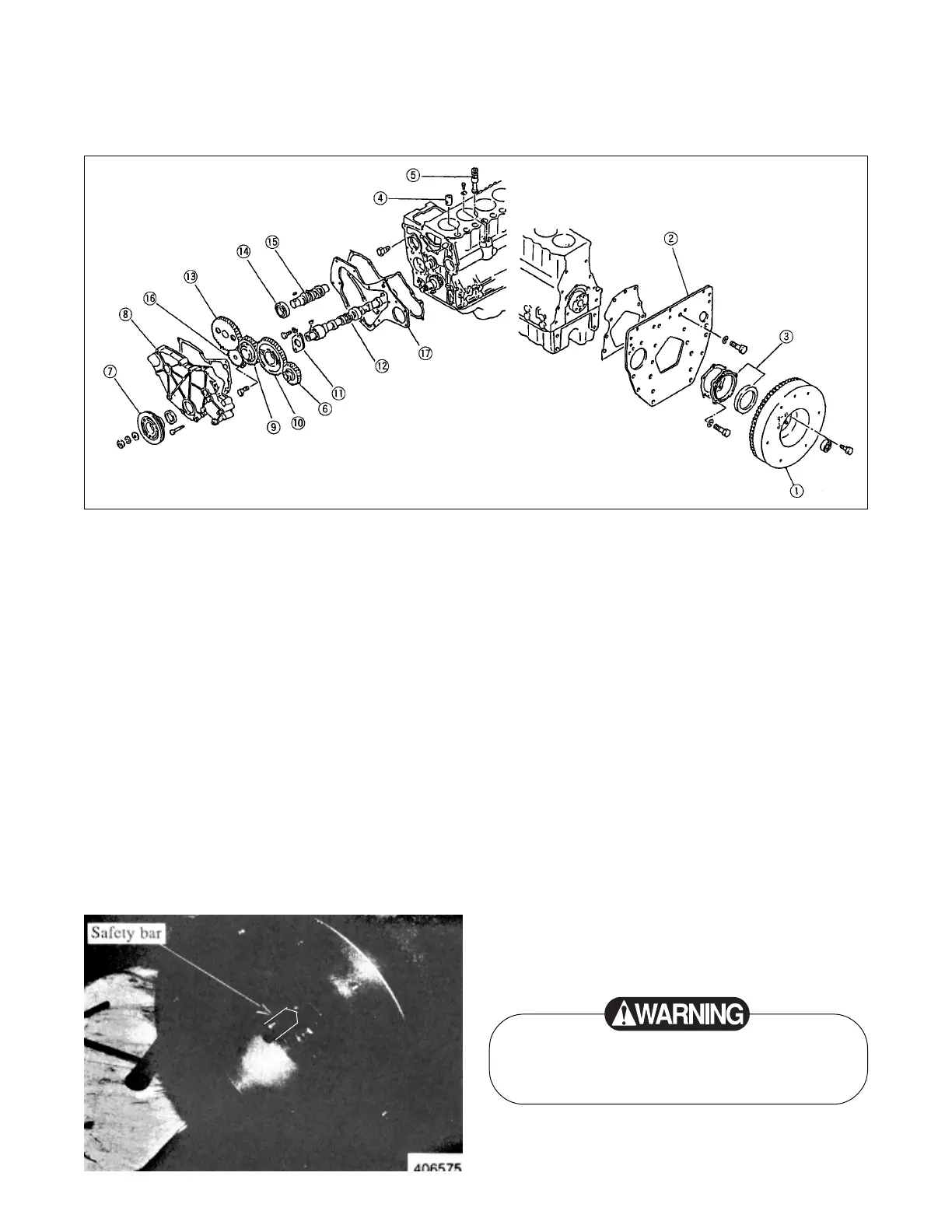

(1) Flywheel (8) Timing gear case (13) Pump camshaft gear
(2) Rear plate (9) Idler gear (14) Bearing
(3) Oil seal case (10) Valve camshaft gear (15) Pump camshaft
(4) Tappet (11) Thrust plate (16) Oil pump
(5) Speedometer driven gear (12) Valve camshaft (17) Front plate
(6) PTO gear
(7) Crankshaft pulley
